tem. They are located under right side of dash panel.
FUSES
OPEN —
LIGHTS & HORN 10A
IGNITION
7.5A
DASH
7.5A
Figure 31
1. Fuse block
JUMP STARTING PROCEDURE
1. Loosen knobs securing battery cover to battery
base and slide cover off.
2. Connect a jumper cable between the positive
posts of the two batteries. The positive post may
be identified by a “+” sign on top of battery
cover.
Figure 32
1. Positive (+) cable
3. Connect one end of the other jumper cable to the
negative terminal of the battery in the other vehi-
cle. The negative terminal has “NEG” on the
battery cover. Do not connect the other end of
the jumper cable to the negative post of the dis-
charged battery. Connect it to the engine. Do not
connect the jumper cable to the fuel system.
4. Start the engine in the vehicle providing the
jump start. Let it run a few minutes, then start
your engine.
5. Remove the negative jumper cable first from
your engine, then the battery in the other vehicle.
6. Reinstall battery cover to battery base and tight-
en knobs.
33
➀
Jump starting can be dangerous. To avoid personal
injury or damage to electrical components in the
vehicle, observe the following warnings:
• Never jump start with a voltage sources greater
than 15 volts D.C. This will damage the electri-
cal system.
• Never attempt to jump start a discharged bat-
tery that is frozen. It could rupture or explode
during jump starting.
• Observe all battery warnings while jump start-
ing your vehicle.
• Be sure your vehicle is not touching the jump
start vehicle.
• Connecting cables to the wrong post could
result in personal injury and/or damage to the
electrical system.
WARNING

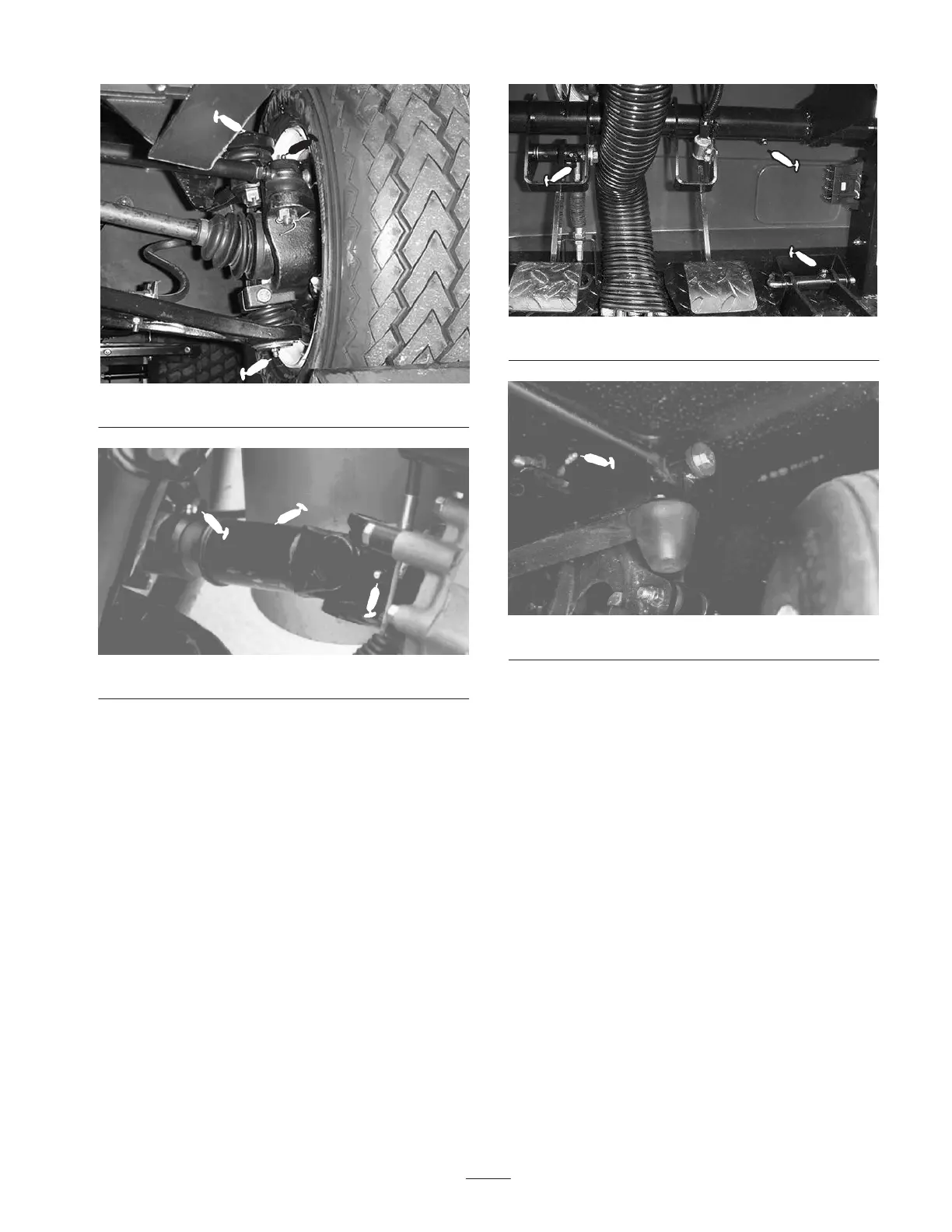

Maintenance
➀
