Type: 4-wheel step-through, out-front operator style,
two-person vehicle. Certified to meet ANSI
Specifications B56.8-1988.
Engine: Kohler 4-cycle, air-cooled, 16.4 kV @ 3600
rpm, 624 cc displacement. Mechanical fuel pump,
1.9 liter oil capacity. Large capacity dual element air
cleaner.
Battery: 12 volt with 370 cold-cranking Amps @
–18° C (0 degrees F.)
Fuel System: Fuel tank capacity is 26.5 l (7 gal-
lons).
Transmission: Rear transaxle configuration, twin
axle drive. 3-speed synchromesh, H-shift pattern
with high-low range providing 6 forward and 2
reverse speeds. Manual engage differential lock.
Clutch: 17 cm (6.7 inch) clutch and pressure plate.
Frame: Welded, high-strength steel channels and
tubes.
Front Suspension: Independent “A” frame control
arm, dual coil springs and dual shock absorbers with
anti-sway bar.
Rear Suspension: DeDion axle (weight carrying
axle is independent of transaxle), leaf spring and
dual shock absorbers.
Steering System: Power assist, 3-position tilt steer-
ing wheel, 3-3/4 turns lock-to-lock. 17.5 to 1 ratio,
34.3 cm (13.5 inch) diameter steering wheel.
Tires:
Front tires: 50.8 x 25.4 cm (20” x 10”)-10, 4-ply rat-
ing, rib tread.
Rear tires: 58.4 x 26.7 cm (23” x 10.5”)-12, 6-ply
rating, turf tread.
Optional rear tires: 61 x 38 cm (24" x 13") x 12, 4-
ply rating, turf tread.
Brakes: 4-wheel hydraulic, dual safety circuit self-
adjusting drum: 17.8 (7”) diameter front, 20.3 (8”)
diameter rear. Hand-actuated parking brake actuates
rear brake shoes.
Roll Over Protection System: 2-post roll over pro-
tection structure with shoulder restraint.
Hydraulics: 4 gpm pressure balanced gear pump
provides hydraulic flow for power steering, lift and
optional remote hydraulics. Lift control valve and
dual cylinders for lifting dump box. Transaxle is
used for reservoir for hydraulic system. 7.6 l capaci-
ty. Spin-on 25-micron hydraulic oil filter. 100 mesh
strainer in transaxle.
Seat: Twin molded cushions and backrests, with
shoulder and hip restraints.

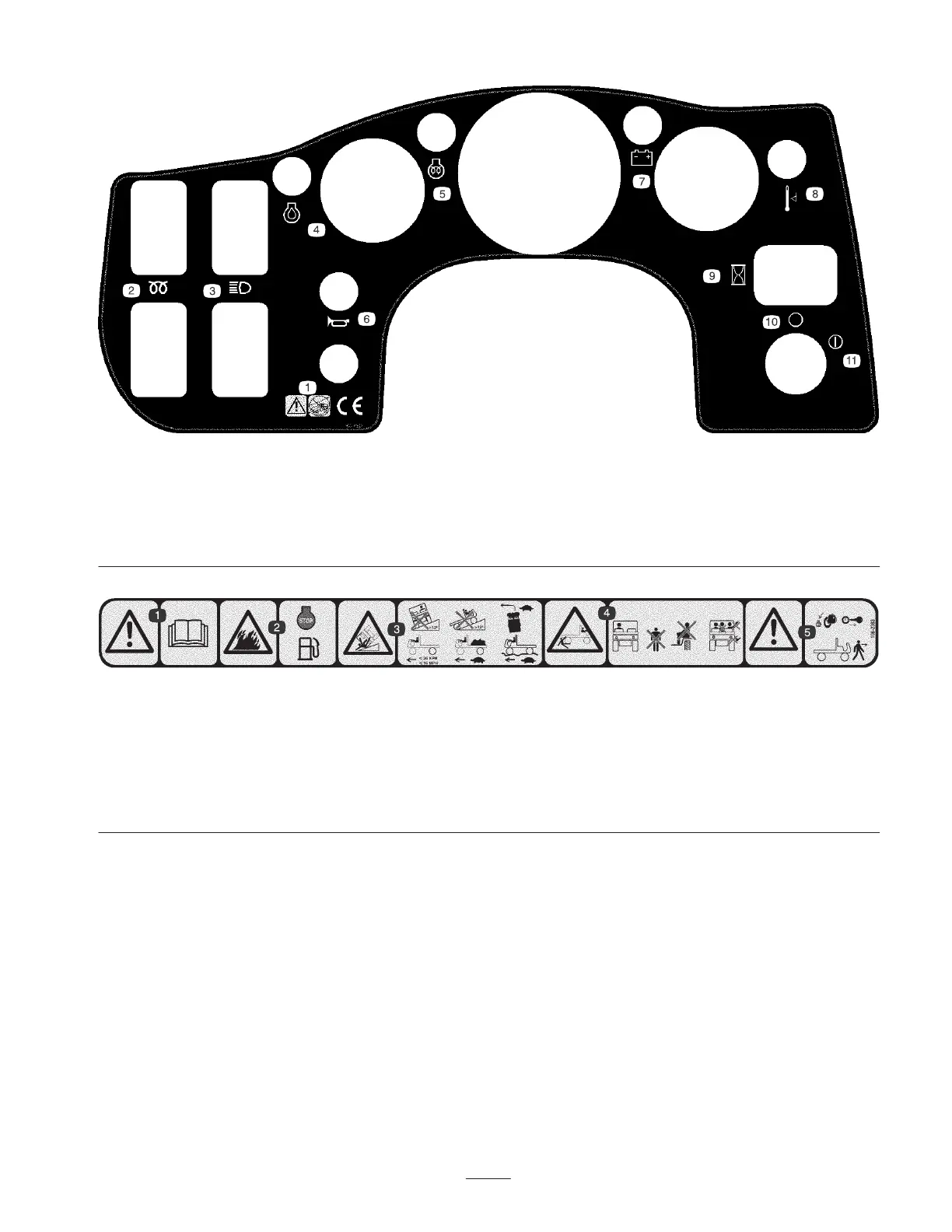

Controls: Foot-operated accelerator, clutch and
brake pedals. Hand -operated shifter, differential
lock, parking brake, high-low range shifter, hydraulic
lift and tilt steering levers. Ignition switch, light
switch, horn button, and 3rd high lockout switch.
Gauges: Hour meter, warning light and fuel gauge.
Tachometer optional.
Lights: Twin halogen headlights and single taillight.
Rear stop light.
Interlocks: Clutch pedal must be depressed to start
engine.
Ground Speed:
Forward Speeds with 58 cm (23”) Tires-
High range: 11,7/21.9/37 kmh (7.3/13.6/23
mph)
Low range: 4.5/8.5/14.5 kmh (2.8/5.3/9 mph)
Reverse Speeds with 58 cm (23”) Tires-
High range: 11.1 kmh (6.9 mph)
Low range: 4.3 kmh (2.7 mph)
General Specifications (approx.):
Base Weight:Dry w/o flatbed 475.9 kg (1275 lbs.)
Rated Capacity: 1117 kg*(2,725 lbs).
*includes 74.6 (200 lb.) operator and 74.6 (200 lb.)
passenger and loaded attachment.
Maximum. Gross Vehicle Weight:1,493 kg (4,000
lbs.)
Tow Capacity
Tongue weight 74.6 kg (200 lbs.)
Maximum trailer weight 560 kg (1,500 lbs.)
9
Specifications
