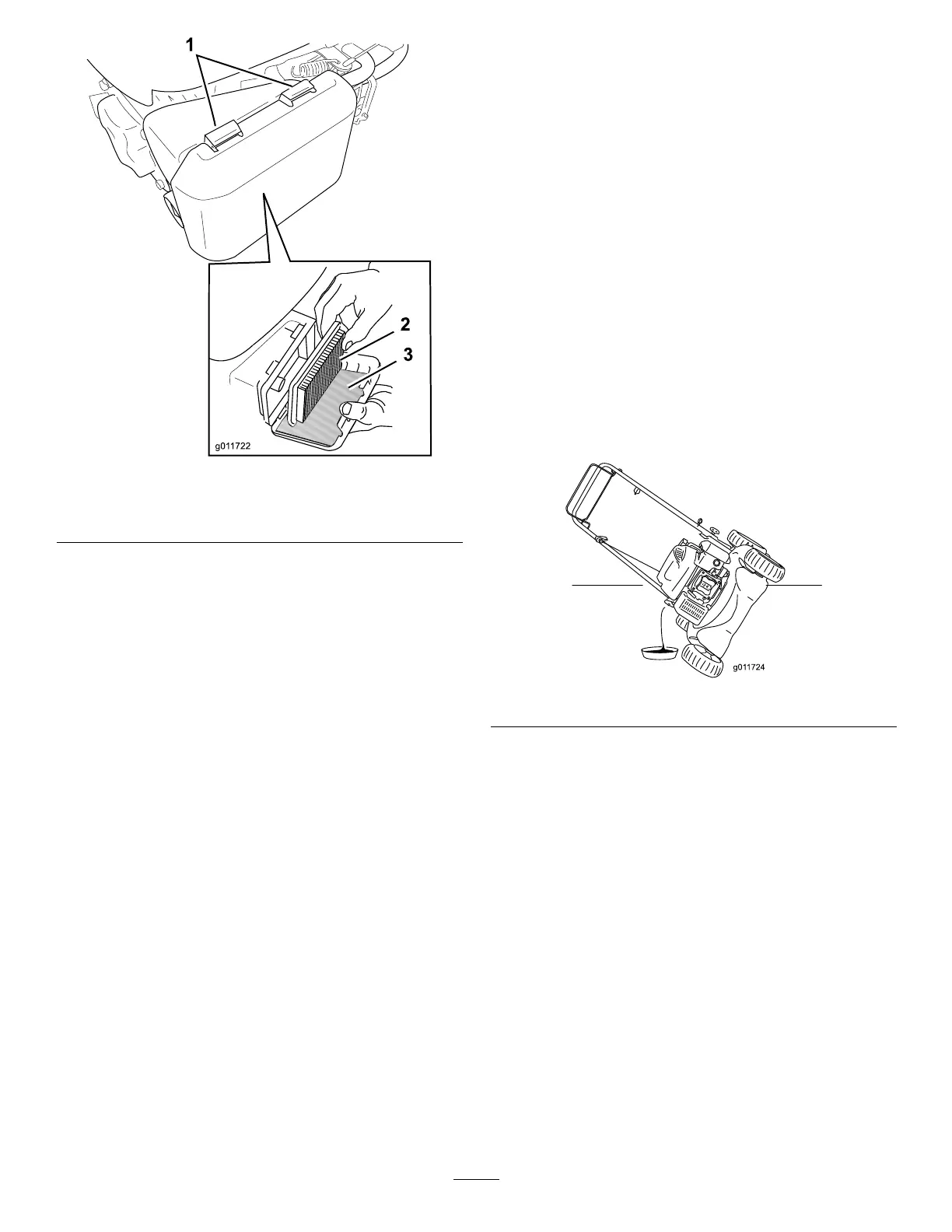

Figure20
1.Latchtabs
3.Foampre-lter
2.Paperairlter
2.Openthecover.
3.Removethepaperairlterandthefoampre-lter
(Figure20).
4.Inspectthefoampre-lter,andreplaceitifitis
damagedorexcessivelydirty.
5.Inspectthepaperairlter.
A.Ifthepaperairlterisdamagedoriswetwithoil
orfuel,replaceit.
B.Ifthepaperairlterisdirty,tapitonahard
surfaceseveraltimesorblowcompressedairless
than30psi(207kPa)throughthesideofthe
lterthatfacestheengine.
Note:Donotbrushthedirtoffthelter;
brushingforcesdirtintothebers.
6.Removedirtfromtheaircleanerbodyandcover
usingamoistrag.Donotwipedirtintotheair
duct.
7.Insertthefoampre-lterandthepaperairlterinto
theaircleaner.
8.Installthecover.
ChangingtheEngineOil
ServiceInterval:Aftertherst5hours
Yearly
1.Ensurethatthefueltankcontainslittleornofuelso
thatfueldoesnotleakoutwhenyoutipthemower
ontoitsside.
2.Runtheengineafewminutesbeforechangingthe
oiltowarmit.
Note:Warmoilowsbetterandcarriesmore
contaminants.
3.Disconnectthewirefromthesparkplug.Referto
PreparingforMaintenance.
4.Removethedipstick.
5.Tipthemowerontoitsside,withthedipstickdown,
todraintheusedoiloutthroughtheoillltube
(
Figure21).
Figure21
6.Returnthemowertotheoperatingposition.
7.Slowlypouroilintotheoilllhole,waitafew
minutes,andchecktheoillevelonthedipstickby
wipingthedipstickcleanandtheninserting,butnot
screwingin,theoilllcapintothehole.
Note:Max.ll:20oz.(0.59l),type:SAE30
orSAE10W-30detergentoilwithanAPIservice
classicationofSF,SG,SH,SJ,SL,orhigher.
Note:Filltheenginecrankcasewithoiluntilthe
dipstickindicatesthattheengineoilleveliscorrect
asshownin(
Figure22).Ifyouoverlltheengine
withoil,removetheexcessoilasdirectedin
5.
