Toro 22602THD User Manual

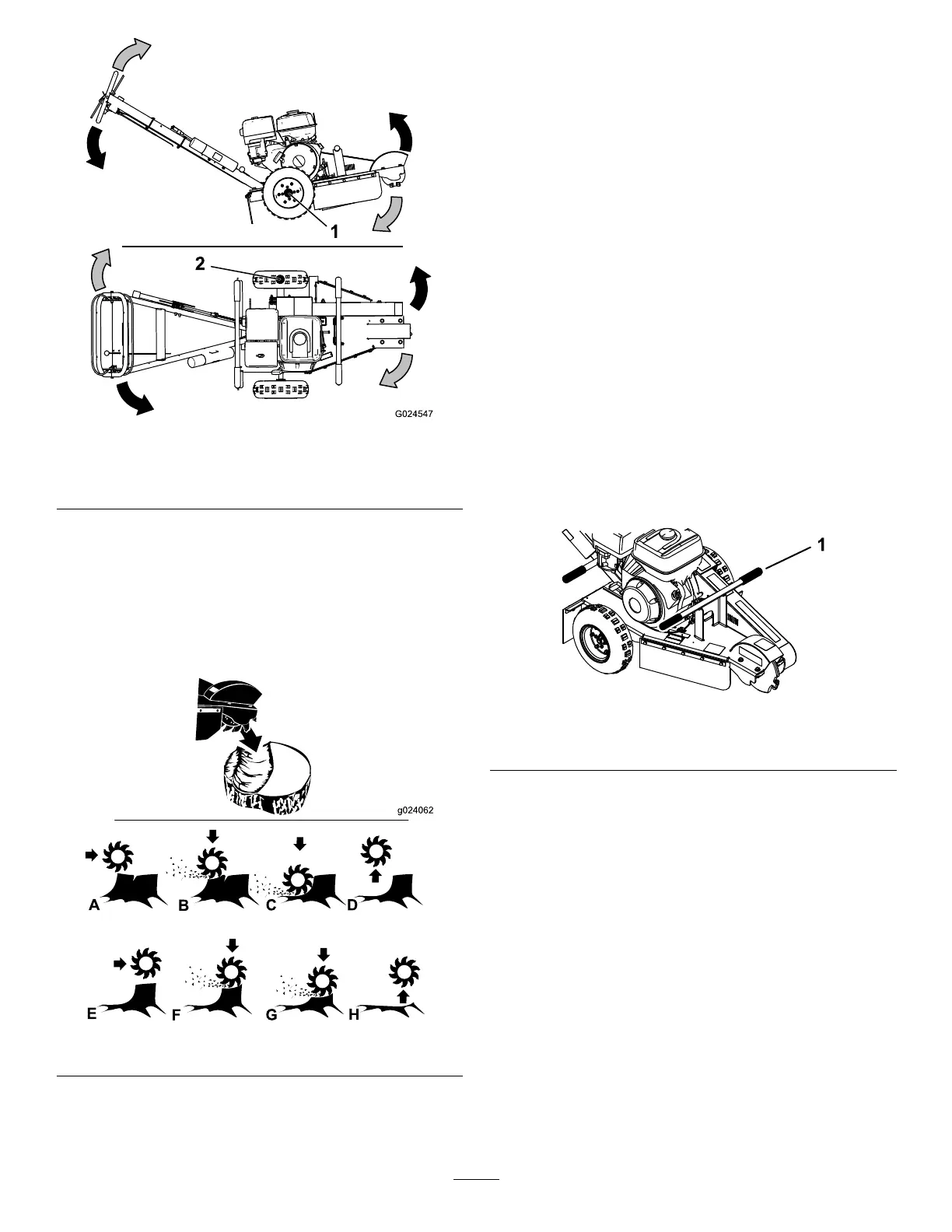

g024547
Figure9
1.Pivotpoint2.Pivotpointwhenthe
parkingbrakeisengaged
3.Movethemachinetothefrontofthestumpand
engagetheparkingbrake.
4.MovethrottleuptotheENGAGEposition.The
cuttingwheelwillbeginrotating.
5.Swingthecuttingwheelto1side(Figure9),
thenloweritapproximately1to2.5cm(1/2to1
inch)intothefront-topcornerofthestump.
g024062
Figure10
6.Usingasweepingmotion,swingthecutting
wheelbackandforth,loweringthecuttingwheel
approximately1to2.5cm(1/2to1inch)before
eachsweep,untilyouhaveremovedthefront
portionofthestumptogroundlevel(Athrough
DinFigure10).
7.Raisethecuttingwheel,releasetheparking
brake,andmovethemachineforwardafew
centimeters(inches).Engagetheparkingbrake.
8.Repeatsteps5and7untilyouhavecompletely
removedthestump(EthroughHinFigure10).
9.MovethrottletotheDISENGAGEposition,push
thehandledownenoughtoraisethecutting
wheelofftheground.Waitforthecuttingwheel
tostoprotatingthenreleasetheparkingbrake
andpullthemachineawayfromthestump.
Note:Donotletthefrontofthemachinetouch
thegrounduntilthecuttingwheelhasstopped
turning.
10.Shutofftheengine;refertoShuttingOffthe
Engine(page10).
LiftingtheMachine
UsethehandlesshowninFigure11asliftpoints.
g205090
Figure11
1.Lifthandle(4)
11
