BrakeMaintenance
AdjustingtheParking
Brake
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Loosenthesetscrewonthesideofthe
brake-leverknob.Turntheknobclockwiseto
tightenthebrake;turntheknobcounterclockwise
toloosenthebrake.
Note:Theleftwheelshouldlockcompletely
whenyouengagethebrake.
4.Tightenthesetscrew.
BeltMaintenance
AdjustingtheDrive-Belt
Tension
ServiceInterval:Beforeeachuseordaily
Note:Inspectthedrivebeltthroughtheslotontopof
thebeltcover.Adjustasrequired.
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Loosenthe2boltssecuringthebeltguardto
machineuntilyoucanremovethebeltguard
(Figure24).
Note:Theboltsandwasherswillremain
attachedtothebeltguard.

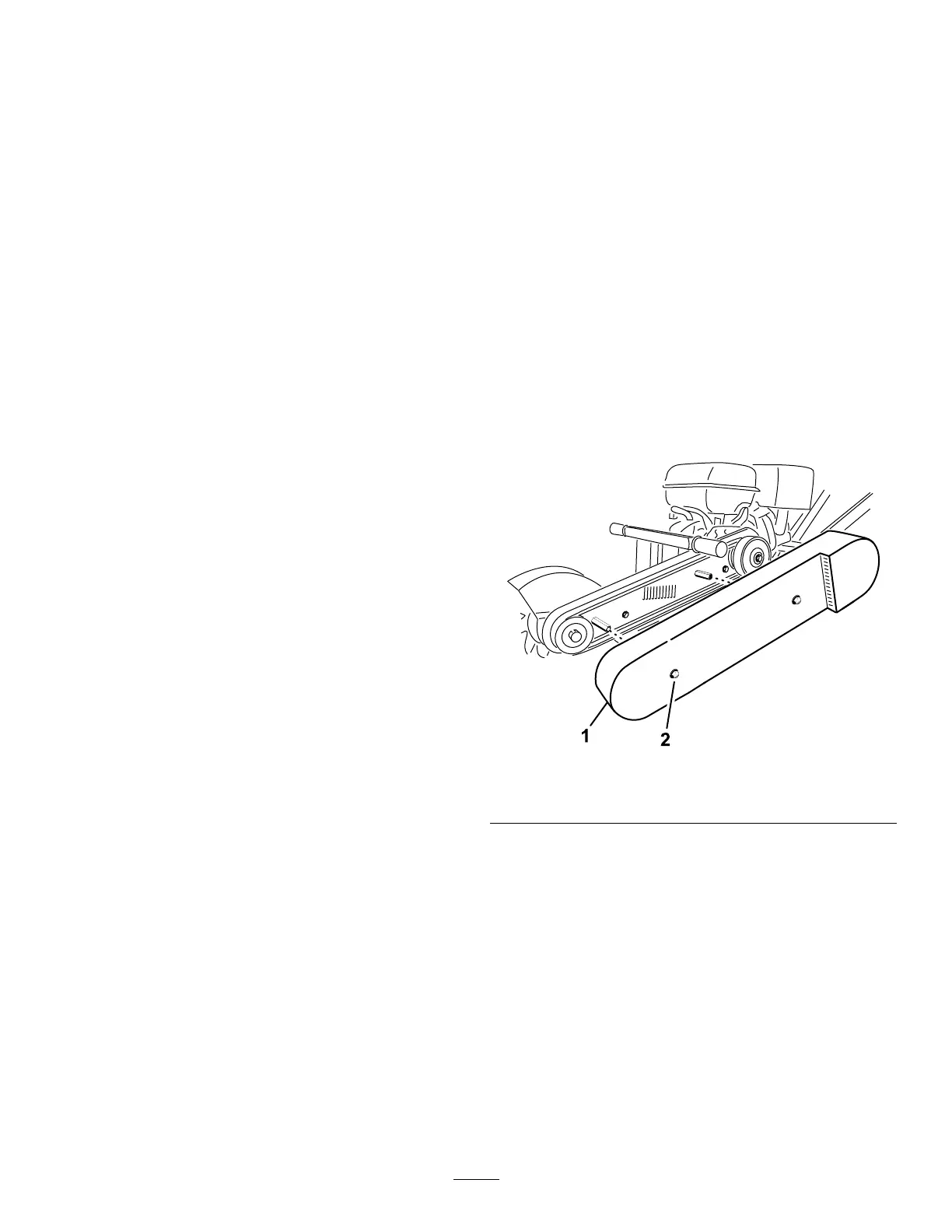

g205161
Figure24
1.Beltguard
2.Boltandwasher(2)
4.Removethebeltguard(Figure24).
5.Loosenthe4engine-platemountingboltsand
the2boltssecuringtherearofthebeltguardto
theengine(Figure25andFigure26).
