Toro 23208 - Replacing the Fuel Filter; Electrical System Maintenance; Servicing the Battery

ReplacingtheFuelFilter
ServiceInterval:Every200hours
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowerthehydrauliclift.
2.Shutofftheengineandremovethekey.
g242257
g033082

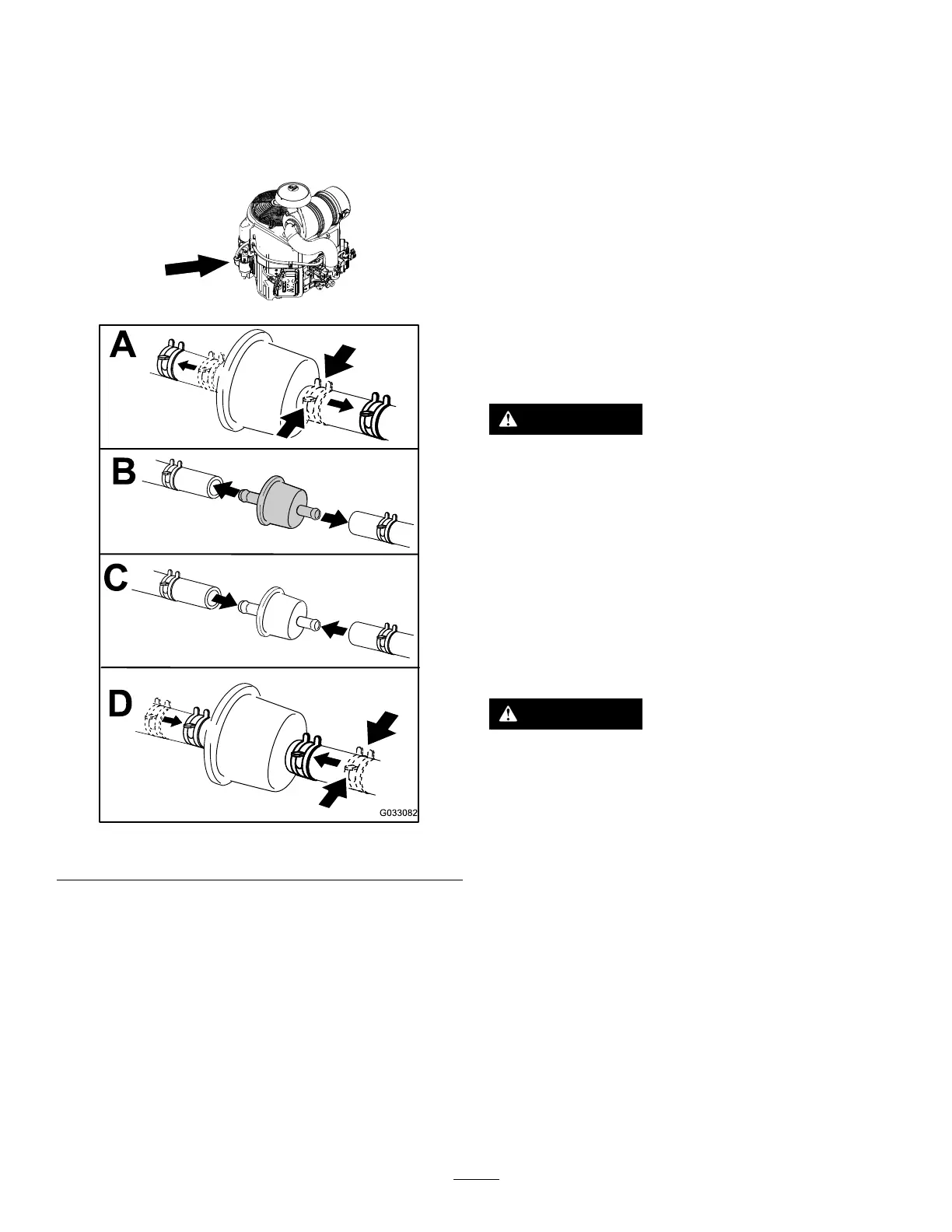

Figure36
ElectricalSystem
Maintenance
ServicingtheBattery
ServiceInterval:Every25hours—Checkthebattery
electrolytelevel.
Alwayskeepthebatterycleanandfullycharged.Use
apapertoweltocleanthebatterycase.Ifthebattery
terminalsarecorroded,cleanthemwithasolutionof
4partswaterand1partbakingsoda.Applyalight
coatingofgreasetothebatteryterminalstoreduce
corrosion.
Voltage:12Vwith300A(coldcranking)at-18°C
(0°F).
WARNING
Incorrectbatterycableroutingcoulddamage
themachineandcables,causingsparks.
Sparkscancausethebatterygassesto
explode,resultinginpersonalinjury.
•Alwaysdisconnectthenegative(black)
cablebeforedisconnectingthepositive
(red)cable.
•Alwaysconnectthepositive(red)cable
beforeconnectingthenegative(black)
cable.
WARNING
Batteryterminalsormetaltoolscouldshort
againstmetalcomponents,causingsparks.
Sparkscancausethebatterygassesto
explode,resultinginpersonalinjury.
•Whenremovingorinstallingthebattery,
donotallowthebatteryterminalstotouch
anymetalpartsofthetractionunit.
•Donotallowmetaltoolstoshortbetween
thebatteryterminalsandmetalpartsofthe
tractionunit.
RemovingtheBattery
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowerthehydrauliclift.
2.Shutofftheengineandremovethekey.
3.Lifttheblackrubbercoveronthenegativecable.
Disconnectthenegativebatterycablefromthe
negative(-)batteryterminal(Figure37).
