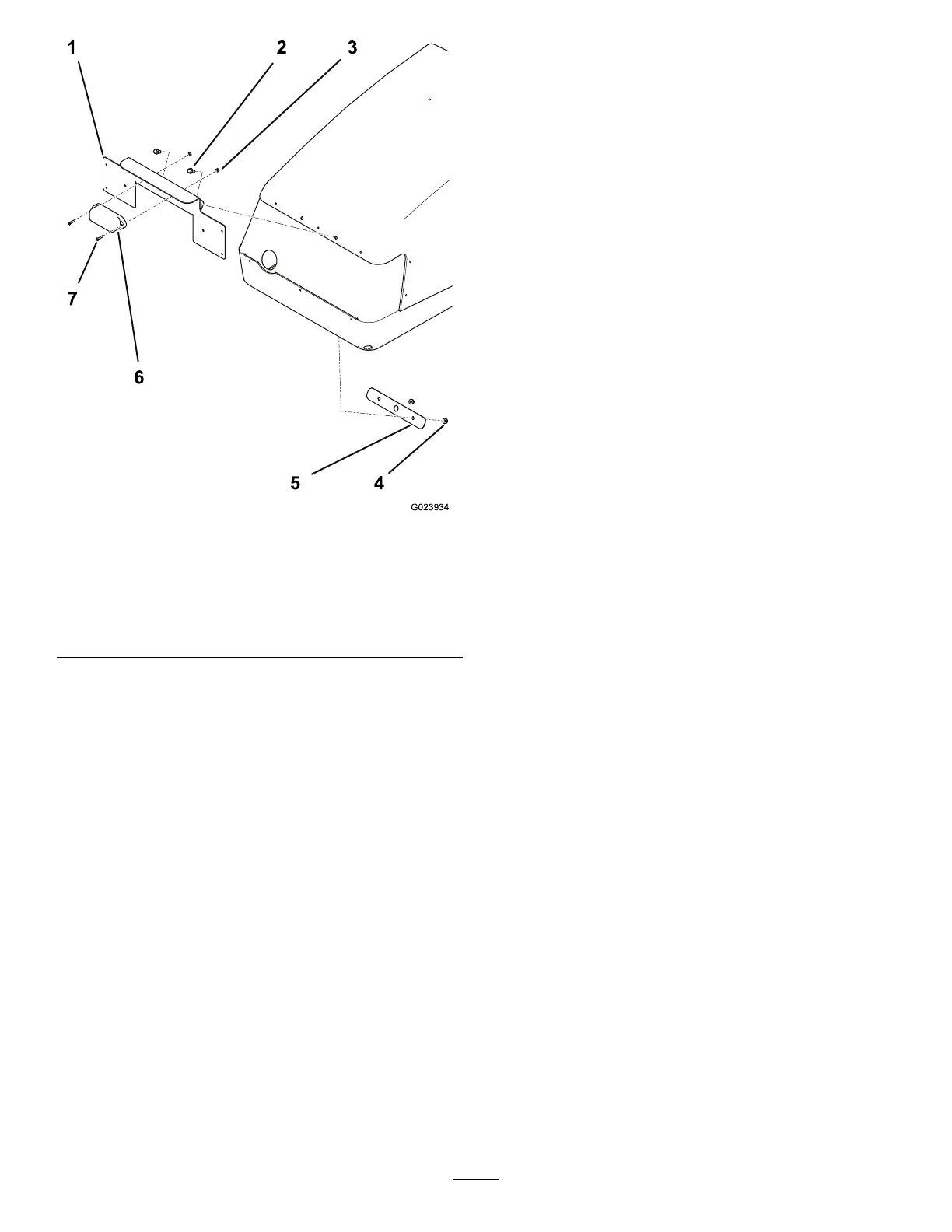

Figure2
1.Registrationplatebracket5.Backingbracket
2.Flange-headscrew,5/16
x3/4inch
6.Platelight
3.Nut,#107.Screw,#10x7/8inch
4.Flangenut,5/16inch
4.Mounttheregistrationlightplateassemblytotherear
ofthehoodwith(2)5/16x3/4inchange-head
screws,5/16inchangenuts,andthebackingbracket
(Figure2).
5.Locatethebundleofwiresecuredtotheexistinglight
kitwireharness.
6.Routetheharnesstotheplatelight,andplugthebullet
connectorsintothelight.
Important:Makesurethatthewiresareclearof
allhot,sharp,ormovingcomponents.
7.Checktheoperationoftheregistrationplatelight.The
platelightshouldilluminatewhenthelightsareturned
ONandthekeyisintheRUNposition.
2
