Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name
Description
Qty
1 A00-0006 TEKT-0074 Cabin Air Filter 2
2 A00-0016 TEKT-0075 Domelight LED 1
3 A00-0017 305-1002 Panto Mount Plate 1
4 A00-0025 BALL-LOUVER 2 1/2" Ball Louver 4
5 A00-0026 OSCILLATING-FAN Oscillating Fan 1
6 A00-0038 TEKT-0076 3" Plug 1
7 A00-0055 TEKT-0019 Fir Tree Fastener 2
8 A00-0070 REID-KBP-262-KBP-265 Knob, Knurled, 1/4" 6
9 A00-0071 LEFT-SWITCHPLATE-ASM Left Switchplate Assembly 1
10 A00-0072 TEKT-ASM-030 Right Switchplate Assembly, 2014 Update 1
11 A00-0073 FILTER-COVER Filter Cover 3
12 A00-0074 TEKT-ASM-004 Fuse Block Assembly 1
13 A00-0075 WWJ-MOTOR-ASM Front Wiper Motor, WWJ 1
14 A00-0076 TEKT-0026 1/4" Panel Nut 6
15 A00-0081 KUF2880-HEADLINER-REV1 Headliner 1
16 A00-0082 KUF2880-049 Headliner Upholstery 1
17 A00-0083 KUF2880-060 Front Filter Upholstery 1
18 A00-0120 BLADE_24 Wiper Blade, 24" 1
19 A00-0140 PANTO_ARM_20 Wiper Arm, 20" Panto 1

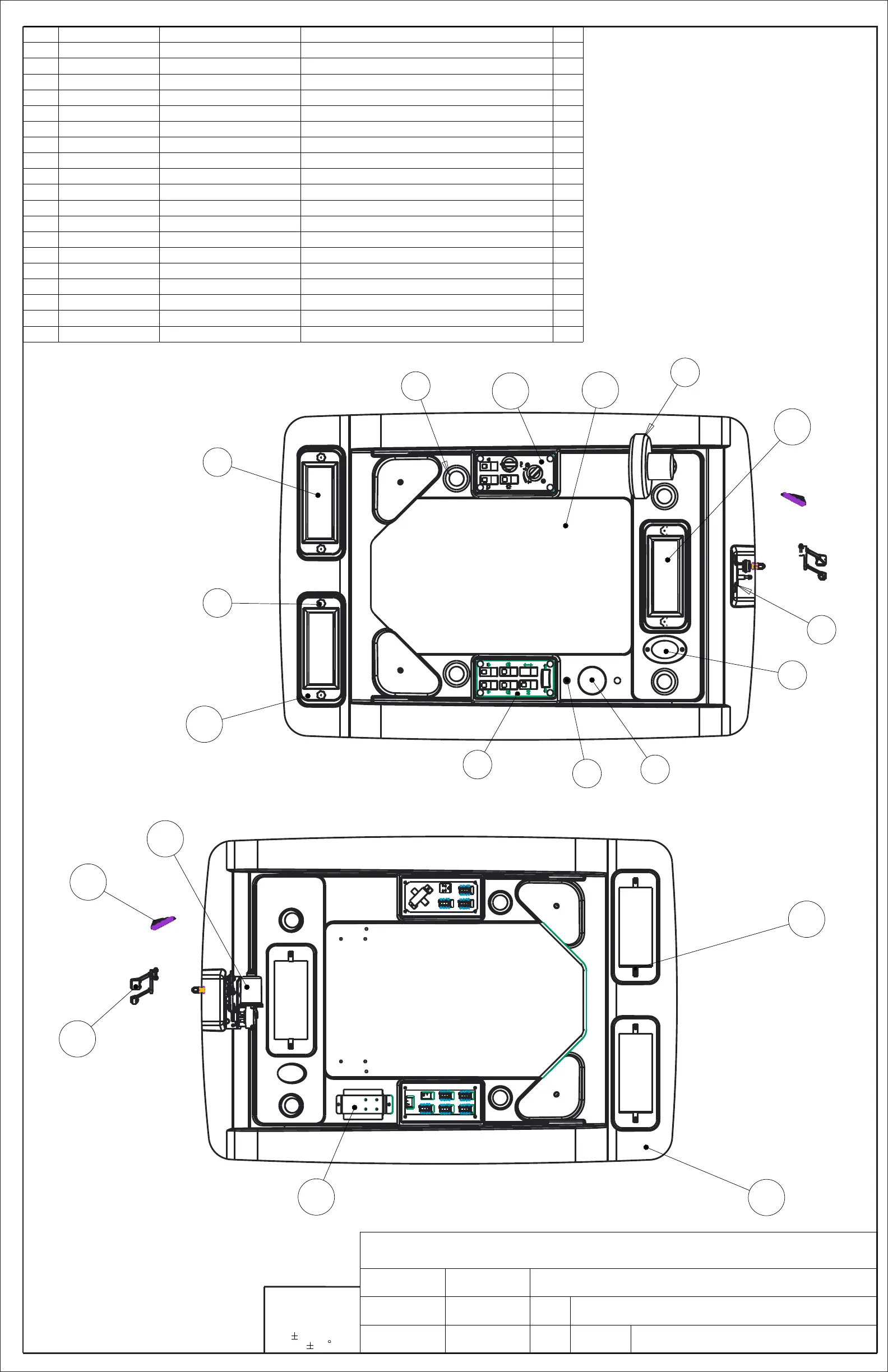

Headliner Assembly, Mowers
Daryl Furkalo
2014-01-02 Imp.
TEKT-ASM-032
B
SCALE 0.110
12
13
14
15
18
19
SCALE 0.110
1
2
16
17
3
4
5
6
7
8
9
10
11
