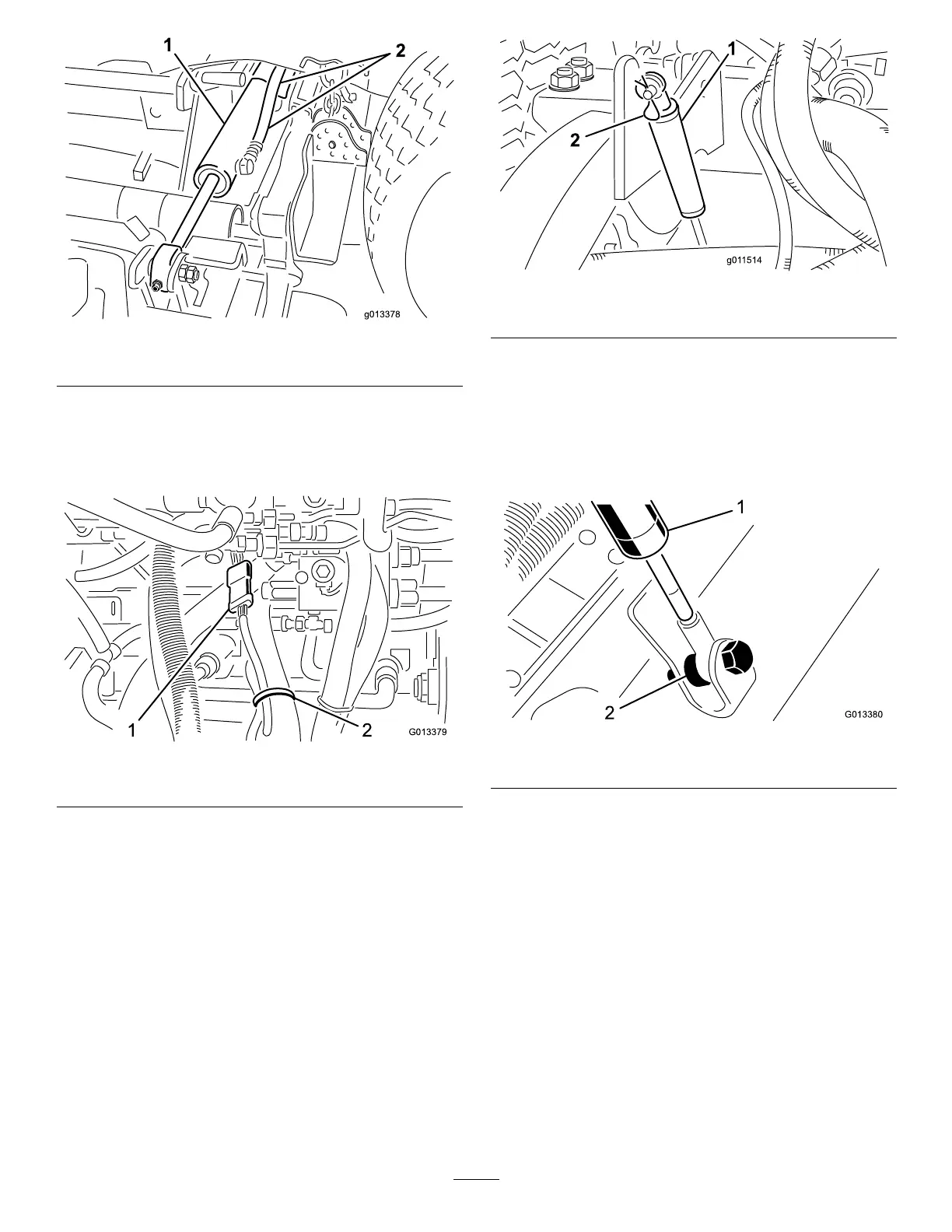

Figure3
1.Wingdeckliftcylinder
2.Hydraulichoses
5.Locateandunplugthecuttingunitwireharness
fromthetractionunitwireharness(
Figure4).Also,
removeanycabletiessecuringthecuttingunitwire
harnesstoanytractionunitcomponents.
Figure4
1.Wireharness
2.Cabletie
6.Removethehairpincotterssecuringthedampersto
thecuttingliftarms(Figure5).
Figure5
1.Damper2.Hairpincotter
7.Removethebolts,spacersandangenutssecuring
theotherendofthedamperstothecuttingunit
(Figure6).
Note:Makesurethespacerispositionedinfront
ofthedamperrodendwhenre–assemblingtothe
cuttingunit.
Figure6
1.Damper
2.Bolt,spacerandangenut
8.Removethehairpincottersandclevispinssecuring
theheight-of-cutchainstotherearofthecutting
unit(Figure7).
2
