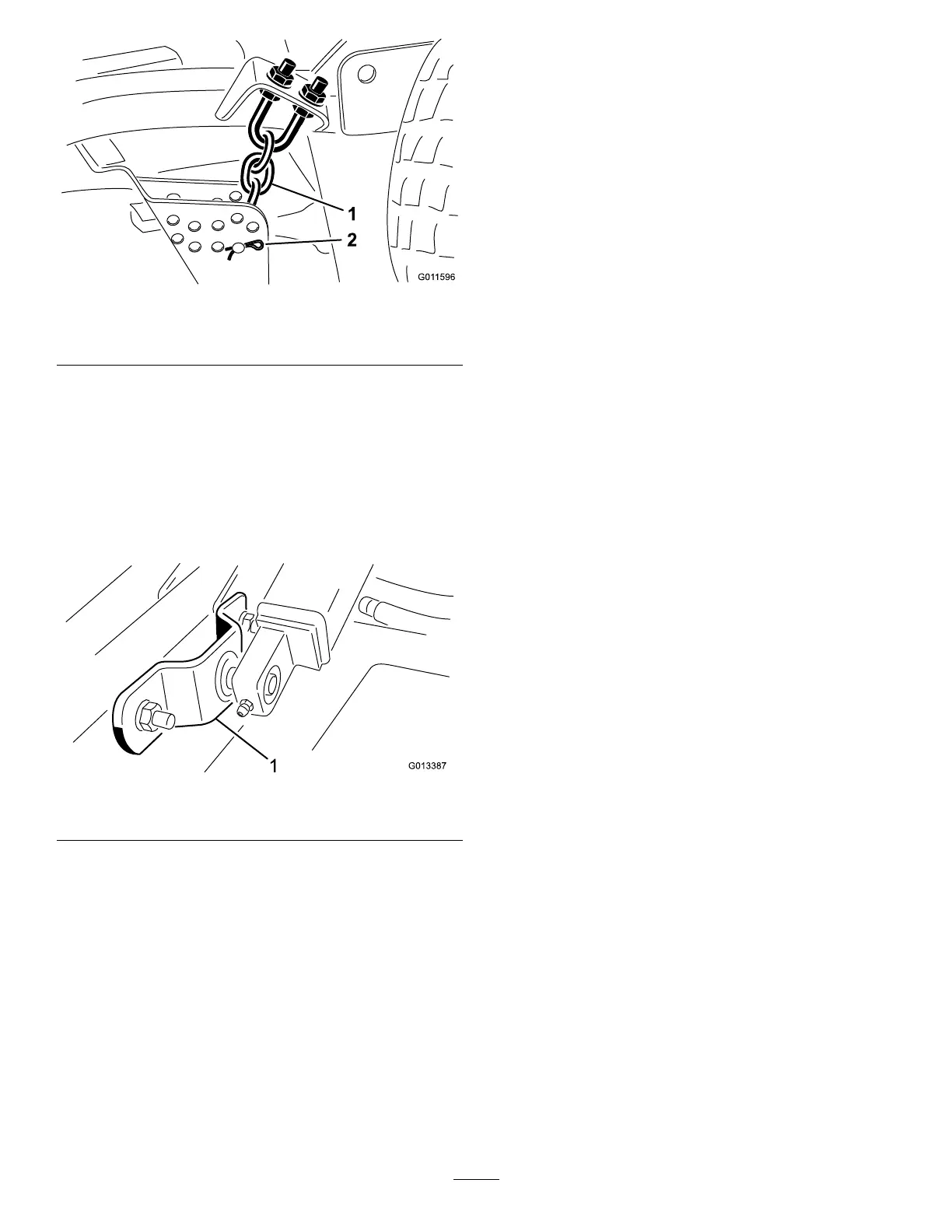

Figure7
1.Heightofcutchain2.Clevispinandhairpin
cotter
9.Removethebolts,washersandlocknutssecuring
eachliftarmmounttothecuttingunitcastorarm
tubes(
Figure8).
Important:Whenre–assemblingtheliftarm
mountstothecastorarmtubes,makesurethey
arepositionedsotheslottedmountingholes
aretotherearandthefastenersaretorquedto
75–85ft–lbs.
Figure8
1.Liftarmmount(2)
10.Movethecuttingunitawayfromthetractionunit.
11.Slidethenewcuttingunitintopositionandmountit
tothetractionunitbyreversingtheprocedure.
