g011538
1 2

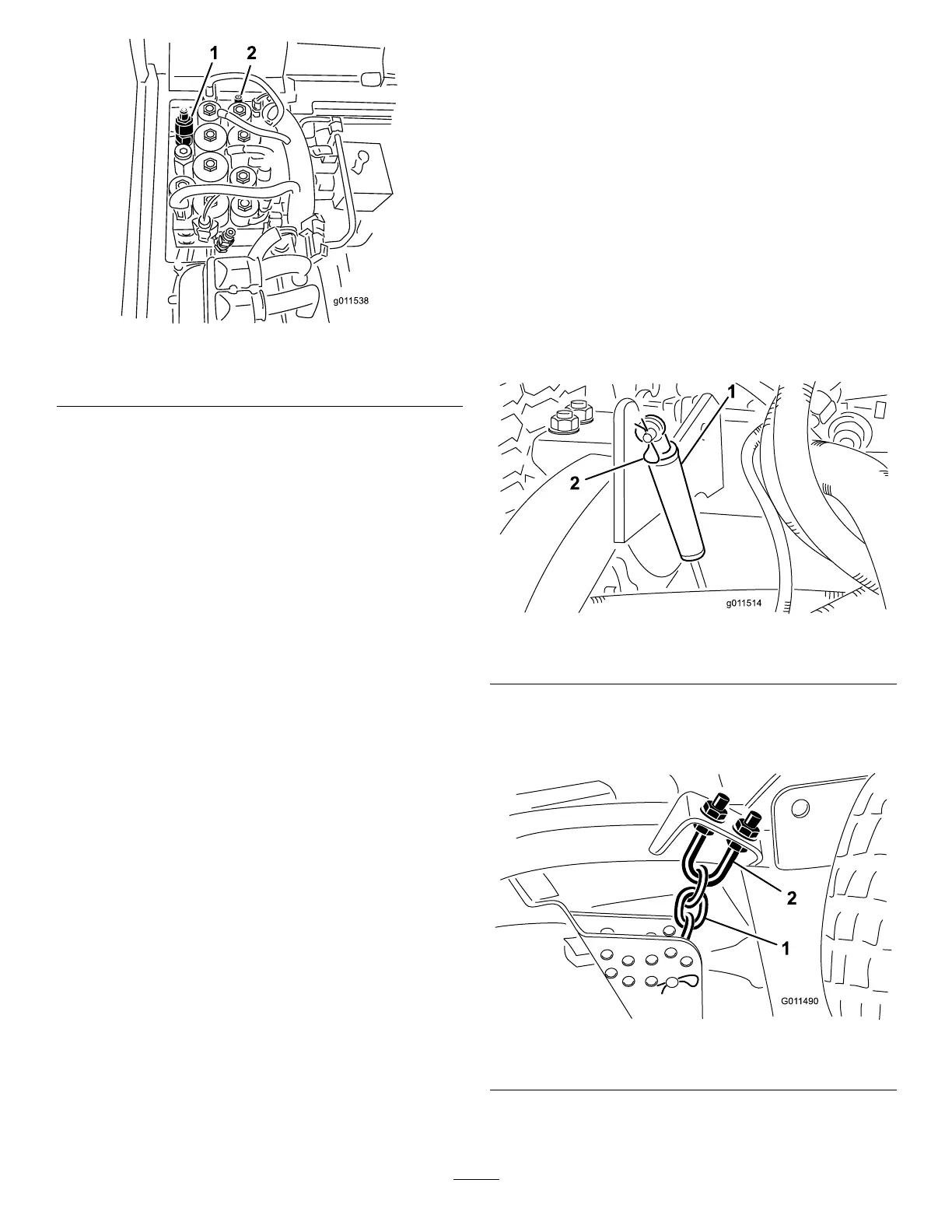

Figure76
1.Counterbalancetestport2.Counterbalanceadjusting
screw
MowerMaintenance
Pivoting(Tilting)theFront
CuttingUnitUpright
Note:Althoughnotneededfornormalmaintenance
procedures,thefrontcuttingunitcanbepivoted(tilted)
toanuprightposition.Shouldyoudesiretotiltthe
cuttingunit,proceedasfollows:
1.Raisethecenterandwingcuttingunitsslightlyoffof
theoor,settheparkingbrake,andstoptheengine.
Removetheignitionkey.
2.Removethehairpincottersecuringdamperstolift
arms(
Figure77).Pivotdampertowarddeckhousing.
Figure77
1.Damper2.Hairpincotter
3.Removethehairpincotterandclevispinsecuring
theheight-of-cutchainstotherearofthecutting
unit(
Figure78).
Figure78
1.Height-of-cutchain
2.U-bolt
51
