SCAMP MODELS
SELF PROPELLED
SERVICING AND ADJUSTMENTS
DRIVE
ROLLER
ADJUSTMENT

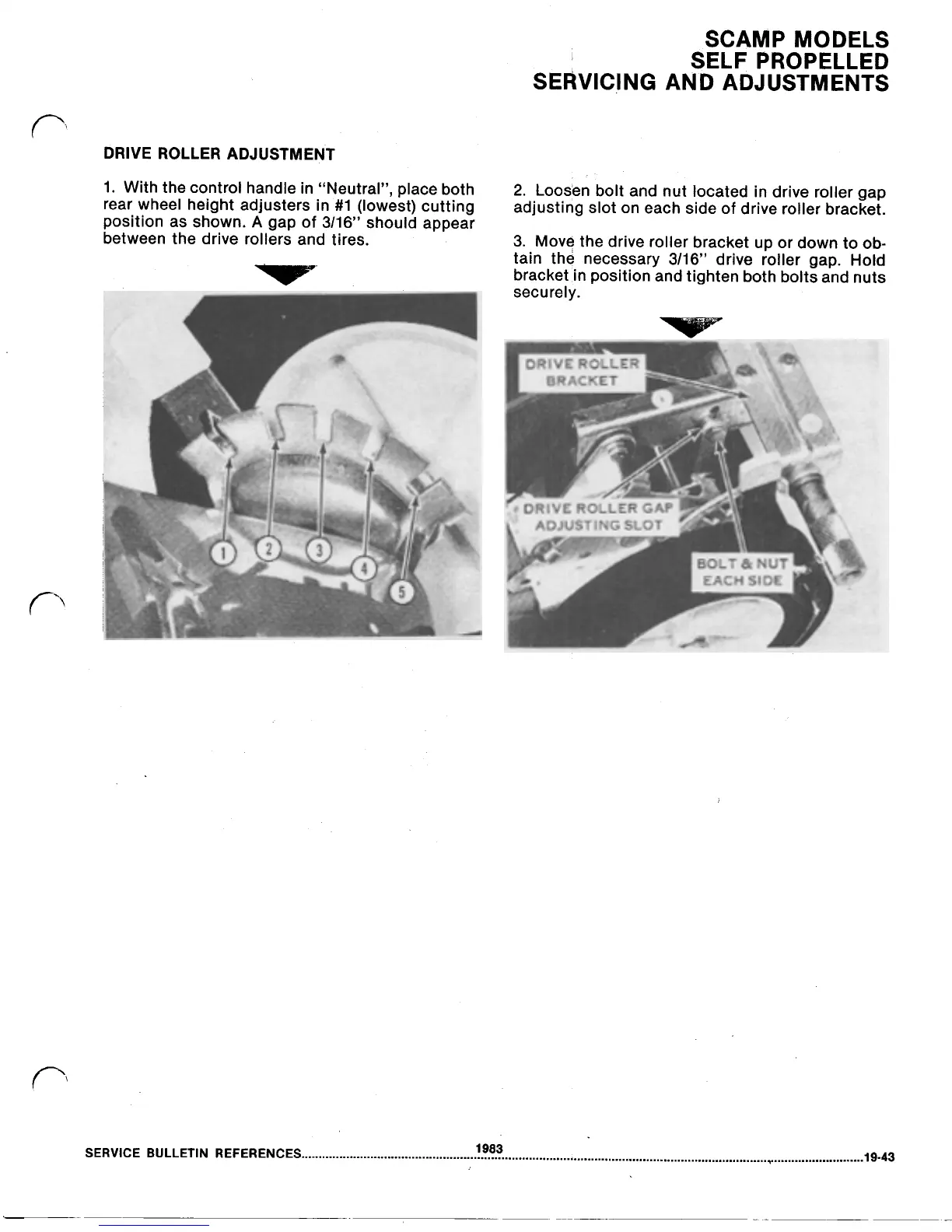

1. With the control handle in “Neutral”, place both
2.
Loosen bolt and nut located in drive roller gap
rear wheel height adjusters in #1 (lowest) cutting adjusting slot on each side
of
drive roller bracket.
position as shown.
A
gap
of
3/16” should appear
between the drive rollers and tires. 3. Move the drive roller bracket up or down to
ob-
tain the necessary 3/16’’ drive roller gap. Hold
bracket in position and tighten both bolts and nuts
securely.
