Backlapping Reelmaster 6000
Traction Units
POTENTIAL HAZARD
• Reels may stall when backlapping.
WHAT CAN HAPPEN
• Reels may restart. Contact with rotating
reels will cause serious injury.
HOW TO AVOID THE HAZARD
• Do not attempt to restart reels by hand or
touch reels while backlapping.
• Stop engine and turn height-of-cut knob
one position toward “A.”
Note: When backlapping, the front units
all operate together, and the rear
units operate together.
1. Position the machine on a level surface, lower
the cutting units, stop the engine, engage the
parking brake, and move the Enable/Disable
switch to disable position.
2. Unlock and raise the seat to expose controls.
3. Open control cover and turn the H.O.C. selection
knob to position “P” (Fig. 17).
1

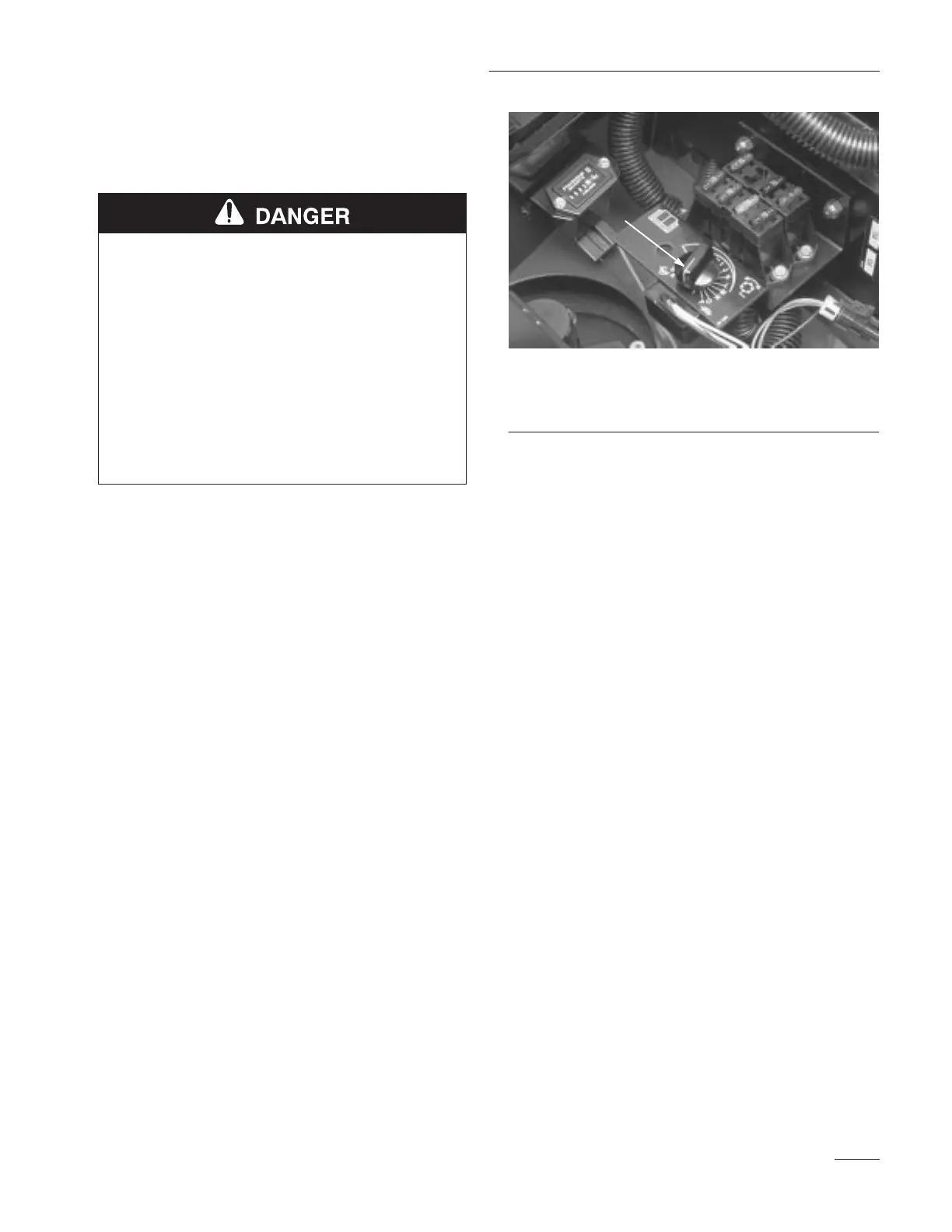

Figure 17
1. Height-of-cut selection
knob
Note: Backlapping speed may be increased
by moving the H.O.C. selection knob
toward “A”. Each position will
increase speed approximately 60 rpm.
After changing selector, wait 30
seconds for the system to respond to
the new speed target.
4. Make initial reel to bedknife adjustments
appropriate for backlapping on all cutting units
which are to be backlapped.
5. Start engine and run at idle speed.
