Toro 570Z Series User Manual

Model Pop-up Height Optional Optional Optional
Z—Lawn Pop-up 4P—4" (100mm) SI—Side Inlet COM—Check E—Effluent
& High-pop 6P—6" (150mm) Valve*
S—Shrub 12P—12" (300mm)
Example: A 570Z PRX Series Sprinkler with a pop-up height of 6" (150mm)
with a side-inlet option, would be specified as:
570Z-6P-SI-PRX
*Available with non-side inlet only.
X-Flow is a trademark of The Toro Company.
570X XXX SI COM EPRX
Specifying Information
570Z PRX Series
Sprinklers
0'–15' (0–4,6m) Radius
Features
• Patented in-riser pressure
regulator
• Maintains constant 30 psi
(2 Bar) outlet pressure
• Eliminates misting and
fogging caused by pressures
above 30 psi (2 Bar)
• Patented X-Flow high-flow
shut-off device built into
the riser
• Restricts water loss if the
nozzle is removed or
damaged, eliminating
potential erosion or
safety issues
• Allows for nozzle and filter
replacement or maintenance
while the system is running
• PRX stamped on cap for
easy identification
• All bodies shipped with a flush
plug in place for ease of
flushing and riser pull up
• Zero-flush seal prevents
flushing on pop-up
• Retraction flushing clears debris
for reliable pop-down
• Side-inlet models available
on 6" (150mm) and 12"
(300mm) sprinkler bodies for
easier installation and
vandal resistance
• Non-side-inlet models available
on 6" (150mm) and 12"
(300mm) sprinkler bodies for
sandy soils or applications
prone to high-pressure surges
and spikes
• Check valve prevents low-head
damage and keeps laterals
charged with water (optional)
• Recycled water models
available—cap molded in
lavender-colored plastic for
permanent identification
• Cap cover available for new
or existing installations
• Five-year warranty
Specifications
• Flow rate: 0.05–3.30 GPM
(0,2–17 LPM)
• Recommended operating
pressure: 30–75 psi (2–5,2 Bar)
• Maximum operating pressure:
75 psi (5,2 Bar)
•
1
⁄2" (13mm) female-threaded
inlet
• Dimensions:
• Body diameter:
– 1
3
⁄8" (35mm) on 4P, 6P
and 6P-SI models
– 1
5
⁄8" (41mm) on 12P models
– 1
3
⁄4" (44mm) on 12P-SI
models
• Cap diameter: 2" (50mm)
• Side inlet: 4
3
⁄4" (120mm) from
the top of sprinkler to center
of side inlet
• Check valve maintains up to 7'
(2,1m) elevation change
(optional on side-inlet models)
Notes: You must have a nozzle
screen or flush plug in place to
deactivate the X-Flow function.
Without either, there will not be
flow through the sprinkler.
570Z PRX not recommended for
use with PCD nozzles.

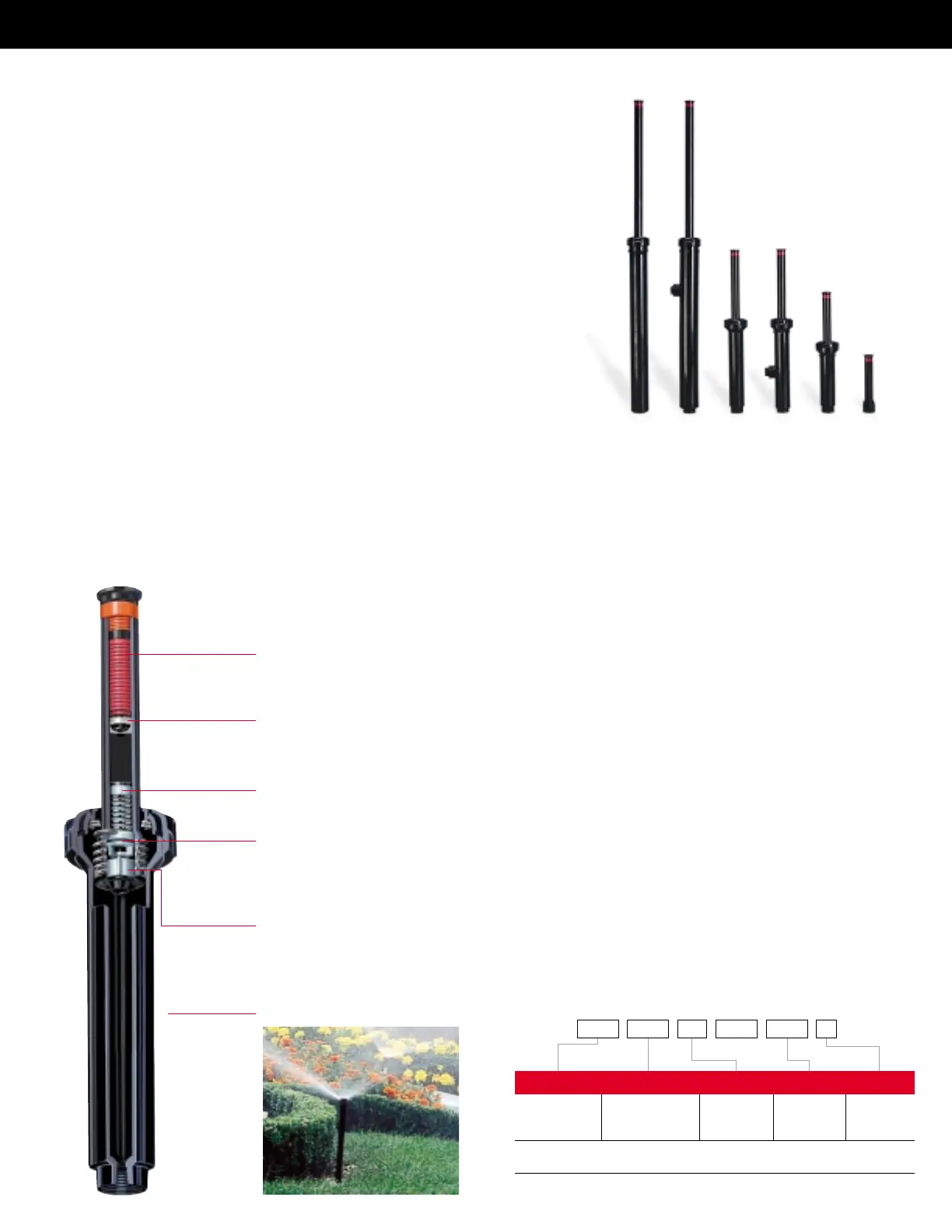

Nozzle filter screen
X-Flow
™
shut-off device
Optional
side inlet on
non-Check-O-Matic
models only (not
illustrated)
Optional
Check-O-Matic
(COM) seal
prevents low-head
drainage
In-riser pressure
regulator maintains
constant 30 PSI
outlet pressure
Zero-flush seal
prevents flushing
on pop-up
3
3
