Toro 71221 - Installing the Discharge Cover

Operation
18
Installing the
Discharge Cover
To convert from side discharge to a mulching mower,
install the discharge cover into the opening at the side
of the mower.
1. Lift the grass deflector and slide the tabs on top
of the discharge cover under the grass deflector
retaining rod. Rotate the discharge cover down
over the opening, and onto the lower lip of the
mower (Fig. 13).
2. Secure the discharge cover to the lower lip of the
mower with bolts and nuts (Fig. 13).

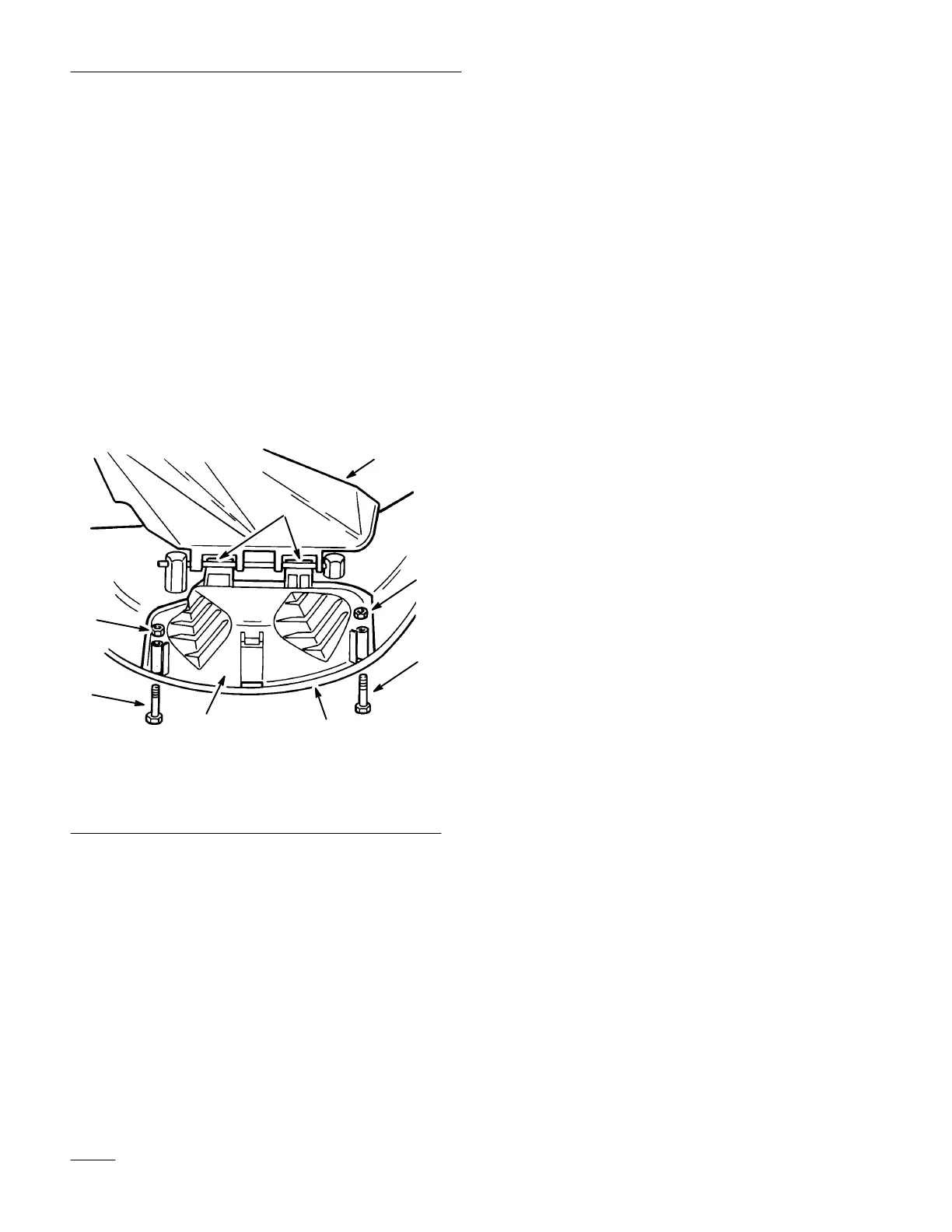

Figure 13
1. Grass deflector
2. T abs under rod
3. Discharge cover
4. Lower lip
5. Bolt
6. Nut
1
6
5
4
3
6
5
2
1883
3. To convert back to a side discharge mower,
remove the discharge cover and lower the grass
deflector over the discharge opening.
