Toro 71233 - Fuse; Headlights

26
Fuse
Service Interval/Specification
The electrical system is protected by fuses. No maintenance
is required, however, if a fuse blows, check the circuit
wiring for a short. To replace a fuse pull up (Fig. 31) to
remove it from the socket. Push down to insert it.
Fuse: 10 amp, blade-type
1672
1
2

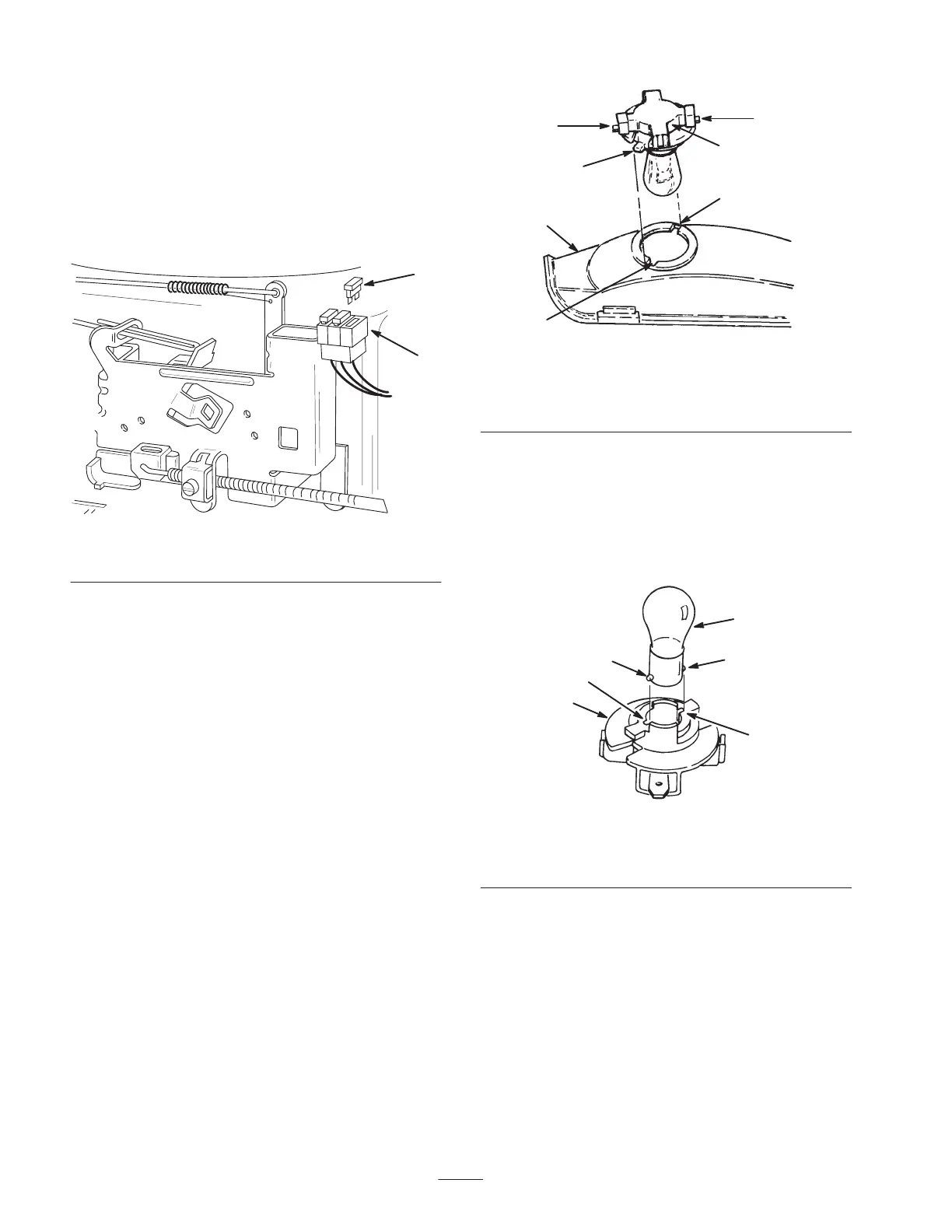

Figure 31
1. Fuse (removed) 2. Socket
Headlights
Specification: Bulb # 1156, automotive type
Removing the Bulb
1. Disengage the PTO, set the parking brake, stop the
engine, and remove the ignition key.
2. Open the hood. Pull the wire connectors off of both
bulb holder terminals.
3. Rotate the bulb holder 1/4 turn counterclockwise and
remove it from the reflector (Fig. 32).
4. Push and rotate the bulb counterclockwise until it stops
(approx. 1/4 turn) and remove the bulb from the bulb
holder (Fig. 33).
1
2
3
4
4
5
5
1874
Figure 32
1. Bulb holder
2. Reflector
3. Tabs
4. Slots
5. Terminals
Installing the Bulb
1. The bulb has metal pins on the side of its base. Align
the pins with the slots in the bulb holder and insert the
base into the holder (Fig. 33). Push and rotate the bulb
clockwise until it stops.
1
2
3
4
2
4
1875
Figure 33
1. Bulb
2. Metal pins
3. Bulb holder
4. Slots
2. The bulb holder has two tabs (Fig. 32). Align the tabs
with the slots in the reflector, insert the bulb holder into
the reflector, and rotate it 1/4 turn clockwise until it
stops.
3. Push the wire connectors onto the terminals on the bulb
holder.
