Operation
Think Safety First
Please carefully read all the safety instructions on
pages 2–7. Knowing this information could help you,
your family, pets or bystanders avoid injury.
Controls

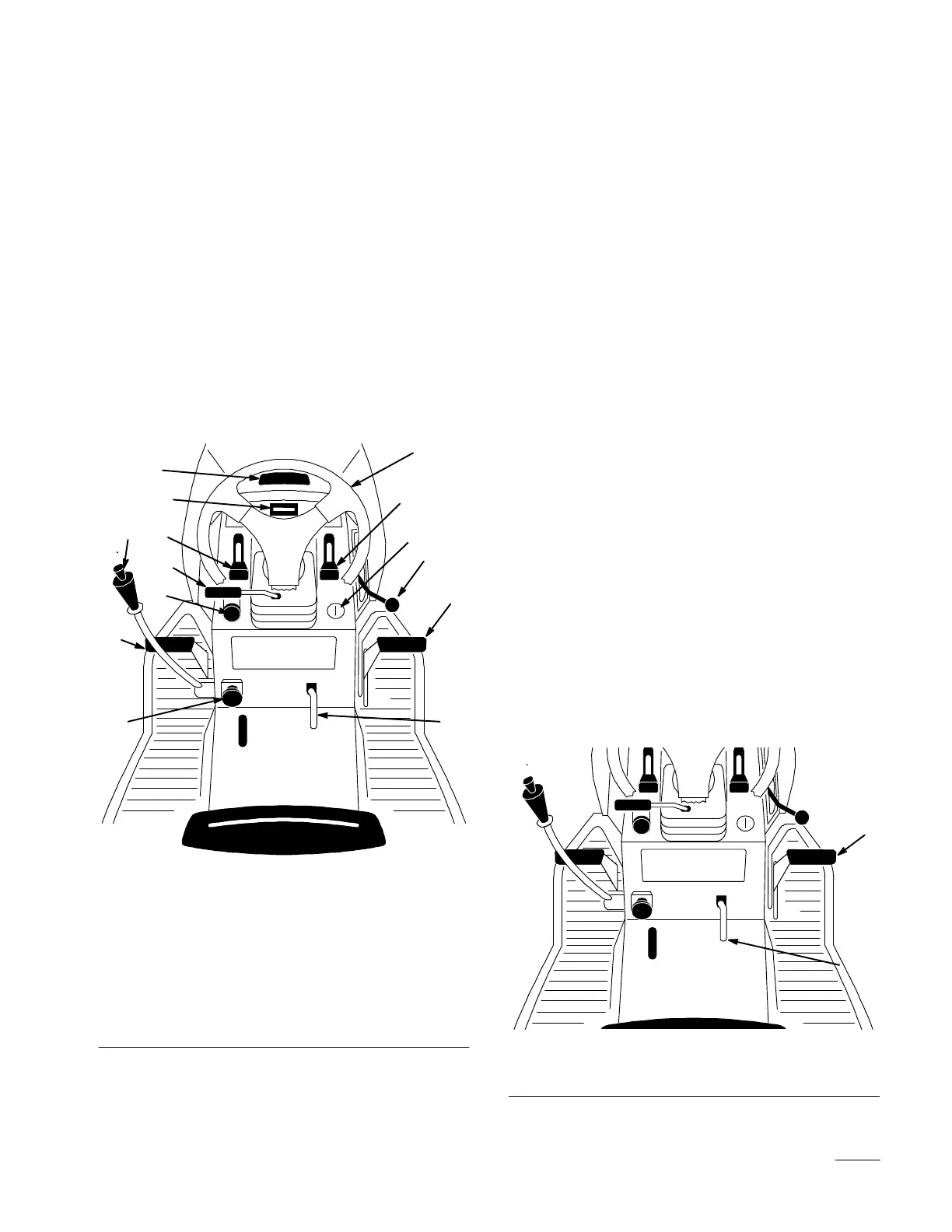

Become familiar with all the controls (Fig. 1) before
you start the engine and operate the machine.
2
3
4
8
9
10
12
1244
1
6
11
5
14
7
13
Figure 1
1. Steering wheel
2. Ignition switch
3. Brake pedal
4. Parking brake lever
5. Ground speed selector
6. Throttle lever
7. Choke lever
8. Power take off (PTO)
9. Clutch pedal
10. Indicator control
module/Hourmeter
11. Attachment lift lever
12. Tilt wheel lever
13. Hood opening
14. Dial-a-height knob
Parking Brake
Always set the parking brake when you stop the
machine or leave it unattended.
While the ignition key is in the “RUN” or “LIGHTS”
positions and the Parking Brake is engaged, the
Parking Brake light, in the Indicator Module, will be
lit.
Setting the Parking Brake
1. Push the brake pedal (Fig. 2) down and hold it in
the depressed position.
2. Lift the parking brake lever (Fig. 2) up and
gradually take your foot off the brake pedal. The
brake pedal should stay in the depressed (locked)
position.
Releasing the Parking Brake
1. Push down on the brake pedal (Fig. 2). The
parking brake lever should release.
2. Gradually release the brake pedal.
1
2
1244a
Figure 2
1. Brake pedal 2. Parking brake lever
