Operation
14
Attachment Lift Lever
The attachment lift lever (Fig. 10) is used to raise and
lower various attachments.
Raising Attachments
1. Depress the brake pedal to stop the machine.
2. Pull attachment lift lever rearward until latch
locks. In this position the lift will hold the
attachment in the up, or raised position.
Lowering Attachments
1. Depress the brake pedal to stop the machine.
2. Pull attachment lift lever rearward, to release lift
pressure, and push the button on top to release
the latch. Move lift lever foreword to lower
attachment.
1205
3
2
4
5
6
1

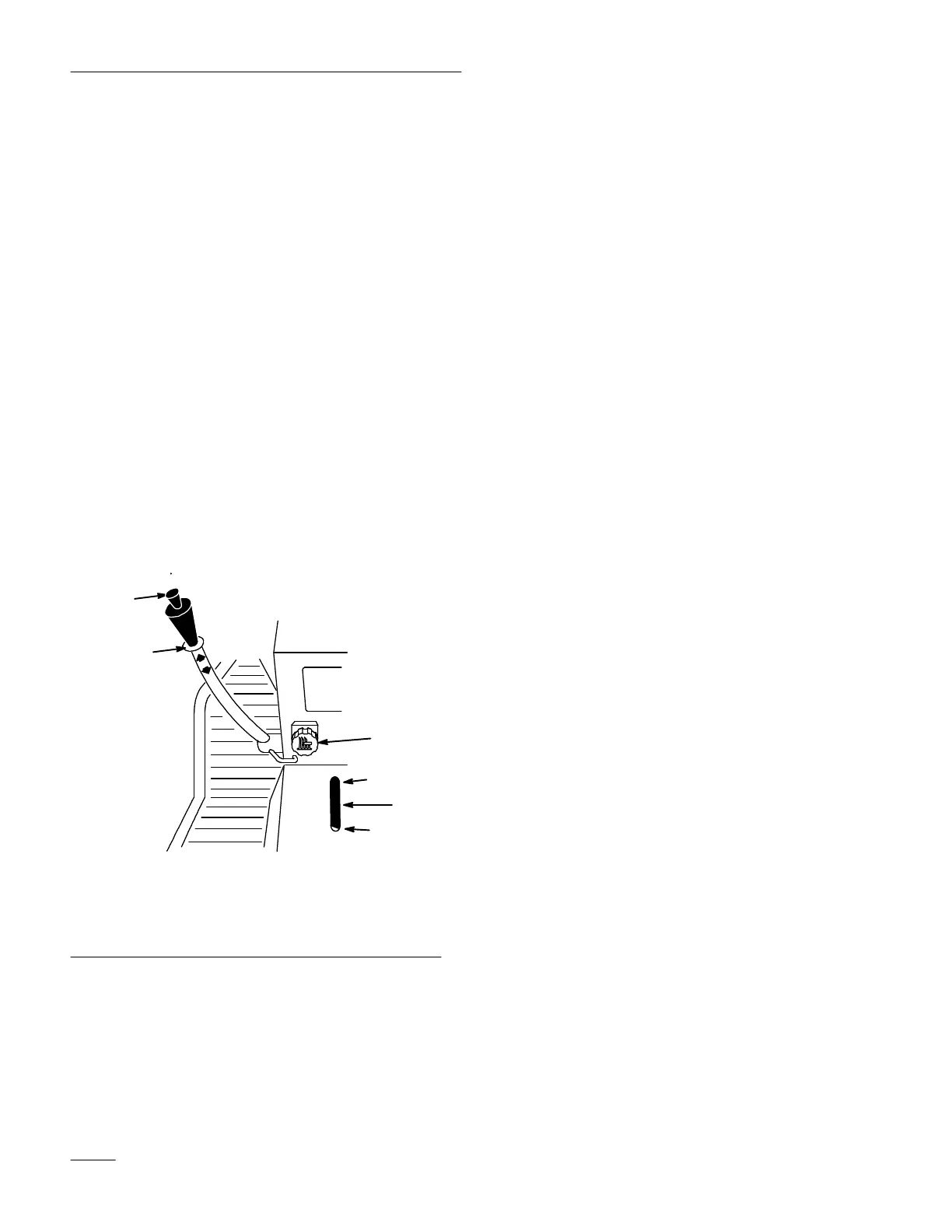

Figure 10
1. Lift lever
2. Button
3. Dial-A-Height
4. Indicator
5. High
6. Mounting position
Adjusting Dial-A-Height
The Dial-A-Height control (Fig. 10) is used to limit
the downward travel of the attachment. The
Dial-A-Height knob is rotated to change the location
of this stop, up or down.
1. Raise the attachment lift lever: Refer to Raising
Attachments. In the raised, position the
Dial-A-Height knob (Fig. 10) can be rotated to
change the stop location. Turn right to raise and
left to lower the height of the attachment.
2. The Dial-A-Height indicator (Fig. 10) will show
the change, high to low, in attachment lift height
as adjustment is made.
