Maintenance
28
Fuse
Service Interval/Specification
The electrical system is protected by fuses. It requires
no maintenance, however, if a fuse blows check
component/circuit for malfunction or short. To
replace fuses pull up on the fuse (Fig. 30) to remove
or replace it.
Fuse: Dash/Hour meter F1–5 amp, blade-type
Head lights F2–10 amp, blade-type
Alternator F3–25 amp, blade-type
Main/Starter F4–30 amp, blade-type
2344
1
2
3
4

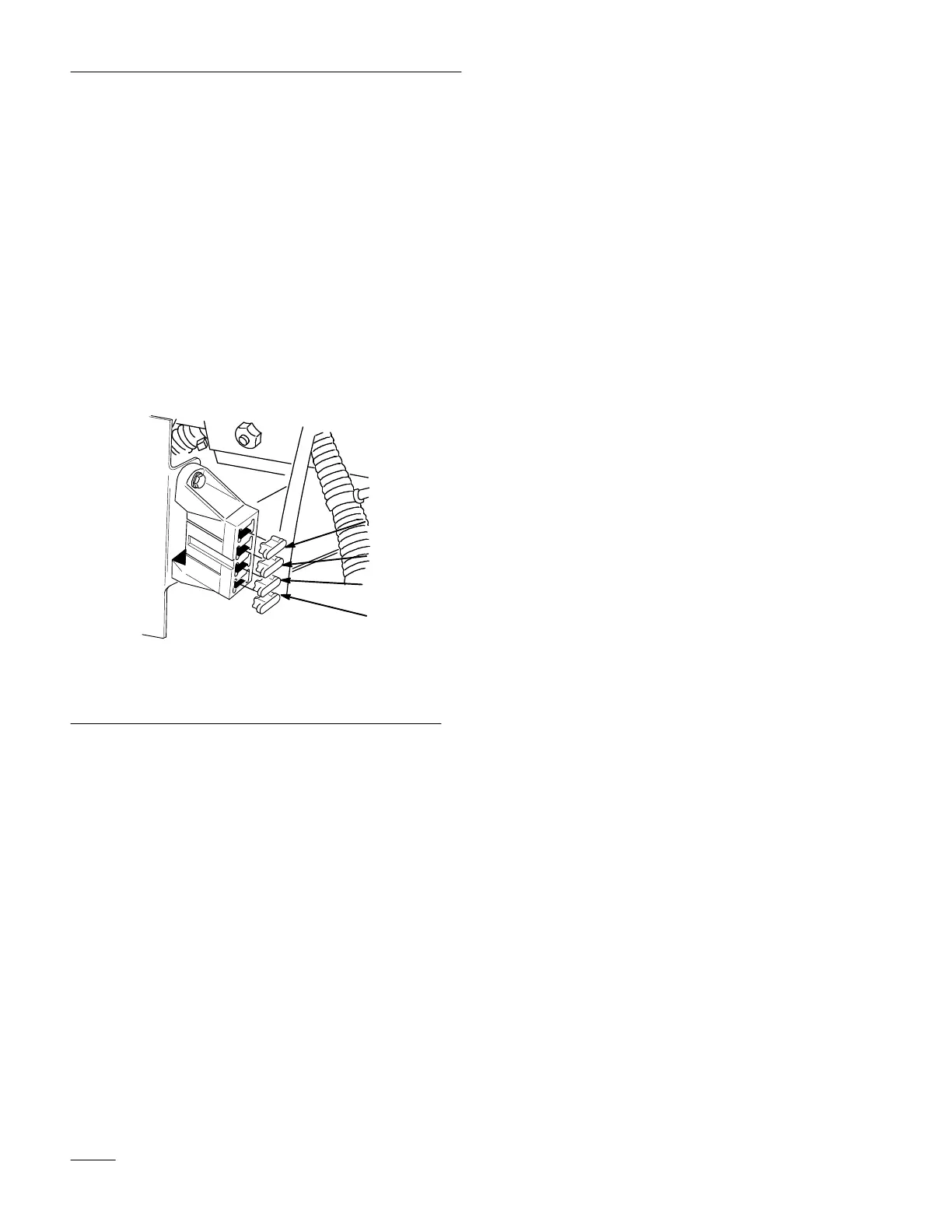

Figure 30
1. Dash/Hour meter-5 Amp
2. Head lights-10 amp
3. Alternator-25 amp
4. Main-30 amp
