g008804

g311705

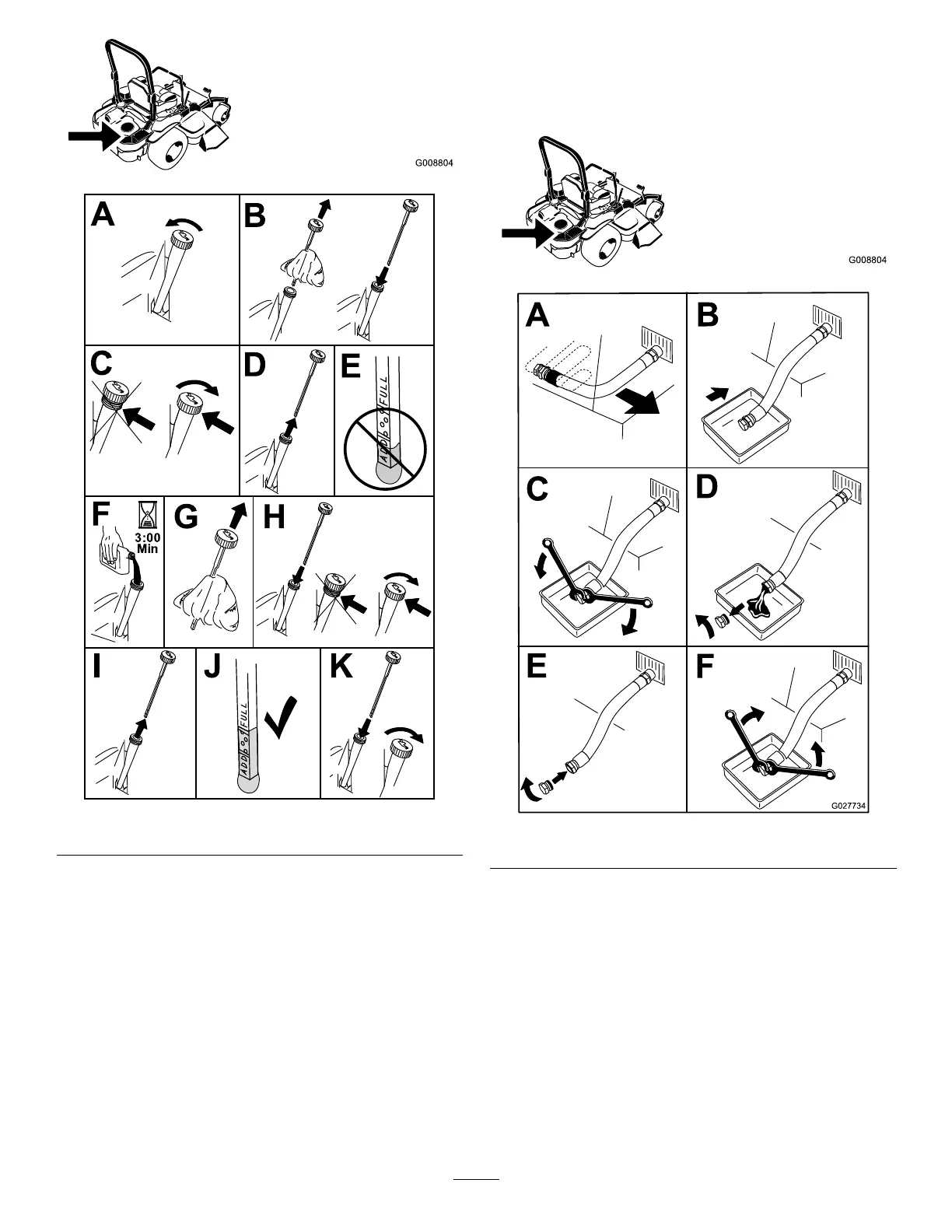

Figure48

ChangingtheEngineOil

Note:Disposeoftheusedoilatarecyclingcenter.

1.Starttheengineandletitrunfor5minutes.

Note:Thiswarmstheoilsothatitdrainsbetter.

2.Parkthemachinesothatthedrainsideisslightly

lowerthantheoppositesidetoensurethatthe

oildrainscompletely.

3.Disengagetheblade-controlswitch(PTO)and

engagetheparkingbrake.

4.Shutofftheengine,removethekey,andwait

forallmovingpartstostopbeforeleavingthe

operatingposition.

5.Draintheoilfromtheengine(Figure49).

g008804

g027734

Figure49
