1. Park the machine on a level surface, disengage
the blade-control switch (PT O), and engage the
parking brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Insert the hitch ball mount into the receiver
located at the rear of the machine.
4. Insert the hitch pin through the hole in the
receiver and the hitch ball mount.
5. Secure the hitch using the hairpin cotter .
g414986

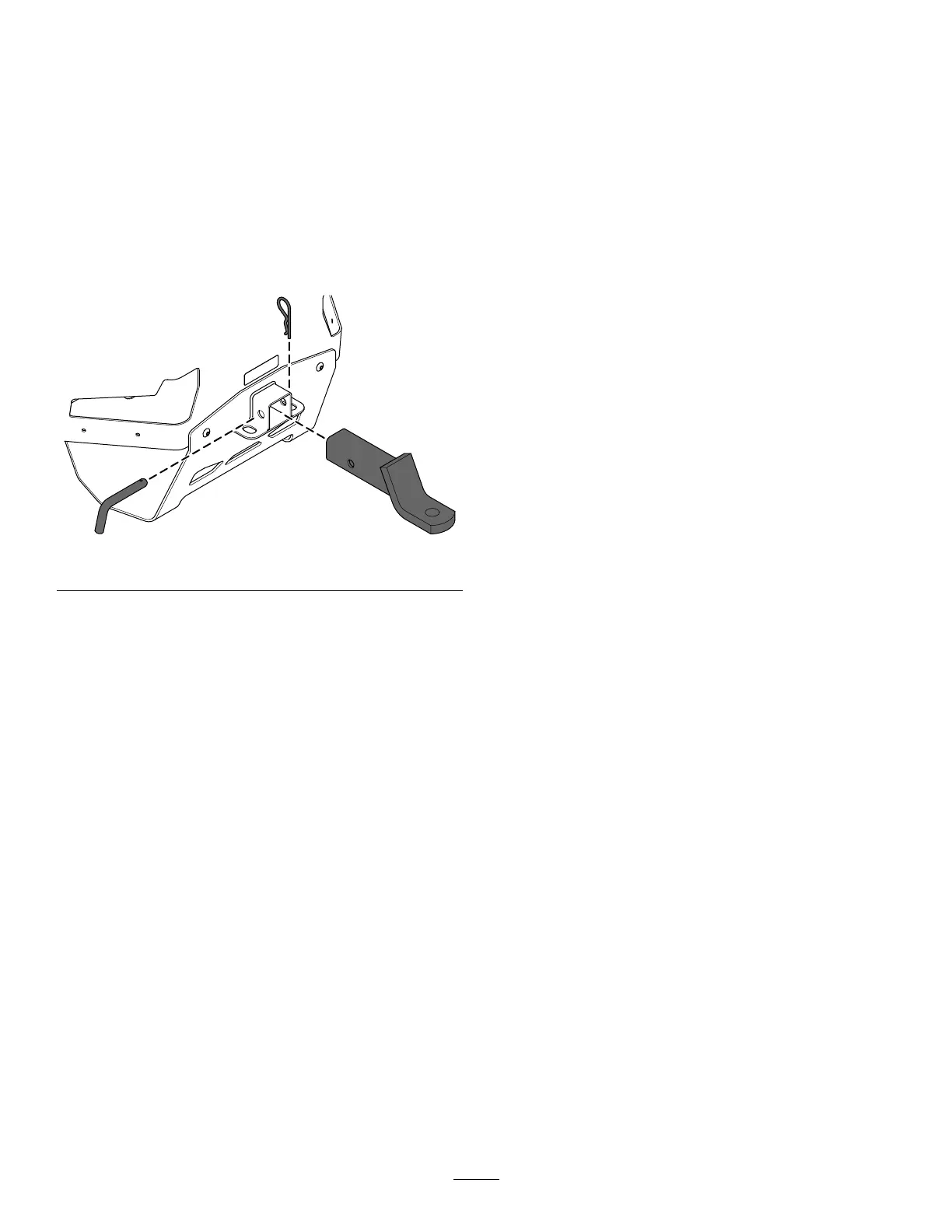

Figure 40
34
