19
Using the Blowout Baffles
Blowout baffles are used when in side discharge mode
only.
Important Do not use blowout baffles while in
recycling mode.

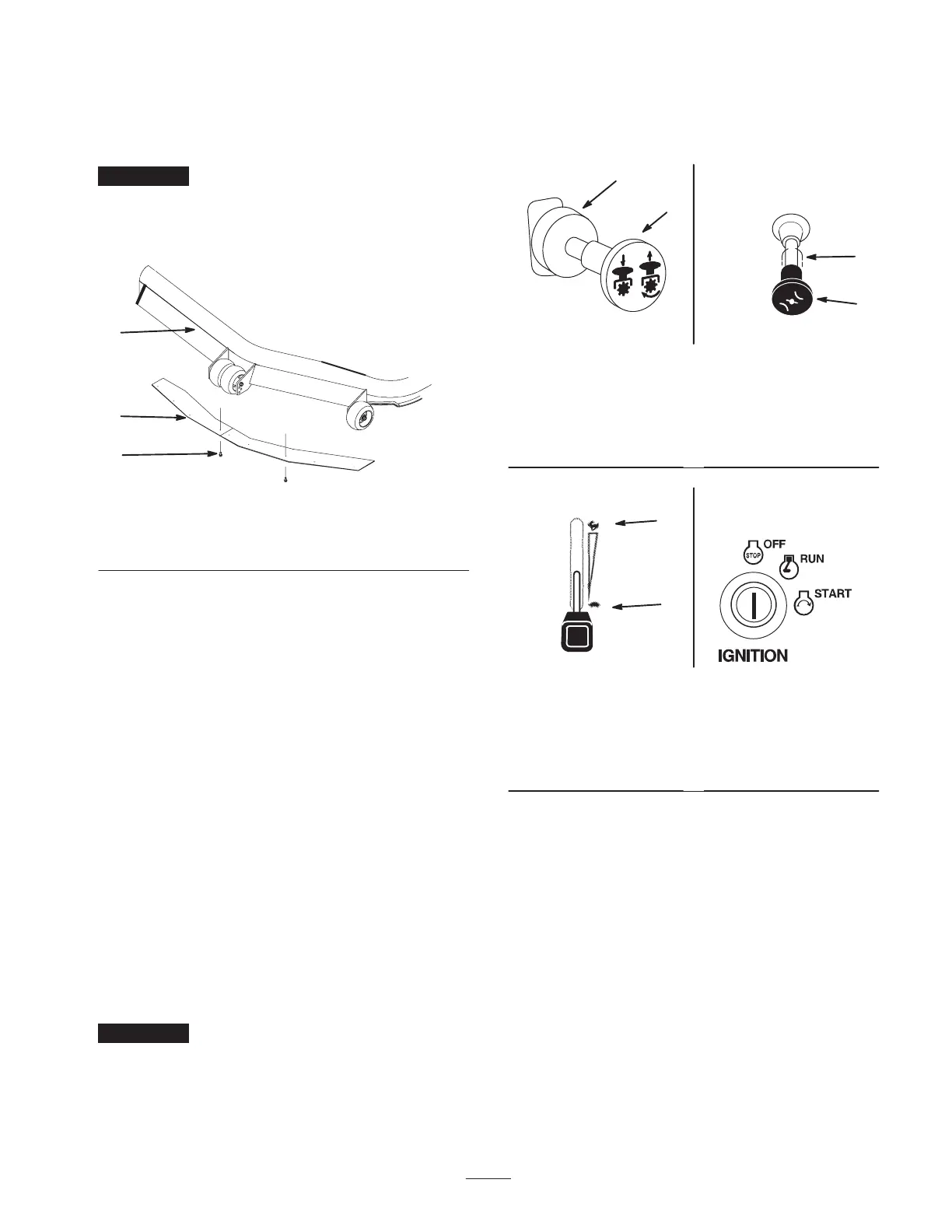

1. To install or remove blowout baffles, install or remove
bolts as shown in Figure 14.
2
M–4661
3
1
Figure 14
1. Bolts
2. Front of deck
3. Baffles
Starting and Stopping the
Engine
Starting the Engine
1. Sit down on the seat and move the motion controls to
neutral locked position.
2. Set the parking brake; refer to Setting the Parking
Brake, page 18.
3. Move the PTO (power take off) to the off position
(Fig. 15).
4. Move the choke control to on position before starting a
cold engine (Fig. 16).
Note: A warm or hot engine may require choking. After
engine starts, move choke control to the off position.
5. Move the throttle control to the fast position before
starting a cold engine (Fig. 17).
6. Turn ignition key to start to energize starter. When
engine starts, release key (Fig. 18).
Important Do not engage starter for more than 10
seconds at a time. If engine fails to start allow 30 second
cool-down period between attempts. Failure to follow
these instructions can burn out starter motor.
7. After the engine starts, move the choke to off (Fig. 16).
If the engine stalls or hesitates, move the choke back
to on for a few seconds. Then move the throttle lever
to desired setting. Repeat this as required.
Figure 15
1. PTO—On
2. PTO—Off
Figure 16
1. Choke—On
2. Choke—Off
1
m–2719
2
1
m–4201
2
Figure 17
1. Fast
2. Slow
Figure 18
1. Off
2. Run
3. Start
2
1
m–2720
1
2
3
M–4268
Stopping the Engine
1. Push the PTO to off (Fig. 17).
2. Move the throttle lever midway between the slow and
fast positions (Fig. 17).
3. Let the engine idle for 60 seconds (Fig. 18).
4. Turn the ignition key to off (Fig. 18).
5. Pull wire off spark plug(s) to prevent possibility of
someone accidentally starting the machine before
transporting or storing machine.
6. Close fuel shut off valve, on front panel before
transporting or storing machine.
