Toro 74582 - Servicing the Grass Collector; Removing the Grass Collector; Installing the Grass Collector; Cleaning the Grass Collector and Tunnel

ServicingtheGrass
Collector
RemovingtheGrassCollector
1.Use2handstotipthegrasscollectorforward
(Figure36).

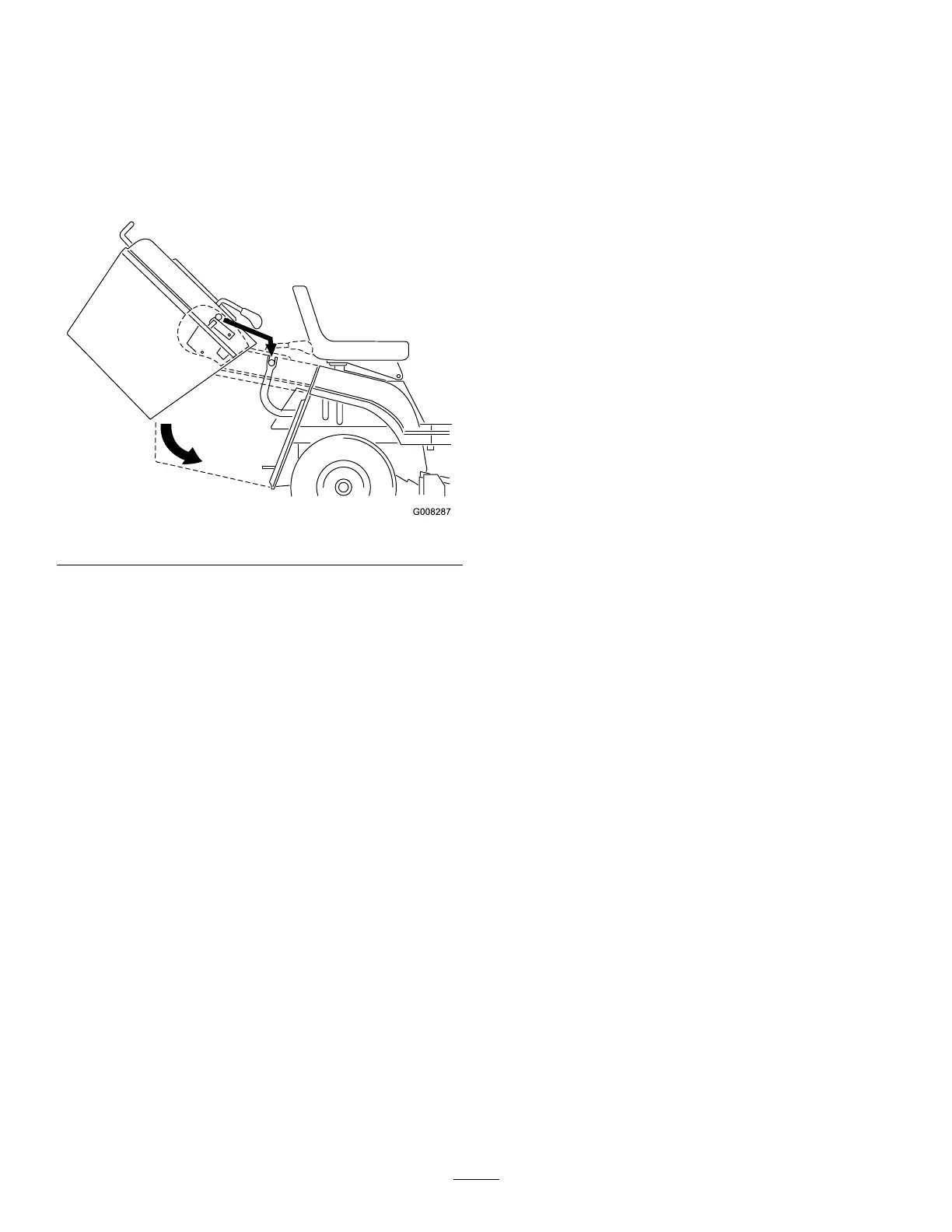

Figure36
2.Carefullyslidetheassemblyrearwardoffthesupport
brackets.
InstallingtheGrassCollector
1.Liftthegrasscollectorassemblywith2hands.
2.Tipthecollectorforwardapproximately40degrees
andslideitontothe2supportbracketsattherearof
themachine(Figure36).
Note:Ensurethatthearrowonthetopofthegrass
collectoralignswiththearrowonthemachine.The
mowerwillnotfunctionwhenthegrasscollectorisnot
inplace.
CleaningtheGrassCollector
andTunnel
1.Disengagetheblades(PTO).
2.Settheparkingbrake.
3.Stoptheengineandwaitforallmovingpartstostop.
4.Removetheignitionkey.
5.Removethegrasscollector;refertoRemovingthe
GrassCollector.
6.Cleanthecollectorbagwithpressurizedwater.
7.Wipetheareaaroundthefull-bagsensor.
8.Ensurethatthebagondemandisinthebagging
modeandcleantheinsideofthetunnelalltheway
tothemower.
9.Installthegrasscollector;refertoInstallingthe
GrassCollector.
Note:Allowthebagtodrythoroughlybefore
installingit.
