Toro 74627 - Operating the Blades; Testing the Safety Interlock System

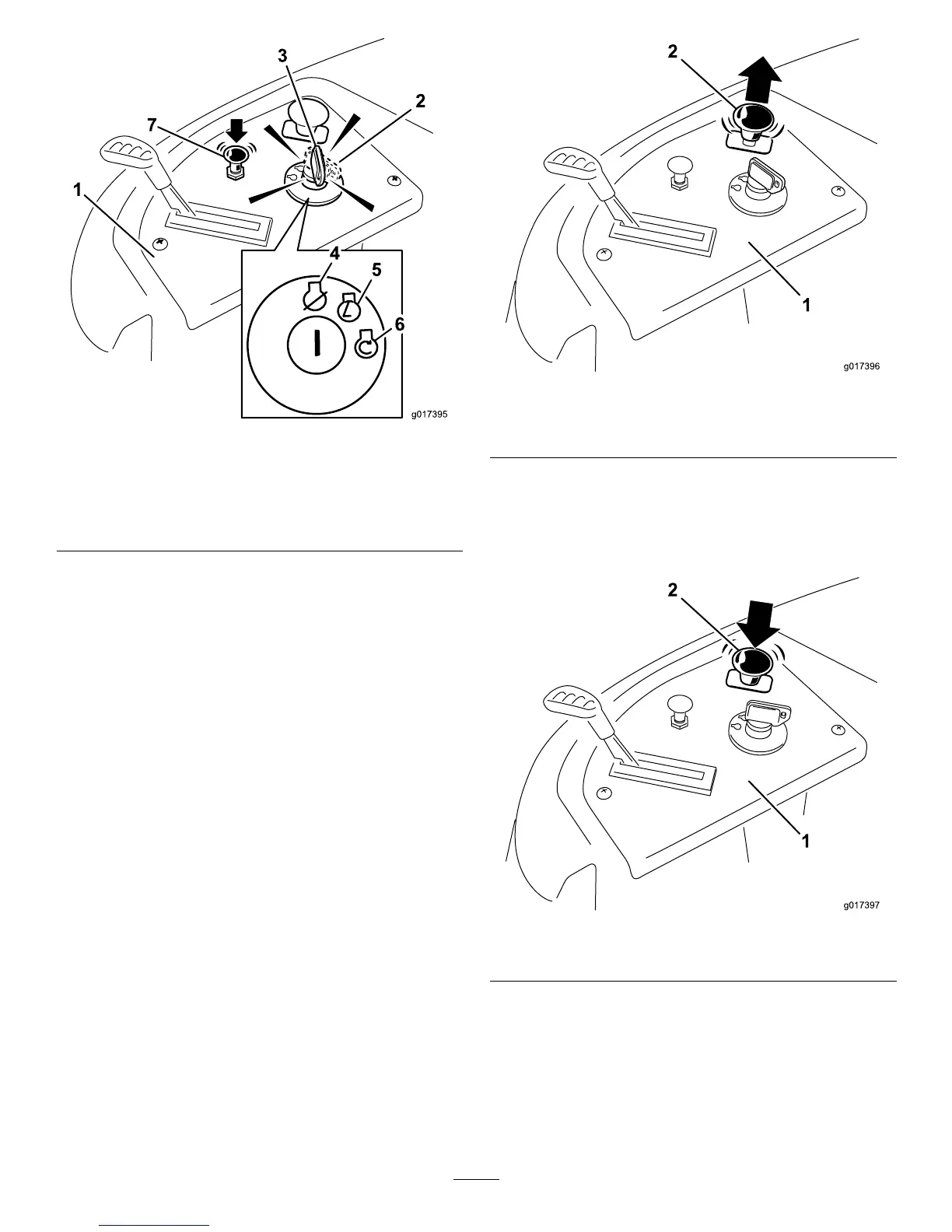

Figure13
1.Controlpanel
5.Run
2.Ignitionkey—runposition
6.Start
3.Ignitionkey—startposition
7.Chokecontrol
4.Off
5.Aftertheenginestarts,pushdownontheChoke
control(Figure13).Iftheenginestallsorhesitates,
pullupontheChokecontrolandlettheenginerun
forafewseconds.ThenpushdownontheChoke
control.Repeatthisasrequired.
OperatingtheBlades
Thebladecontrolswitch,representedbyapower
take-off(PTO)symbol,engagesanddisengagespower
tothemowerblades.Thisswitchcontrolspowertoany
attachmentsthatdrawpowerfromtheengine,including
themowerdeckandcuttingblades.
EngagingtheBlades
Important:Donotengagethebladeswhenparked
intallgrass.Beltorclutchdamagecanoccur.
1.Releasepressureonthemotioncontrolleversand
placethemachineinneutral.
2.MovethethrottletotheFastposition.
Note:Alwaysengagethebladeswiththethrottle
intheFastposition.
3.Pulluponthebladecontrolswitchtomoveittothe
Onpositionandengagetheblades(Figure14).
Figure14
1.Controlpanel2.Bladecontrolswitch—On
position
DisengagingtheBlades
Pushdownonthebladecontrolswitchtomoveitto
theOffpositionanddisengagetheblades(Figure15).
Figure15
1.Controlpanel2.Bladecontrolswitch—Off
TestingtheSafetyInterlock
System
Testthesafetyinterlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
19
