Toro 74627 - Adjustments for Comfort and Cutting

Togostraight,applyequalpressuretobothmotion
controllevers(Figure19).
Toturn,releasethepressureonthemotioncontrol
levertowardthedirectionyouwanttoturn.
Tostop,pushthemotioncontrolleverstoneutral.
StoppingtheMachine
Tostopthemachine,movethemotioncontrolleversto
neutralandoutwardtotheparkposition,disengagethe
bladecontrolswitch,ensurethethrottleisinthefast
position,andturntheignitionkeytoOff.Remember
toremovethekeyfromtheignitionswitch.
WARNING
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethemowerwhileitis
unattended.
Alwaysremovetheignitionkeyandmovethe
motioncontrolleversoutwardtotheparkposition
whenleavingthemachineunattended,evenifjust
forafewminutes.

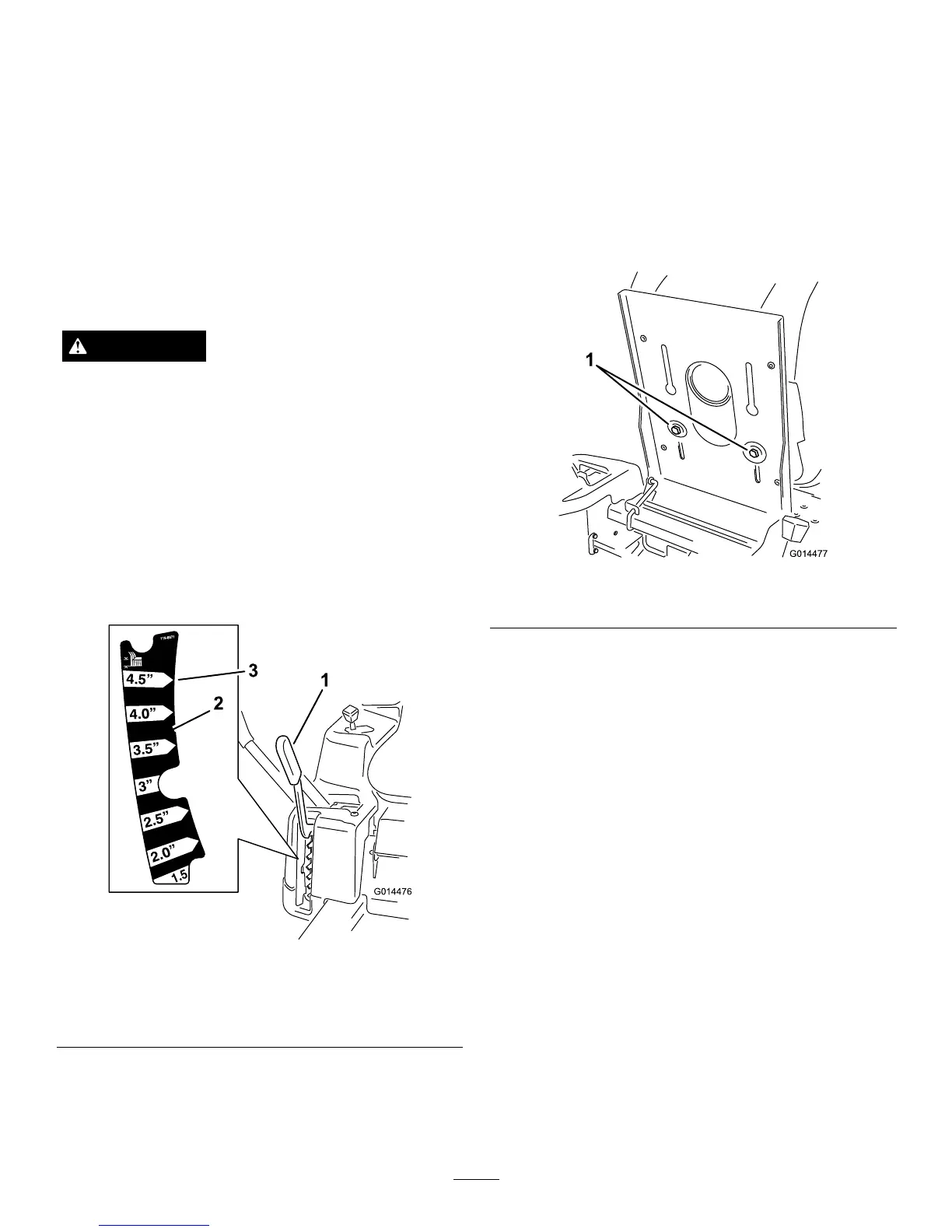

AdjustingtheHeightofCut
Height-of-cutiscontrolledbytheleverlocatedtothe
rightoftheoperatingposition(Figure20).
G014476
1
2
3
Figure20
1.Height-of-cutlever3.4.5inch(115mm),
Transportposition
2.Height-of-cutpositions
1.Pullupandinwardonthelevertomoveittothe
desiredcuttingposition.
2.Onceatthedesiredcuttingposition,slowlylower
theleveruntilitengagestheposition.
Thetransportpositionisthehighestheight-of-cut
positionorcuttingheight4.5inch[115mm](
Figure20).
PositioningtheSeat
Theseatcanmoveforwardandbackward.Positionthe
seatwhereyouhavethebestcontrolofthemachine
andaremostcomfortable.
1.Raisetheseatandloosentheadjustmentboltsjust
enoughthatseatcanmove(
Figure21).
G014477
1
Figure21
1.Adjustmentbolt
2.Movetheseattothedesiredpositionandtighten
thebolts.
AdjustingtheMotionControl
Levers
AdjustingtheHeight
Themotioncontrolleverscanbeadjustedhigheror
lowerformaximumoperatorcomfort.
1.Removethe2boltsholdingthecontrollevertothe
controlarmshaft(
Figure22).
2.Movethecontrollevertothenextsetofholes.
Securetheleverwiththe2bolts(
Figure22).
22
