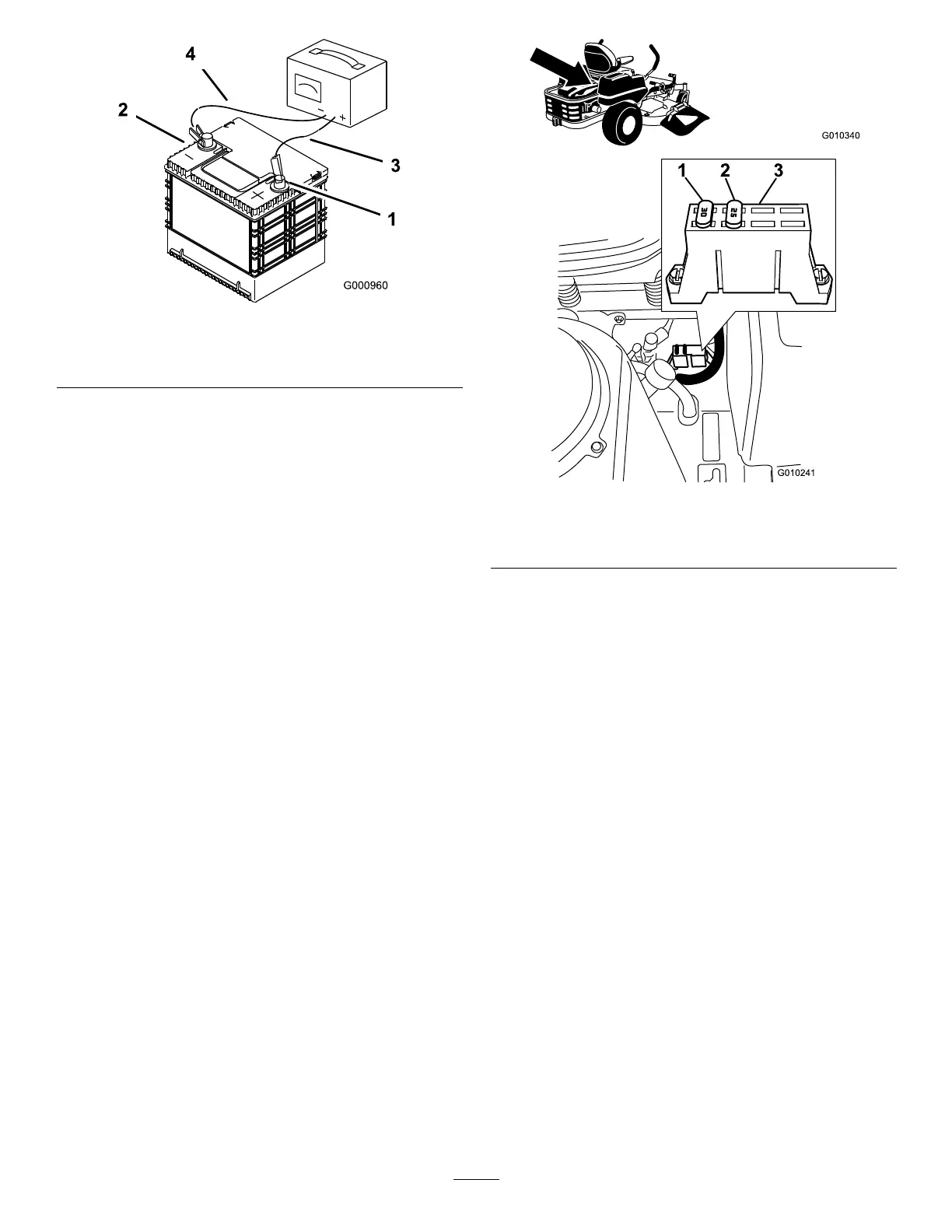

Figure43
1.PositiveBatteryPost
3.Red(+)ChargerLead
2.NegativeBatteryPost
4.Black(-)ChargerLead
ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequires
nomaintenance,however,ifafuseblowscheckthe
component/circuitforamalfunctionorshort.
Fuses:
•Main,30amp,blade-type
•Engine,20amp,blade-type
1.Thefusesarelocatedonrighthandconsolenextto
theseat(
Figure44).
2.Toreplacethefuses,pulloutonthefusetoremove
it.
3.Installanewfuse(Figure44).
G010340
30
25
1 2
3
G010241
Figure44
1.30amp3.Fuseblock
2.25amp
