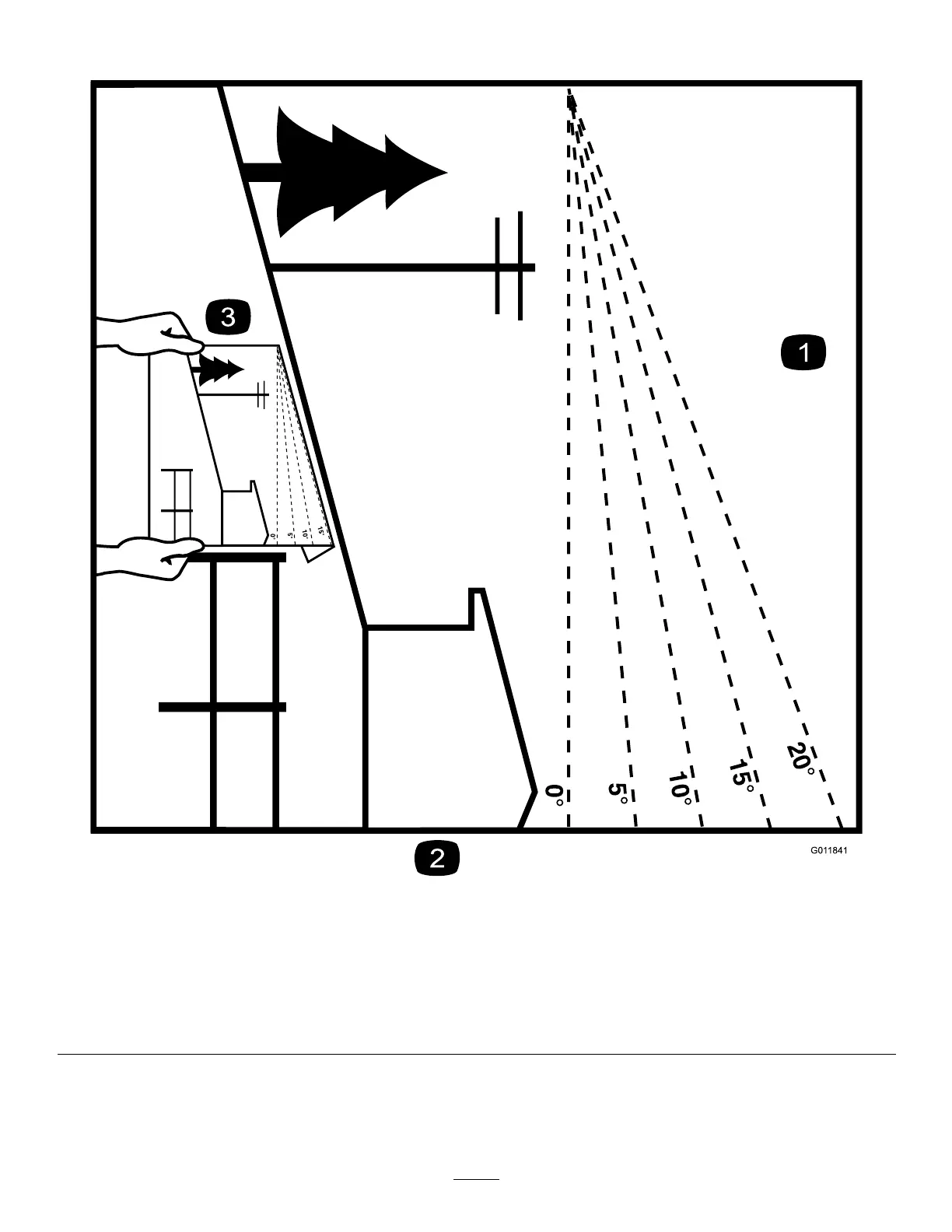

Slope Indicator
g01 1841
Figure 3
Y ou may copy this page for personal use.
1. The maximum slope you can operate the machine on is 15 degrees . Use the slope chart to determine the degree of slope of
hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line
to match the recommended slope.
2. Align this edge with a vertical surface, a tree, building, fence pole, etc.
3. Example of how to compare slope with folded edge
5
