UsingtheFuel-Shutoff

Valve

Closethefuel-shutoffvalvefortransport,maintenance,

andstorage(Figure37).

Ensurethatthefuel-shutoffvalveisopenwhen

startingtheengine.

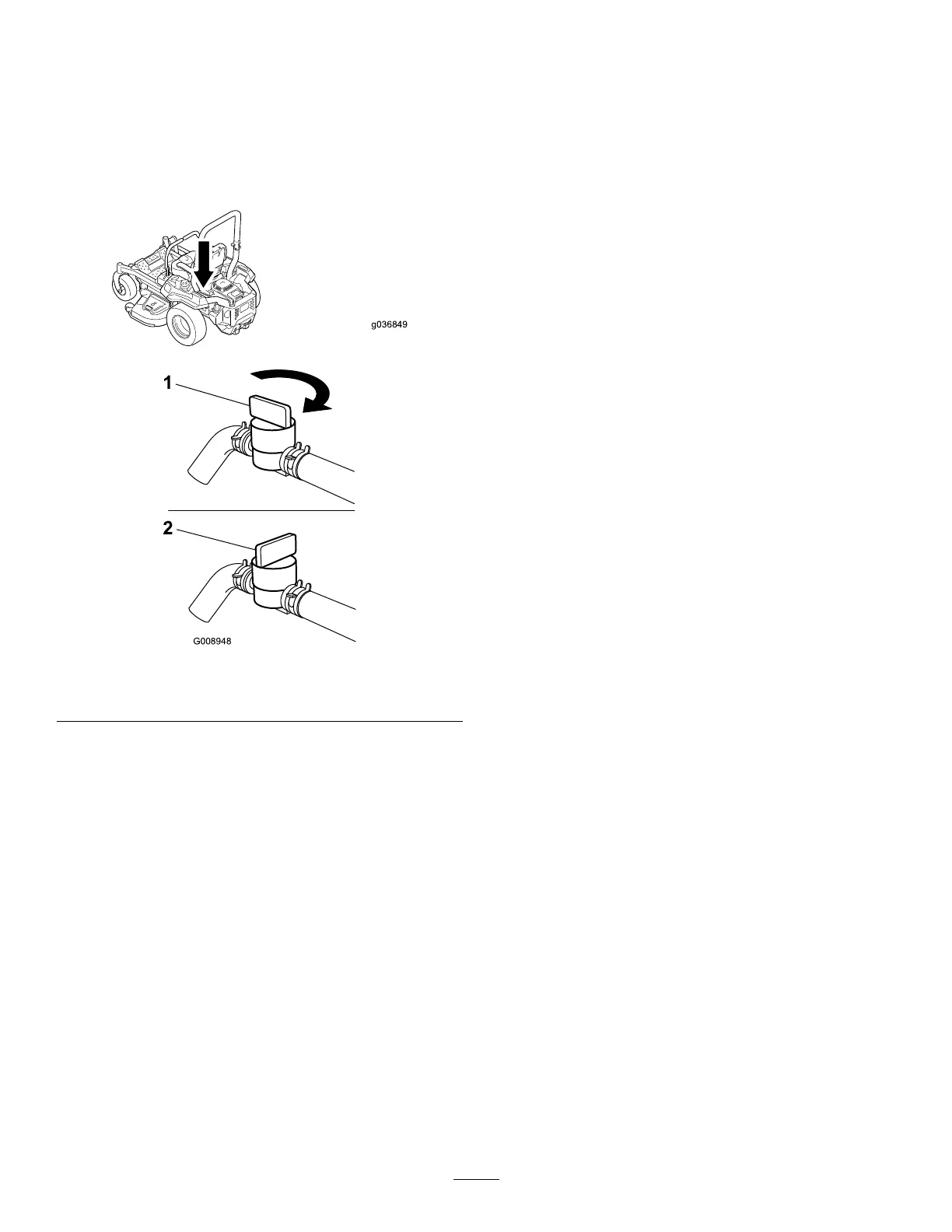

g036849

g008948

Figure37

1.ONposition2.OFFposition
