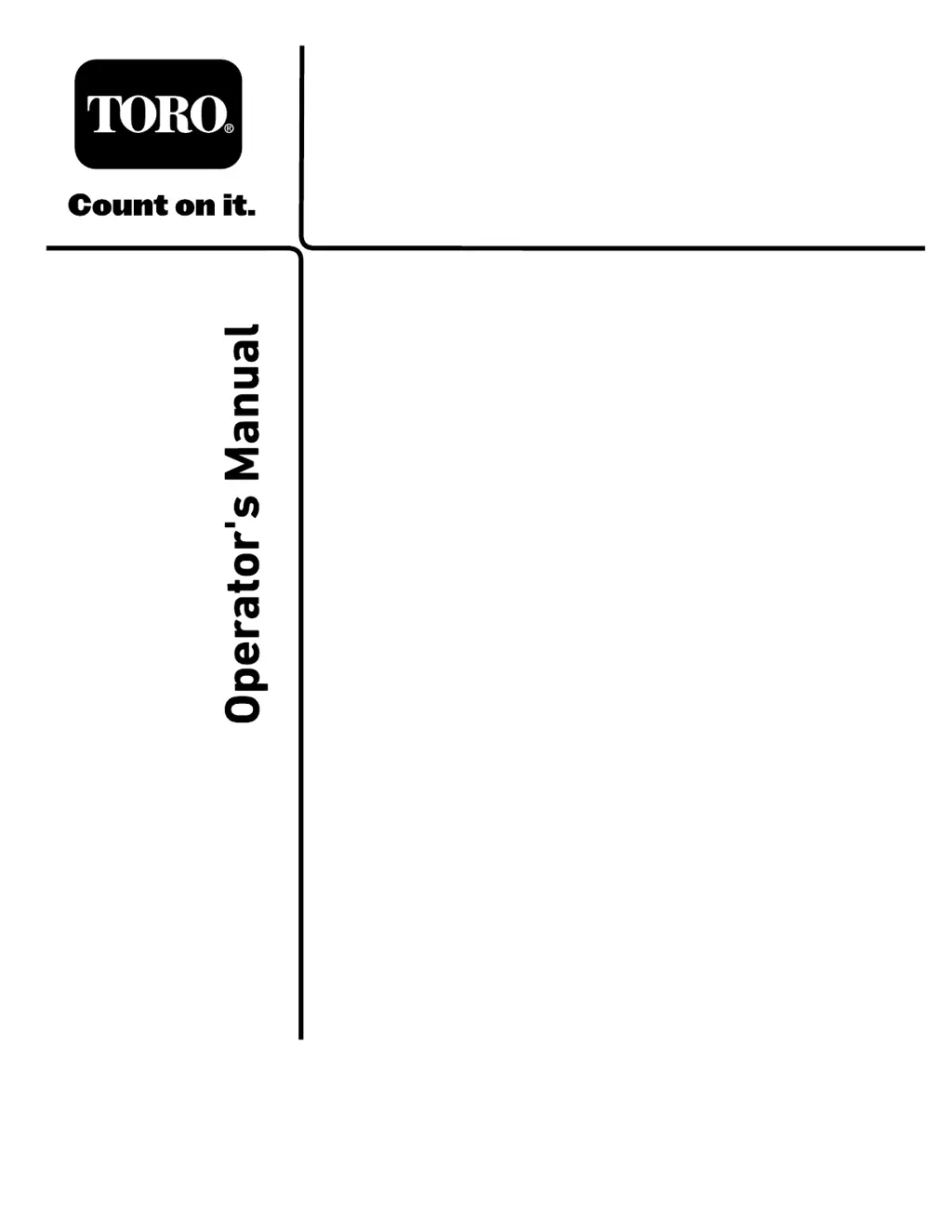

FormNo.3461-119RevA
ZMaster
®
Professional2000
SeriesRidingMower
With48in,52in,or60inTURBOFORCE
®
Mower
ModelNo.77281—SerialNo.400000000andUp
ModelNo.77281TA—SerialNo.400000000andUp
ModelNo.77283—SerialNo.400000000andUp
ModelNo.77285—SerialNo.400000000andUp
ModelNo.77288—SerialNo.400000000andUp
ModelNo.77291—SerialNo.400000000andUp
ModelNo.77291TA—SerialNo.400000000andUp
ModelNo.77294—SerialNo.400000000andUp
ModelNo.77294TA—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)
*3461-119*

Table of Contents

Other manuals for Toro 77283

Preview: Service Manual
Service Manual148 pages
Preview: Setup Instructions
Setup Instructions8 pages

Questions and Answers

  • Z
    zjonesSep 10, 2025
    Why is the malfunction indicator light on my Toro Lawn Mower on?
    • J
      Jason AndersonSep 10, 2025
      If the malfunction-indicator light (MIL) comes on in your Toro Lawn Mower, it could be due to several reasons. The engine may be too hot; if so, shut it off and let it cool. Old fuel in the fuel tank can also trigger the light, so use new fuel. Ensure the fuel-shutoff valve is fully open. Check and clean the air cleaner and precleaner, replacing them if necessary. Charge or replace the battery if it's not charged. Also, ensure that you are using a good 12 V battery and that it is fully charged. Check and replace any blown fuses. For issues such as incorrect or dirty fuel filters, unsecured connections to the sensors electronic-control unit (ECU) and fuel injectors, contact an Authorized Service Dealer.
  • M
    Melanie ReyesAug 23, 2025
    What to do if my Toro Lawn Mower starter does not crank?
    • M
      Ms. Alyssa TaylorAug 23, 2025
      If your Toro Lawn Mower's starter does not crank, it could be due to several reasons. First, ensure that the blade control switch (PTO) is disengaged. Next, verify that the parking brake is engaged by moving the motion control levers to the neutral lock position (park). A dead battery can also prevent the starter from cranking, so charge the battery. Check the electrical connections for corrosion or looseness, ensuring good contact. A worn or damaged switch or a blown fuse can also cause this issue, requiring testing and replacement of the faulty switch or fuse.
  • O
    Oscar PerezAug 27, 2025
    How to fix uneven cutting height on my Toro Lawn Mower?
    • T
      tinahallAug 27, 2025
      If the cutting height of your Toro Lawn Mower is uneven, there are several potential causes. Start by sharpening the blades. If a cutting blade is bent, install a new one. Ensure the mower is level from side-to-side and front-to-rear. If applicable, adjust the anti-scalp wheel height. Clean the underside of the mower deck. Adjust the tire pressure. For a bent blade spindle, contact an Authorized Service Dealer.
  • S
    Sean AyalaAug 27, 2025
    Why does my Toro 77283 engine lose power?
    • L
      Leah CaldwellAug 28, 2025
      If your Toro Lawn Mower engine loses power, it could be due to several reasons. The engine load might be excessive, so reduce the ground speed or raise the height-of-cut. A dirty air cleaner can also cause power loss, so clean or replace the air cleaner element. Check the oil level in the crankcase and add oil if it's low. Ensure the cooling fins and air passages above the engine are free from obstructions and thoroughly clean them. Inspect the fuel tank vent system for any blockages and repair if needed. Also, check the fuel filter for dirt and replace it if necessary. Finally, the fuel system might have dirt, water, or stale fuel, which requires cleaning and flushing.
  • A
    Andrew JonesAug 29, 2025
    How to fix uneven cutting height on Toro 77283?
    • S
      Sonya TuckerAug 29, 2025
      If your Toro Lawn Mower is producing an uneven cutting height, several factors could be responsible. Start by sharpening the blades. If the cutting blades are bent, replace them. Ensure the mower deck is level from side-to-side and front-to-rear. Clean the underside of the mower deck if it's dirty. Adjust the tire pressure to the correct level. Lastly, inspect the blade spindle and replace it if it's bent.
  • M
    Michael CummingsNov 23, 2025
    What to do if my Toro Lawn Mower engine won't start?
    • R
      Richard HoweNov 23, 2025
      If your Toro Lawn Mower engine won't start, starts with difficulty, or stalls frequently, there are several potential causes. Ensure the fuel tank isn't empty and fill it if needed. Check that the fuel-shutoff valve is open. Also, verify the oil level in the crankcase and add oil if it's low. Make sure the throttle is positioned midway between the SLOW and FAST settings. Replace a dirty fuel filter. Clean or replace the air-cleaner element if it's dirty. Check the seat-switch indicator and replace the seat if necessary. Inspect the spark-plug wire connection. For issues such as dirt, water, or stale fuel in the fuel system, a worn or damaged relay or switch, contact an Authorized Service Dealer. Adjust or replace the spark plug if it is fouled or improperly gapped. Check the electrical con...
  • T
    Theresa ToddSep 18, 2025
    What to do if the blades on my Toro Lawn Mower won't rotate?
    • C
      carrie09Sep 18, 2025
      If the blades on your Toro Lawn Mower aren't rotating, install a new drive belt if the current one is worn, loose, or broken. Install the drive belt and check the adjusting shafts and belt guides for the correct position if the drive belt is off of the pulley. Install a new mower belt if the mower belt is worn, loose, or broken. For a faulty power-takeoff (PTO) switch or PTO clutch, contact an Authorized Service Dealer.
  • M
    mmartinSep 22, 2025
    What causes the clutch on my Toro Lawn Mower not to engage?
    • D
      Donna TrujilloSep 22, 2025
      If the clutch on your Toro Lawn Mower does not engage, replace the fuse. Check the coil resistance, battery charge, charging system, and wiring connections, and replace components if necessary. Check the coil resistance, battery charge, charging system, and wiring connections and replace parts if necessary if there is low voltage supply at the clutch. Replace the clutch if the coil is damaged. Repair or replace the clutch lead wire or electrical system. Clean the connector contacts if there is inadequate current supply. Remove the shim or replace the clutch if the rotor/armature air gap is too large.
  • T
    Traci TuckerSep 8, 2025
    Why is my Toro 77283 Lawn Mower engine overheating?
    • B
      Bianca SandersSep 8, 2025
      If your Toro Lawn Mower's engine is overheating, several factors could be the cause. First, the engine load might be excessive, so try reducing the ground speed. Also, check the oil level in the crankcase and add oil if it's low. Obstructions in the cooling fins and air passages under the engine-blower housing can also cause overheating; remove any obstructions. A dirty air cleaner can contribute to this issue, so clean or replace the air-cleaner element. Finally, dirt, water, or stale fuel in the fuel system may be the culprit, in which case you should contact an Authorized Service Dealer.
  • J
    Jennifer CampbellSep 5, 2025
    Why does my Toro Lawn Mower pull to one side?
    • L
      Leslie StewartSep 6, 2025
      If your Toro Lawn Mower pulls to the left or right (with levers fully forward), the tracking may need adjustment. Additionally, ensure both smart speed shift forks are correctly aligned and installed on the motion control linkage. Incorrect tire pressure in the drive tires can also cause this issue, so adjust the tire pressure accordingly.
