AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheight-of-cut,adjustthe
heightoftheanti-scalprollers.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersasshowninFigure
34,Figure35,andFigure36.

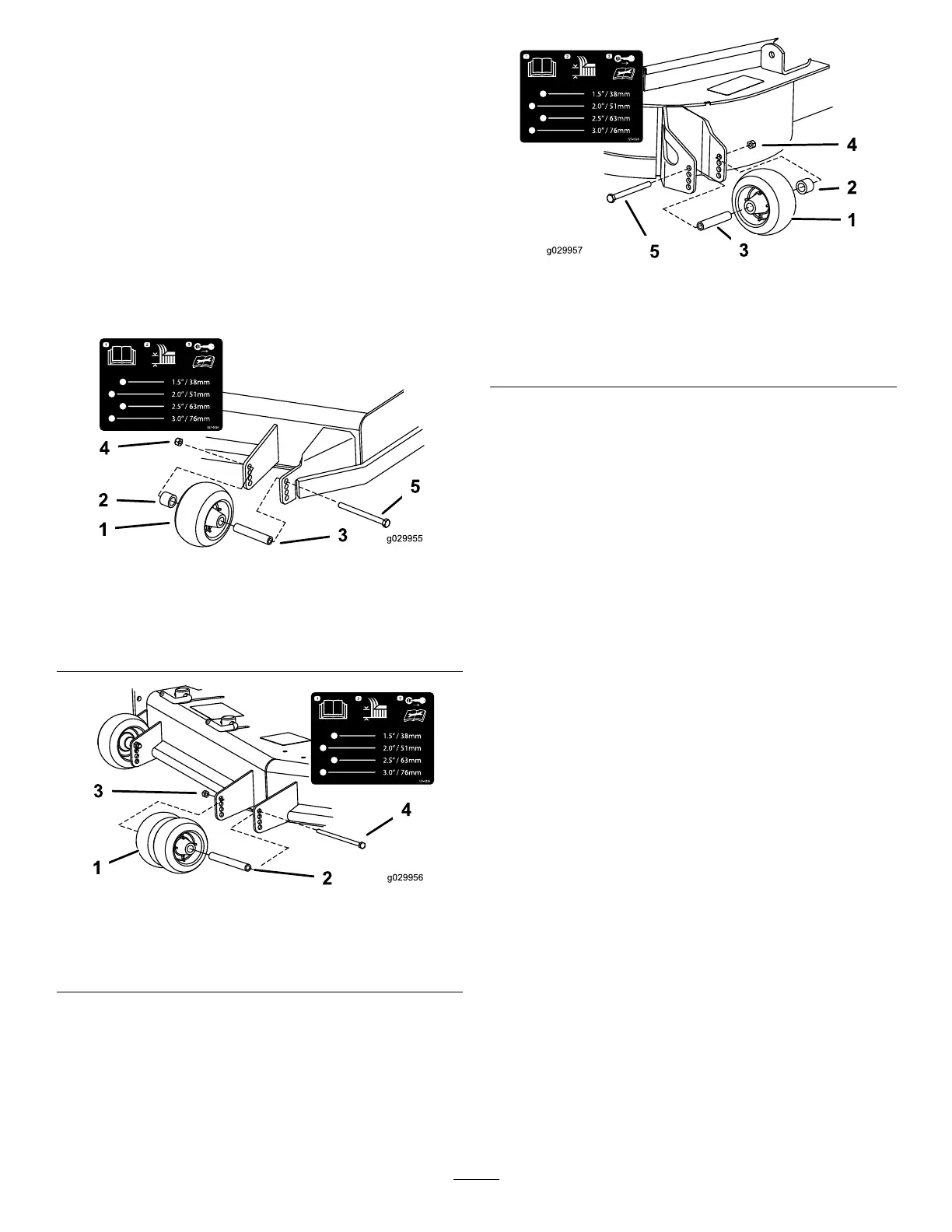

g029955
Figure34
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
g029956
Figure35
1.Anti-scalproller3.Flangenut
2.Bushing4.Bolt
g029957
Figure36
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
