AdjustingtheRear-Shock

Assemblies

MachineswithMyRide™

SuspensionSystemOnly

TheMyRide™suspensionsystemadjuststoprovide

asmoothandcomfortableride.Youcanadjustthe

rear2-shockassembliestoquicklyandeasilychange

thesuspensionsystem.Positionthesuspension

systemwhereyouaremostcomfortable.

Theslotsfortherear-shockassemblieshave

detentpositionsforreference.Youcanpositionthe

rear-shockassembliesanywhereintheslot,notjustin

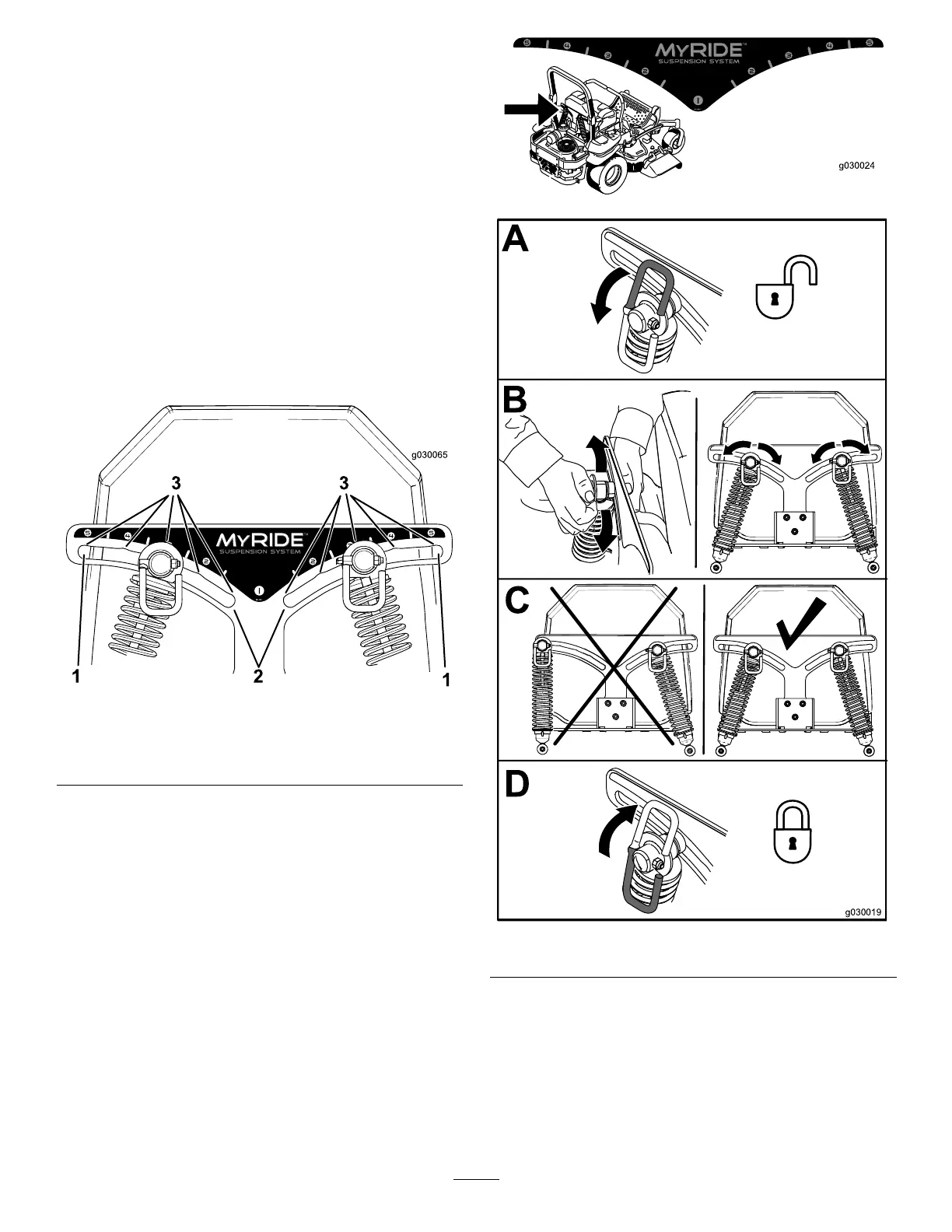

thedetentpositions.Thefollowinggraphicshowsthe

positionforasoftorrmrideandthedifferentdetent

positions(Figure15).

g030065

Figure15

1.Firmestposition3.Detentsintheslots

2.Softestposition

Note:Ensurethattheleftandrightrear-shock

assembliesarealwaysadjustedtothesamepositions.

Adjusttherear-shockassemblies(Figure16).

g030024

g030019

Figure16
