MyRide® Suspension Adjustment Lever
For Machines with the MyRide Suspension System

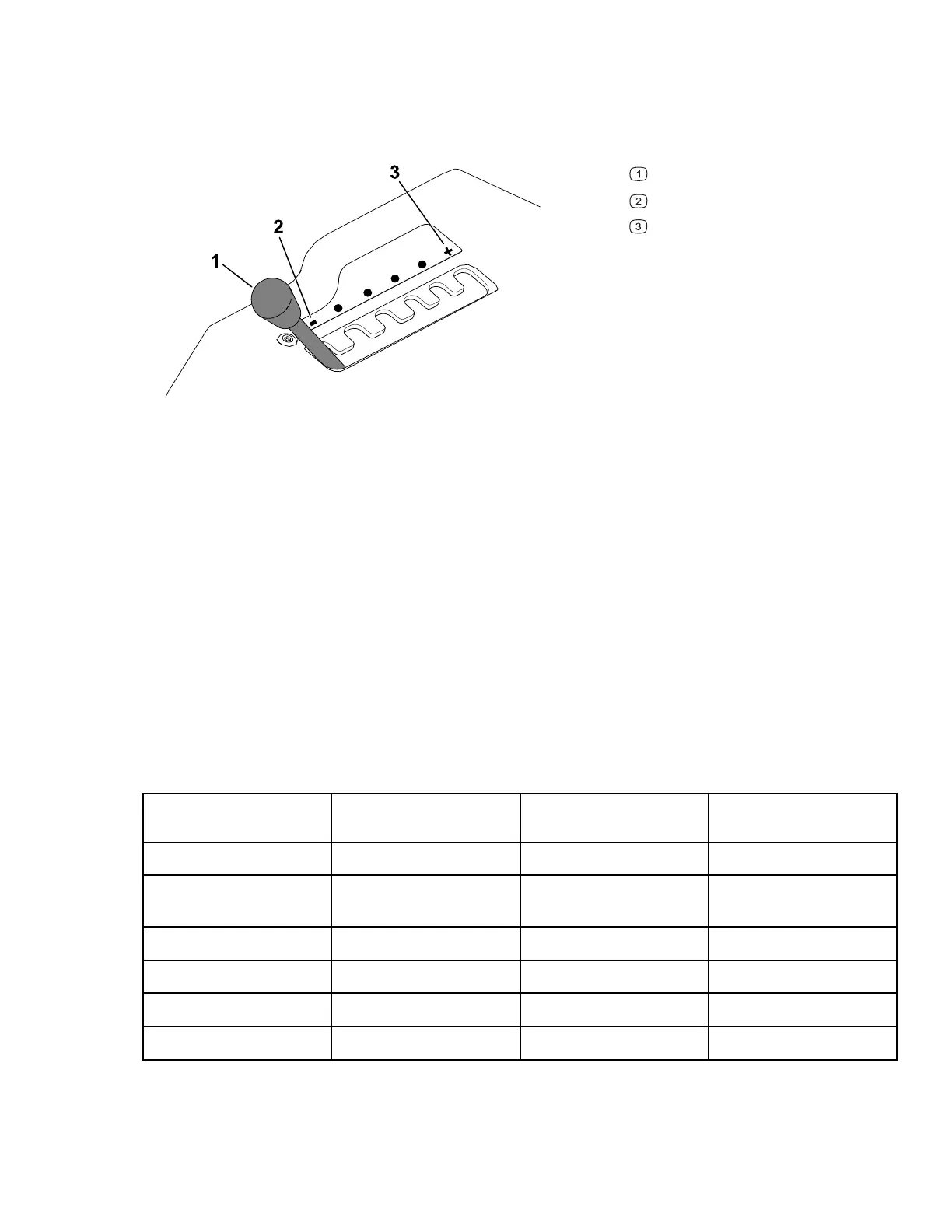

Use the adjustment lever to adjust the seat suspension for a smooth and comfortable ride.
G292102s
Adjustment lever
Softer suspension
Firmer suspension
Height-of-Cut Pin
The height-of-cut pin works with the foot pedal to lock the deck in a specific cutting height.
Adjust the height of cut only when the machine is not moving.
Deck-Lift Pedal
Use the deck-lift pedal to briefly raise the mower deck from the seated position to avoid
obstacles or when adjusting the height of cut.
Specifications
Note: Specifications and design are subject to change without notice.
Model 77501 Model 77502 and
77515TA
Model 77520TA
Cutting width 127 cm (50 inches) 127 cm (50 inches) 134 cm (54 inches)
Width with deflector
down
156 cm (61-1/2
inches)
156 cm (61-1/2
inches)
166 cm (65-1/2
inches)
Width with deflector up 130 cm (51 inches) 130 cm (51 inches) 140 cm (55 inches)
Length 203 cm (80 inches) 203 cm (80 inches) 203 cm (80 inches)
Height 116 cm (45-1/2 inches) 119 cm (47 inches) 116 cm (45-1/2 inches)
Weight 292 kg (644 lb) 310 kg (684 lb) 310 kg (684 lb)
3464-621A Page 3–4 Product Overview: MyRide® Suspension Adjustment Lever
