Installing the Mower Deck (continued)
G451546
6. Attach the front support rod to the deck
bracket
with the hairpin cotter and washer.
7. Install the mower belt onto the engine pulley.
Replacing the Grass Deflector
DANGER
An uncovered discharge opening allows objects to be thrown toward you or
bystanders. Also, contact with the blade could occur. Thrown objects or blade
contact will cause serious injury or death.
Do not operate the mower with the discharge deflector raised, removed, or altered
unless a grass collection system or mulch kit is in place and working properly.
1. Park the machine on a level surface, disengage the blade-control switch, and move the
motion-control levers outward to the P
ARK position.
2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving
the operating position.
3. Remove the nut from the rod under the mower deck.

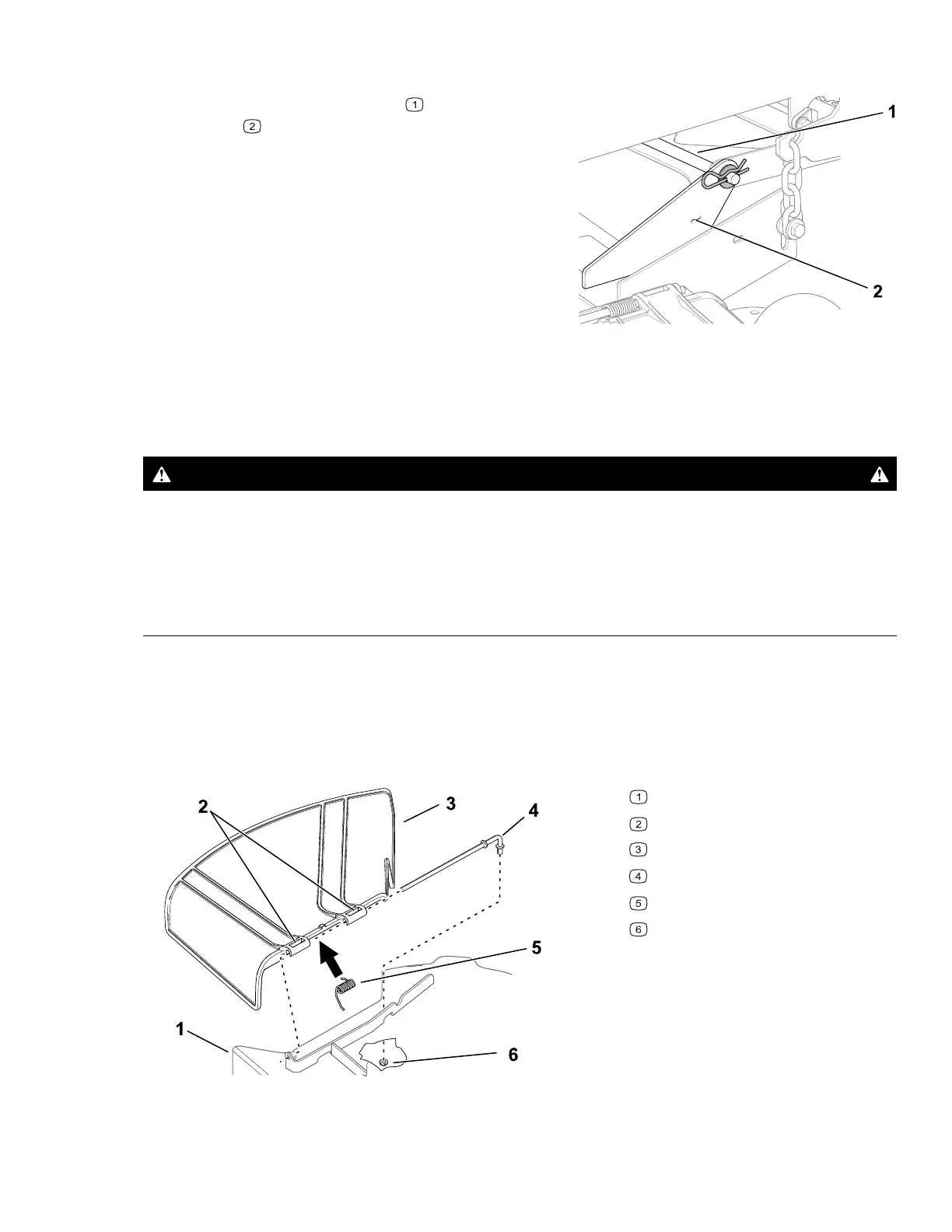

G451625
Mower deck
Grass-deflector pivot
Grass deflector
Rod
Spring
Nut
