Reelmaster 7000−D Hydraulic SystemPage 5 − 3
General Information
Operator’s Manual
The Operator’s Manuals provide information regarding
the operation, general maintenance and maintenance
intervals for your Reelmaster machine. Refer to both the
Traction Unit Operator’s Manual and the Cutting Unit
Operator’s Manual for additional information when ser-
vicing the machine.

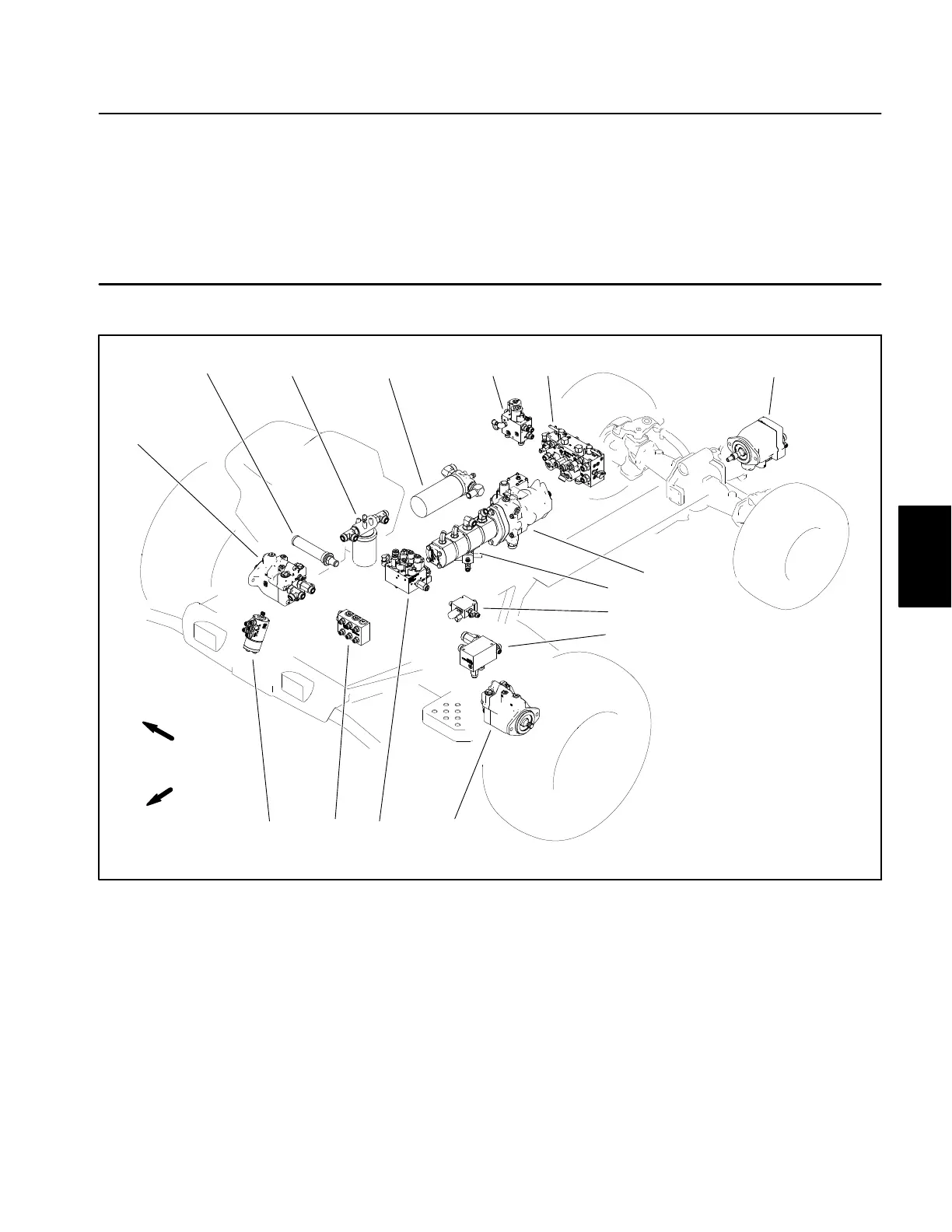

Hydraulic Component Locations
1. Piston pump P1
2. Gear pump P2 − P5
3. HI/LOW range manifold
4. Rear traction manifold
5. Front wheel motor (2)
6. Lift control manifold
7. Lift junction manifold
8. Steering control valve
9. Suction strainer
10. Charge filter
11. Return filter
12. Fan control manifold
13. Mow control manifold
14. Rear axle motor
Figure 20
1
2
3
4
5678
910 11 12
5
13 14
FRONT
RIGHT
Hydraulic
System
