Replacing
the Grass Deflector
1. Stop the engine, set the parking brake, remove
the key and disconnect the spark plug wire(s)
from the spark plug(s).
2. Remove the locknuts, bolts and springs holding
the deflector mounts to the pivot brackets
(Fig. 45).
3. If the pivot brackets need to be replaced, remove
the carriage bolts and cone locknuts holding the
old brackets to the top of the discharge opening,
then install the replacement pivot brackets. Make
sure the carriage bolt heads are on the inside of
the cutting unit (Fig. 45).
4. Install the deflector mounts onto the pivot
brackets with the bolts, springs and locknuts.
Make sure the straight ends of the springs are
positioned between the deflector mounts and the
grass deflector (Fig. 45).
5. Tighten the locknuts until they contact the pivot
brackets (Fig. 45).
IMPORTANT: The grass deflector must be
spring-loaded in the down position. Lift the
deflector up to test that it snaps to the full
down position.
2
4
7
1
5
6
3
m–2549

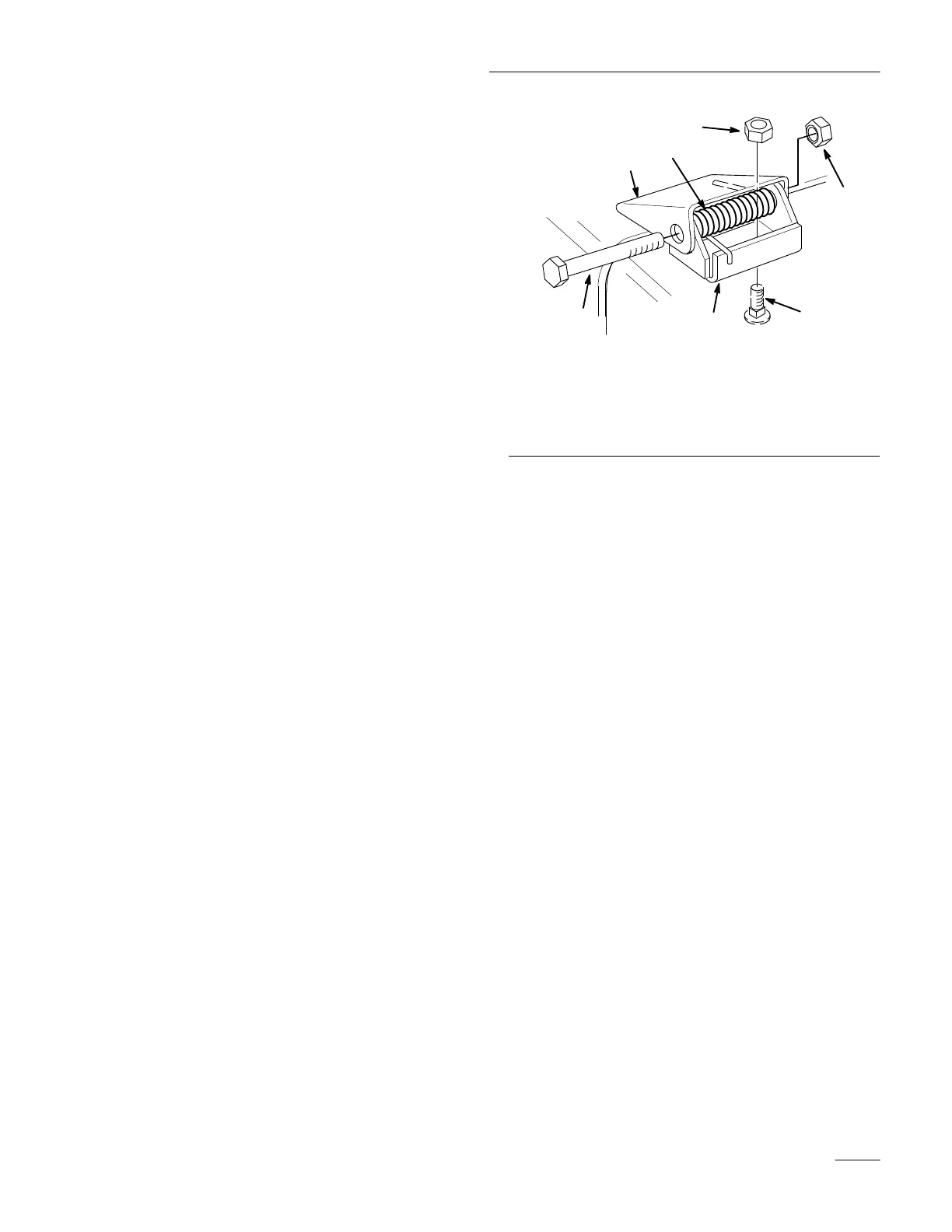

Figure 45
1. Bolt
2. Deflector
Mount
3. Spring
4.
Cone Locknut
5.
Pivot Bracket
6.
Carriage Bolt
7. Locknut
Replacing
the Deck Belt
Squealing when the belt is rotating, blades slipping
when cutting grass, frayed belt edges, burn marks and
cracks are signs of a worn deck belt. Replace the deck
belt if any of these conditions are evident.
1. Stop the engine, set the parking brake, remove
the key and disconnect the spark plug wire(s)
from the spark plug(s).
2. Remove belt covers over outside spindles.
3. Loosen outer nut on spring eye bolt (Fig. 46).
