Adjusting the Service Brakes (continued)

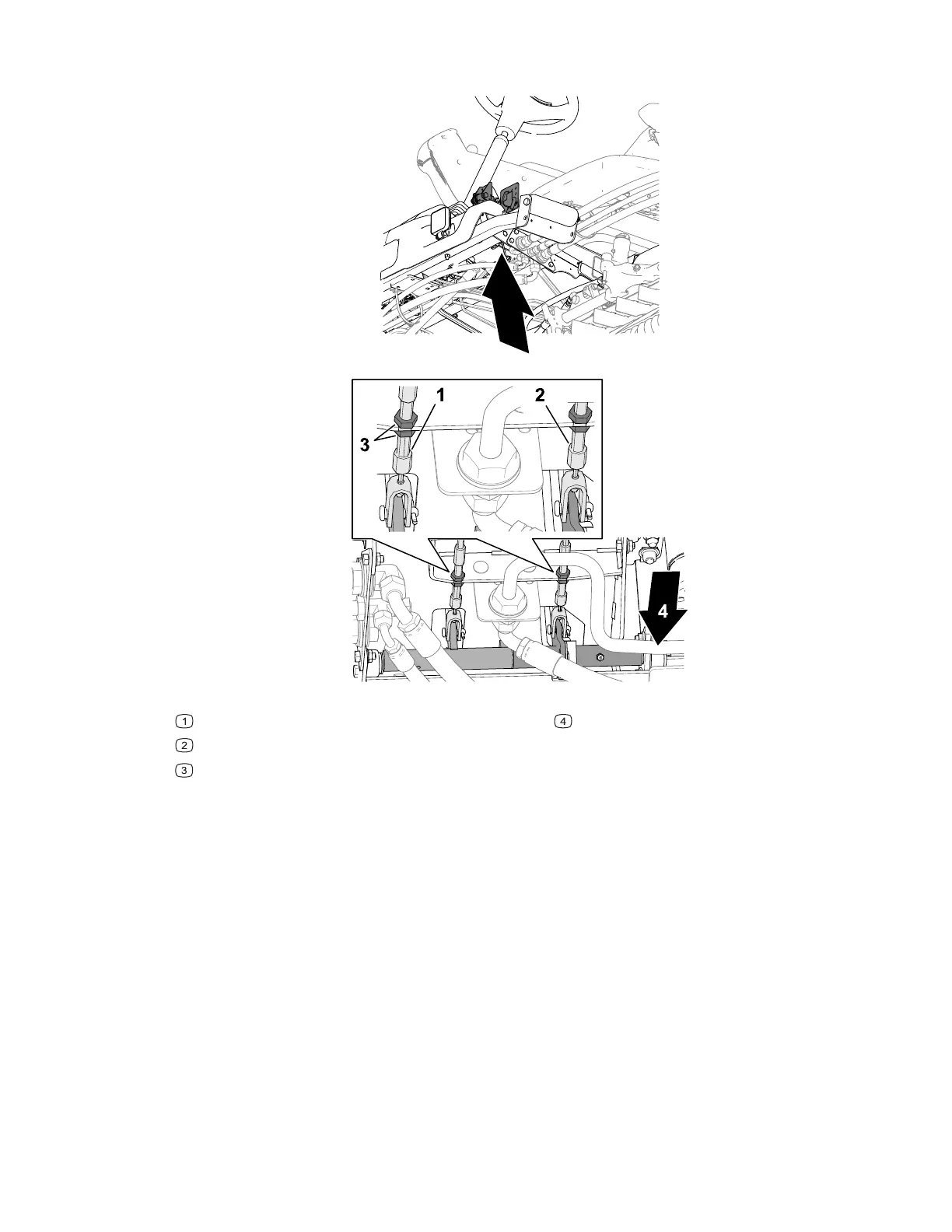

G425405
G425406
Left brake cable
Right brake cable
Jam nuts
Front of the machine
4. To reduce free travel of the brake pedals, tighten the rear jam nut to move the cable
rearward until the brake pedals have 0 to 13 mm (0 to 1/2 inch) of free travel.
Note: Ensure that there is no brake-cable tension when the pedal is released.
5. Tighten the front jam nut after the brakes are adjusted correctly.
6. If needed, repeat steps 3 through 5 at the other brake cable.
3466-702A Page 6–43 Maintenance: Brake Maintenance
