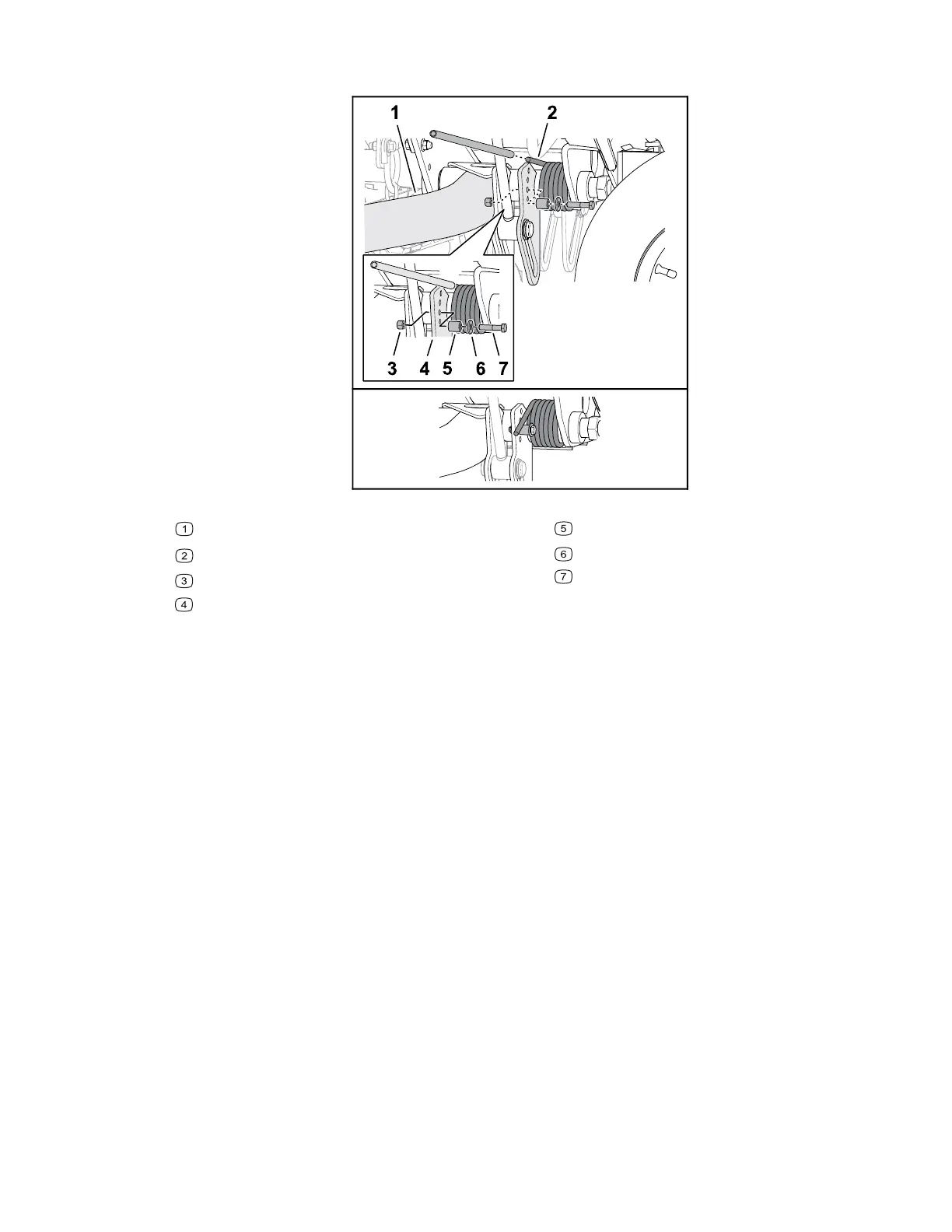

Adjusting the Cutting-Unit Counterbalance (continued)
G424029
Lift arm (rear—cutting unit #2 or #3)
Torsion spring
Locknut
Lift-arm plate
Spacer
Washer
Bolt
3. While holding the spring, remove the bolt, washer, and locknut from the lift plate.
4. Align the spring leg above the desired hole location.
5. Install the bolt, washer, spacer, and locknut at the hole location.
6. Slowly lower the spring leg onto the spacer.
7. Repeat steps 2 through 6 at the rear cutting-unit-lift arm.
3466-702A Page 5–17 Operation: During Operation
