Toro FLX35-6 Series User Manual

Nozzle Performance Chart

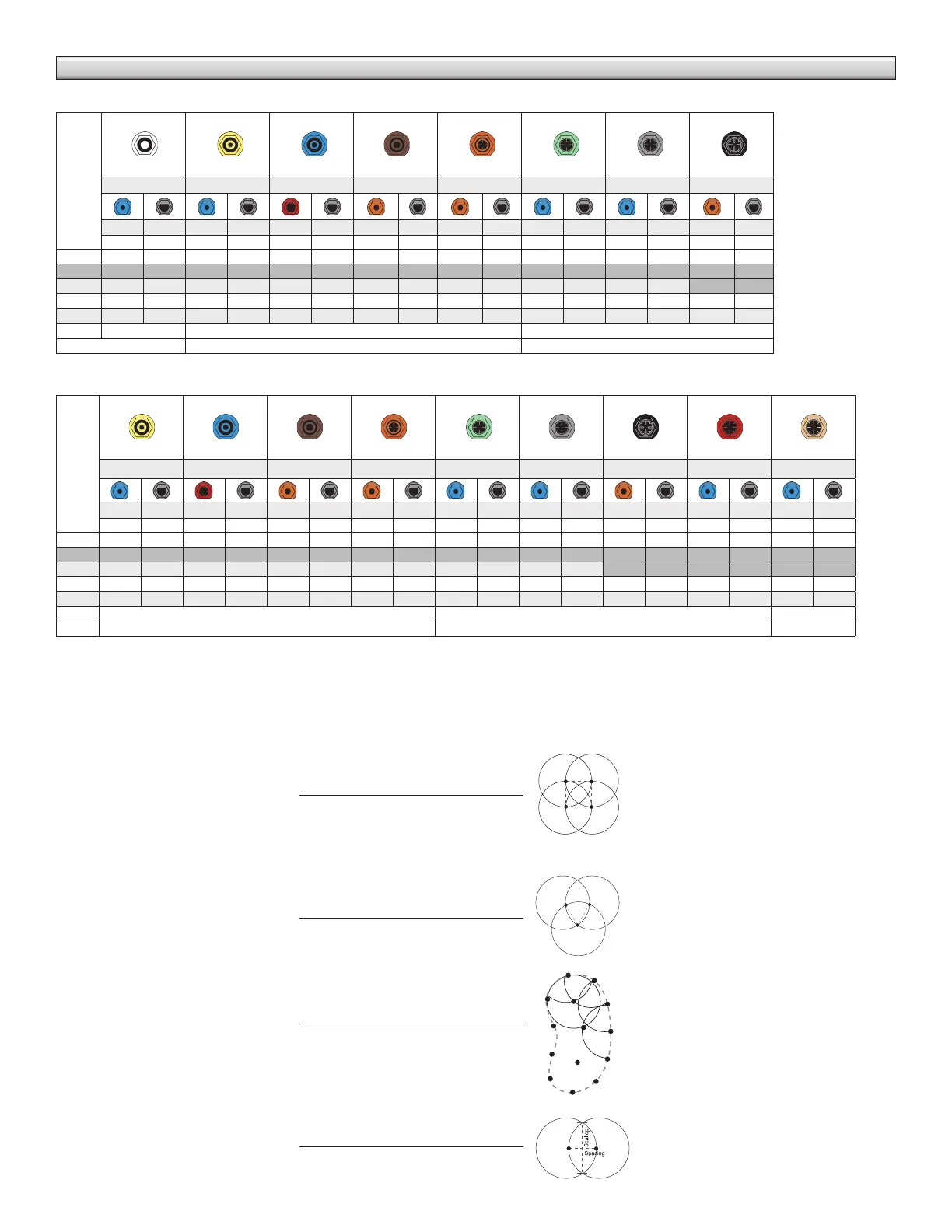

FLX35-6 Series Performance Chart
Base
Pressure
Nozzle Set 30
(White)
Nozzle Set 31
(Yellow)
Nozzle Set 32
(Blue)
Nozzle Set 33
(Brown)
Nozzle Set 34
(Orange)
Nozzle Set 35
(Green)
Nozzle Set 36
(Gray)
Nozzle Set 37
(Black)
102-2208 102-4587 102-4588 102-4589 102-0728 102-0729 102-0730 102-4261
Blue Gray Blue Gray Red Gray Orange Gray Orange Gray Blue Gray Blue Gray Orange Gray
102-2925 102-2910 102-2925 102-2910 102-2928 102-2910 102-2926 102-2910 102-2926 102-2910 102-2925 102-2910 102-2925 102-2910 102-2926 102-2910
PSI Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM
50 42 7.1 52 13.7 61 17.1 64 20.2 69 27.4 — — — — — —
65 45 8.7 54 15.5 63 20.5 66 22.9 74 30.0 76 32.4 80 34.0 — —
80 46 9.6 57 17.0 67 22.6 70 25.3 77 33.2 79 35.8 84 37.5 86 40.8
100 48 11.2 59 18.9 72 25.2 74 28.2 80 37.0 84 39.9 88 42.5 92 45.3
Stator 102-6929 Blue 102-1939 Yellow 102-1940 White
Conversions FLX35-6-3134 FLX35-6-3537
FLX55-6 Series Performance Chart
Base
Pressure
Nozzle Set 51
(Yellow)
Nozzle Set 52
(Blue)
Nozzle Set 53
(Brown)
Nozzle Set 54
(Orange)
Nozzle Set 55
(Green)
Nozzle Set 56
(Gray)
Nozzle Set 57
(Black)
Nozzle Set 58
(Red)
Nozzle Set 59
(Beige)
102-4587 102-4588 102-4589
102-0728 102-0729 102-0730 102-4261 102-4260 102-4259
Blue Gray Red Gray Orange Gray Orange Gray Blue Gray Blue Gray Orange Gray Blue Gray Blue Gray
102-2925 102-2910 102-2928 102-2910 102-2926 102-2910 102-2926 102-2910 102-2925 102-2910 102-2925 102-2910 102-2926 102-2910 102-2925 102-2910 102-2925 102-2910
PSI
Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM
50 52 13.9 62 17.4 66 20.7 69 28.6 — — — — — — — — — —
65 54 15.7 64 20.8 68 23.4 74 31.2 76 33.8 81 35.7 — — — — — —
80 57 17.2 68 22.9 72 25.8 77 34.4 79 37.2 85 39.4 89 43.6 92 47.5 96 57.0
100 59 19.1 73 25.5 76 28.7 80 38.2 84 41.3 89 43.7 94 48.5 95 51.1 100 61.1
Stator 102-1939 Yellow 102-1940 White
102-1941
Conver. FLX55-6-5154 FLX55-6-5558 FLX55-6-59
n Not recommended at these pressures. Radius shown in feet.
Toro recommends the use of a 1
1
⁄4" swing joint at flows over 25-GPM (95-LPM). Sprinkler radius data collected in Toro’s zero wind test facility per ASAE standard S398.1.
Actual site conditions must be considered when selecting the appropriate nozzle.
All sprinklers are equipped with the selectable pilot valve that allows settings at 50, 65, 80 and 100 PSI.
Precipitation Rate Formulas
• Square-spaced sprinklers in pattern:
GPM of full circle x 96.3
(Spacing)
2
• Triangular-spaced sprinklers in
pattern:
GPM of full circle x 96.3
(Spacing)
2
(0.866)
• Area and flow:
Total GPM of zone x 96.3
Total irrigated
Square feet of zone
• Single row:
GPM of full circle x 96.3
(Spacing) (Scallop)
Sprinkler Spacing Guidelines
• Square Spacing
No wind - 55% of diameter
4 mph wind - 50% of diameter
8 mph wind - 45% of diameter
• Triangular Spacing
No wind - 60% of diameter
4 mph wind - 55% of diameter
8 mph wind - 50% of diameter
• Single-Row Spacing
No wind - 50% of diameter
4 mph wind - 50% of diameter
8 mph wind - 45% of diameter
Note: Designing for zero (0) mph
wind conditions is not recommended.
Design for worst wind conditions.
For additional information, refer to
Toro Technical Data Manual,
form number 490-1737.
