Toro FLX35-6 Series - Adjustment Band Indicators; Trajectory Adjustment Procedure

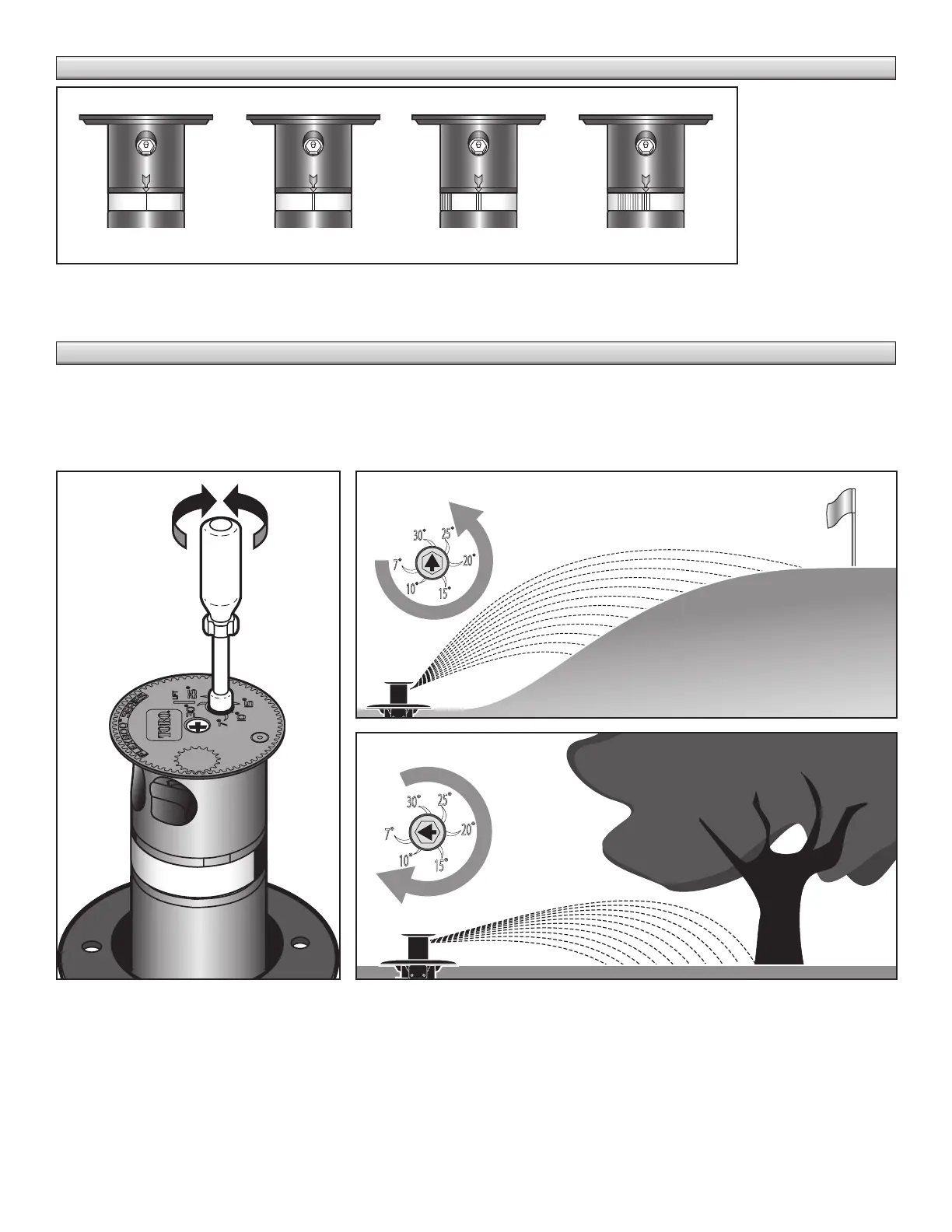

Adjustment Band Indicators
90° 180° 270° 360°
Figure 7
For reference, the adjustment band of the FLX35-6 and FLX55-6 has markers at predetermined arcs. By aligning the
adjustment band indicators to the turret arrow, you can set the sprinkler arc to 90°, 180°, 270° or 360°. The arc is
adjustable from 40°–330° in 5° increments. See Figure 7.
Trajectory Adjustment Procedure
The FLX35-6 and FLX55-6 sprinkler models are equipped with the TruJectory
TM
nozzle spray angle adjustment feature.
The trajectory adjusts from the top of the sprinkler enabling fine-tuning from 7˚–30˚ to compensate for windy conditions,
spraying under low-hanging obstructions, up bunker faces and along natural habitats.
To adjust the nozzle spray trajectory angle, use a 5/16" nut driver socket (995-105) as shown in Figure 8. Turn the
trajectory adjustment clockwise to decrease (Figure 9) or counter clockwise to increase (Figure 10).
Figure 8 Figure 9
Figure 10
