Parking-Brake Latch

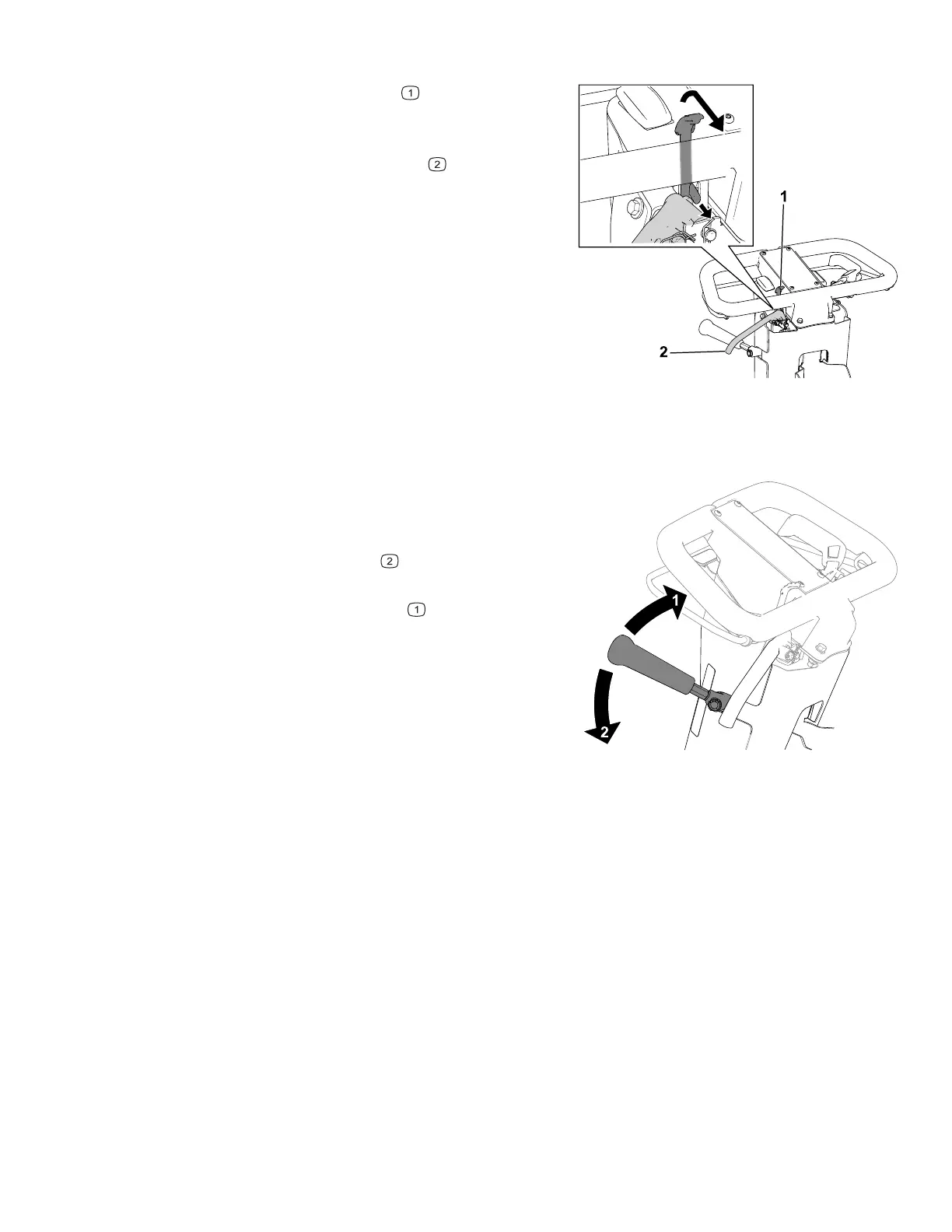

G404700
• Engage the parking brake : Rotate the
parking-brake latch toward you while the
service-brake lever is engaged.
• Disengage the parking brake
: Pull the
service-brake lever toward the handle.
Cutting-Unit-Drive Lever
G404701
Use the cutting-unit-drive lever to engage or
disengage the cutting unit while the clutch bail is
engaged.
• Engage the cutting unit
: Move the lever
down.
• Disengage the cutting unit
: Move the lever
up.
Hour Meter
The hour meter records the total running time of the engine to assist in scheduling regular
maintenance.
Product Overview: Controls Page 4–5 3460-887 A
