Toro Greensmaster Flex 2120 Service Manual

Greensmaster Flex 1800/1820/2100/2120Page 6 − 12Chassis and Controls

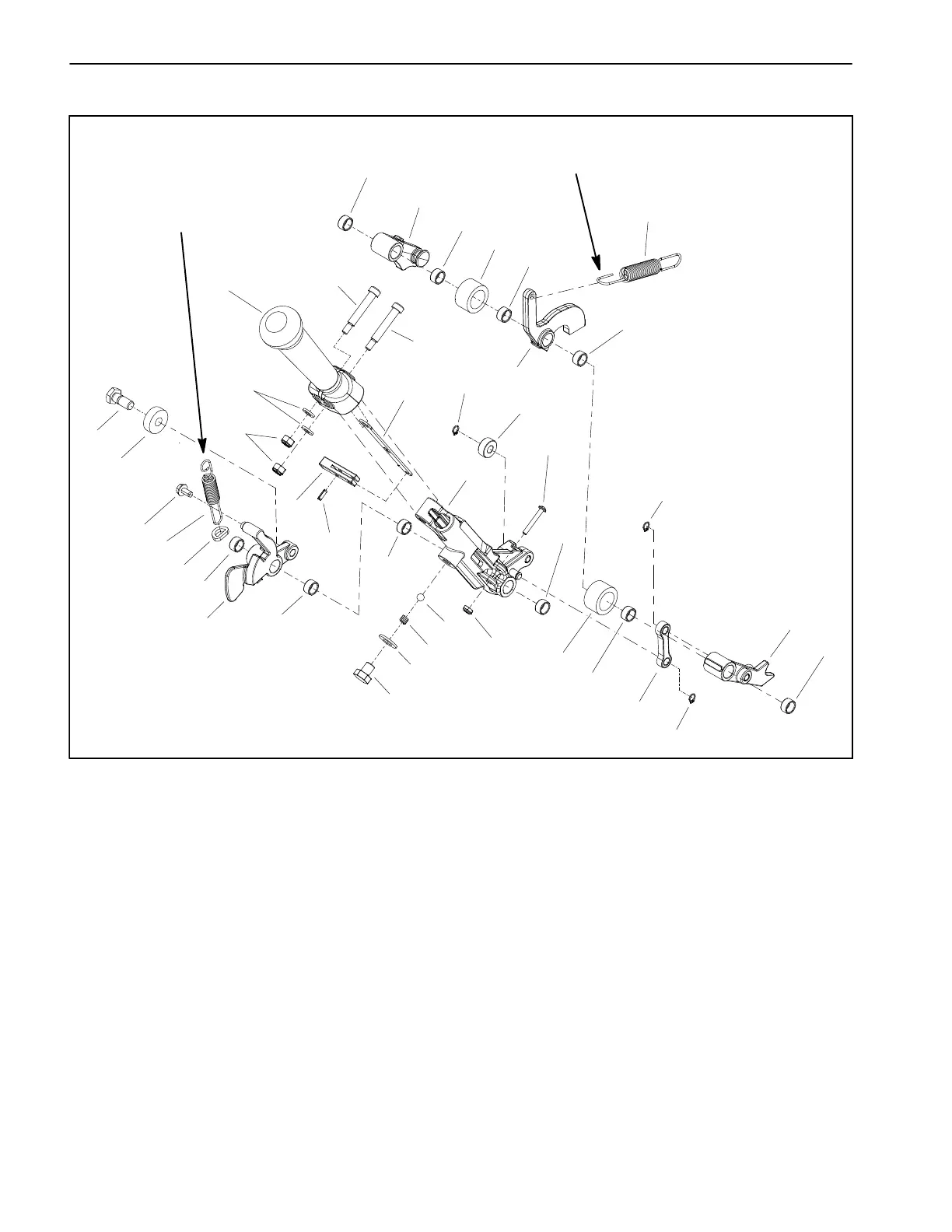

Traction and Reel Drive Engagement Lever Assembly
1. Washer head screw
2. Detent ball
3. Detent spring
4. Shift arm link
5. Shoulder screw (2 used)
6. Shifter link
7. Bumper (2 used)
8. Spring collar
9. Spacer
10. Spring lever
11. Shift handle
12. Extension spring
13. Latch pin
14. Bushing (10 used)
15. Shifter latch
16. Transport lever
17. Reel shift lever
18. Reel cam lever
19. Ball bearing
20. Cap screw
21. Screw
22. Flat washer
23. Flat washer
24. Shoulder screw
25. Lock nut (2 used)
26. Lock nut
27. Roll pin
28. Retaining ring (3 used)
29. Extension spring
Figure 14
2
3
4
7
9
12
20
22
27
28
28
6
1
5
11
13
14
15
18
19
21
23
24
25
26
5
14
14
7
14
14
14
14
14
14
28
14
29
17
10
16
8
Note orientation
of spring hook
Note orientation
of spring hook
