Greensmaster Flex 1800/1820/2100/2120 Belt Driven Groomer (Optional)Page 8 − 7
Service and Repairs
Groomer Belt Replacement (Forward Rotating Groomer Drive)
1. Position machine on a clean and level surface with
engine stopped. Engage parking brake.
2. Remove three (3) lock nuts that secure groomer
drive cover, then remove cover (Fig. 2).
3. Pivot idler pulley by placing a 12mm wrench on
pulley nut and rotating idler bracket to relax belt tension.
Slip groomer drive belt off pulleys (Fig. 3). Carefully re-
lease idler bracket.
IMPORTANT: Make sure that the drive belt is cen-
tered on the pulleys and correctly aligned with
pulley grooves after installation.
4. Install new drive belt to drive pulley, idler pulley and
driven pulley observing correct belt routing (Fig. 3).
5. Secure belt cover to machine with three (3) lock nuts
(Fig. 2).

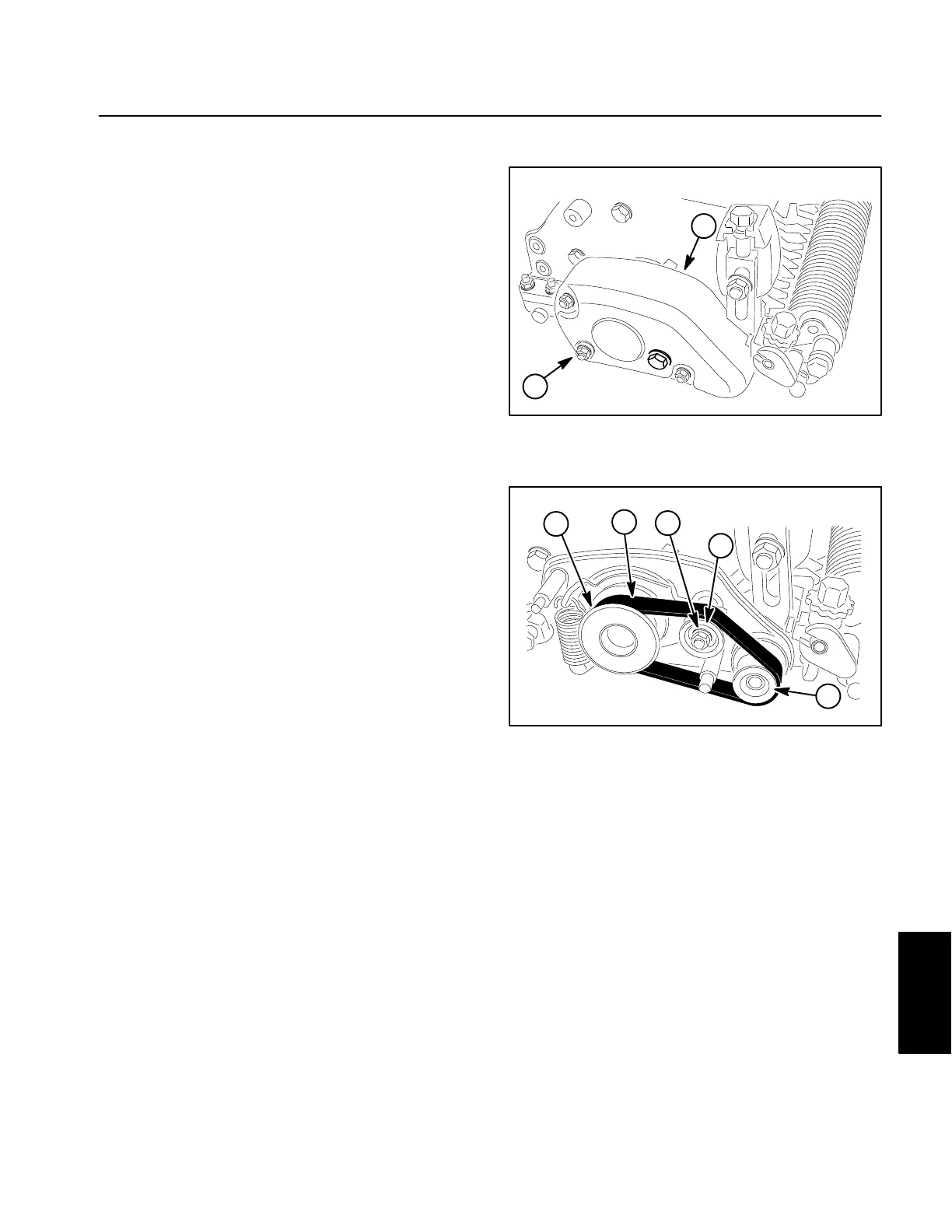

1. Groomer drive cover 2. Lock nut (3 used)
Figure 2
1
2
1. Drive pulley
2. Idler pulley
3. Idler pulley nut
4. Driven pulley
5. Groomer drive belt
Figure 3
1
2
3
4
5
Groomer
To Next Page
