Toro Greensmaster Flex 2120 Service Manual

Greensmaster Flex 1800/1820/2100/2120Traction and Reel Drive System Page 4 − 12

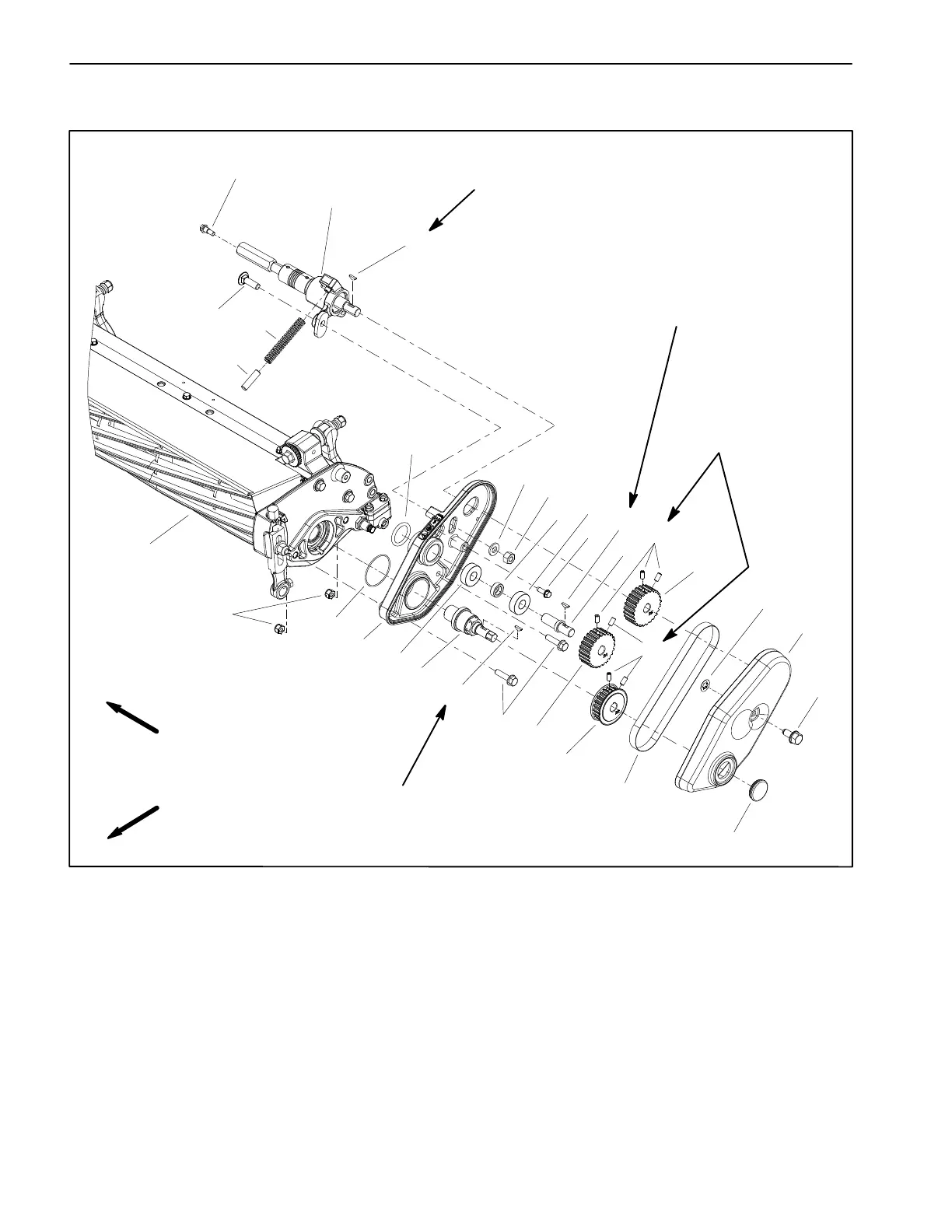

Reel Drive Assembly
1. Reel drive housing
2. O−ring
3. Carriage screw
4. Washer head screw
5. Flange head screw (2 used)
6. Hex nut (2 used)
7. Reel drive shaft
8. Reel pulley (22 tooth) (aluminum)
9. O−ring
10. Reel idler shaft
11. Reel pulley (24 tooth) (black)
12. Bearing housing assembly
13. Cover plug
14. Reel pulley (25 tooth) (red)
15. Belt
16. Compression spring
17. Hardened washer
18. Hex nut
19. Reel drive cover
20. Shoulder bolt
21. Spring pin
22. Woodruff key (3 used)
23. Set screw (2 used per pulley)
24. Ball bearing (2 used)
25. Spacer
26. Push nut
27. Cutting unit
28. Flange head screw
Figure 16
FRONT
RIGHT
Antiseize
11
3
4
6
14
9
1
12
2
16
18
20
5
19
21
7
8
13
22
24
25
26
28
17
24
22
22
10
15
23
23
27
60 to 65 in−lb
(6.8 to 7.3 N−m)
Lubricant
Antiseize
Lubricant
Antiseize
Lubricant
NOTE: Cutting unit clip adjustment on the Flex ma-
chine is adjusted by installing the cutting unit drive pul-
leys (items 8, 11 and 14) to the appropriate locations on
the reel drive assembly (see Cutting Unit Clip Adjust-
ment in the Adjustments section of this chapter).
