12 Volt Battery Service
The battery is the heart of the electrical system. With
regularandproperservice,batterylifecanbeextended.
Additionally, battery and electrical component failure
can be prevented.
CAUTION
When working with batteries, use extreme cau-
tion to avoid splashing o r spilling electrolyte.
Electrolytecandestroyclothingandburnskinor
eyes. Always wear safety goggles and a face
shield when working with batteries.
Greensmaster 3320 Battery Specifications
BCI Group U1 Battery
300 Amp Cranking Performance at 0
o
F(--18
o
C)
28 minute Reserve Capacity at 80
o
F(27
o
C)
Electrolyte Specific Gravity (fully charged): from 1.250
to 1.280
Electrolyte Specific Gravity (discharged): 1 .240
Greensmaster 3420 Battery Specifications
BCI Group 55 Battery
585 Amp Cranking Performance at 0
o
F(--18
o
C)
95 minute Reserve Capacity at 80
o
F(27
o
C)
Electrolyte Specific Gravity (fully charged): from 1.250
to 1.280
Electrolyte Specific Gravity (discharged): 1 .240
Battery Removal (Fig. 95 or 96)
IMPORTANT: Be careful to not damage terminal
posts or cable connectors when removing the bat-
tery cables.
1. Park machine on level surface, lower cutting units,
stop engine, apply parking brake and remove key from
ignition switch.
2. Disconnect the negative cable (--) from the battery
first to prevent short circuiting the battery, other compo-
nentsortheoperatorshands.Thendisconnecttheposi-
tive (+) cable.
3. Removefastenersandretainercomponentsthatse-
cure battery to frame.
4. Make sure that the battery filler caps are on tightly.
5. Remove battery from the battery compartment and
move battery to a service area. This will minimize pos-
siblebatterydamageandallowbetteraccessforbattery
inspection and service.

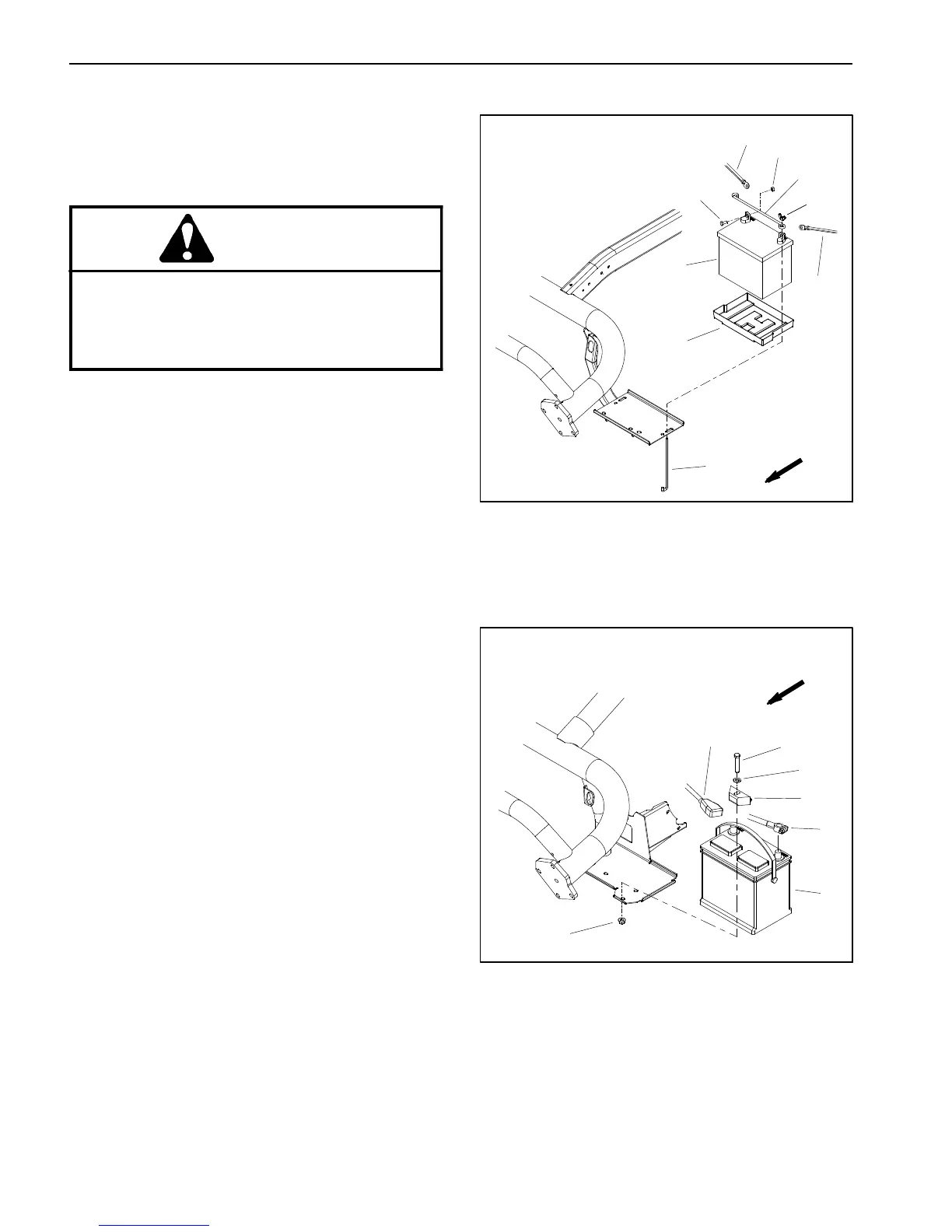

Figure 95
1. Battery
2. Hold down rod
3. Post (2 used)
4. Battery tray
5. Wing nut (2 used)
6. Hex nut (2 used)
7. Cap screw (2 used)
8. Positive battery cable
9. Negative battery cable
7
2
3
1
5
4
6
8
9
GREENSMASTER 3320
FRONT
Figure 96
1. Battery
2. Battery retainer
3. Flat washer
4. Cap screw
5. Flange nut
6. Positive battery cable
7. Negative battery cable
GREENSMASTER 3420
2
5
1
4
3
7
6
FRONT
