Separating Cutting Unit From Traction Unit
1. Position machine on level surface, lower cutting unit
to floor, move lift lever to float position, shut engine off
and engage parking brake.
2. Remove the capscrews, flatwashers and locknuts
securing the ball joint mounts to castor arms on cutting
unit.
3. Roll cutting unit away from the traction unit separat-
ing male and female sections of PTO shaft.
DANGER
D
ting unit gear box may result in serious
D
gear box on cutting unit.
Starting engine and engaging PTO lever
when PTO shaft is not connected to cut-
personal injury.
Do not start engine and engage PTO le-
ver when PTO shaft is not connected to
Mounting Cutting Unit to Traction Unit
1. Position machine on a level surface and shut engine
off.
2. Move cutting unit into position in front of traction
unit.
3. Slide male PTO shaft into female PTO shaft.
1

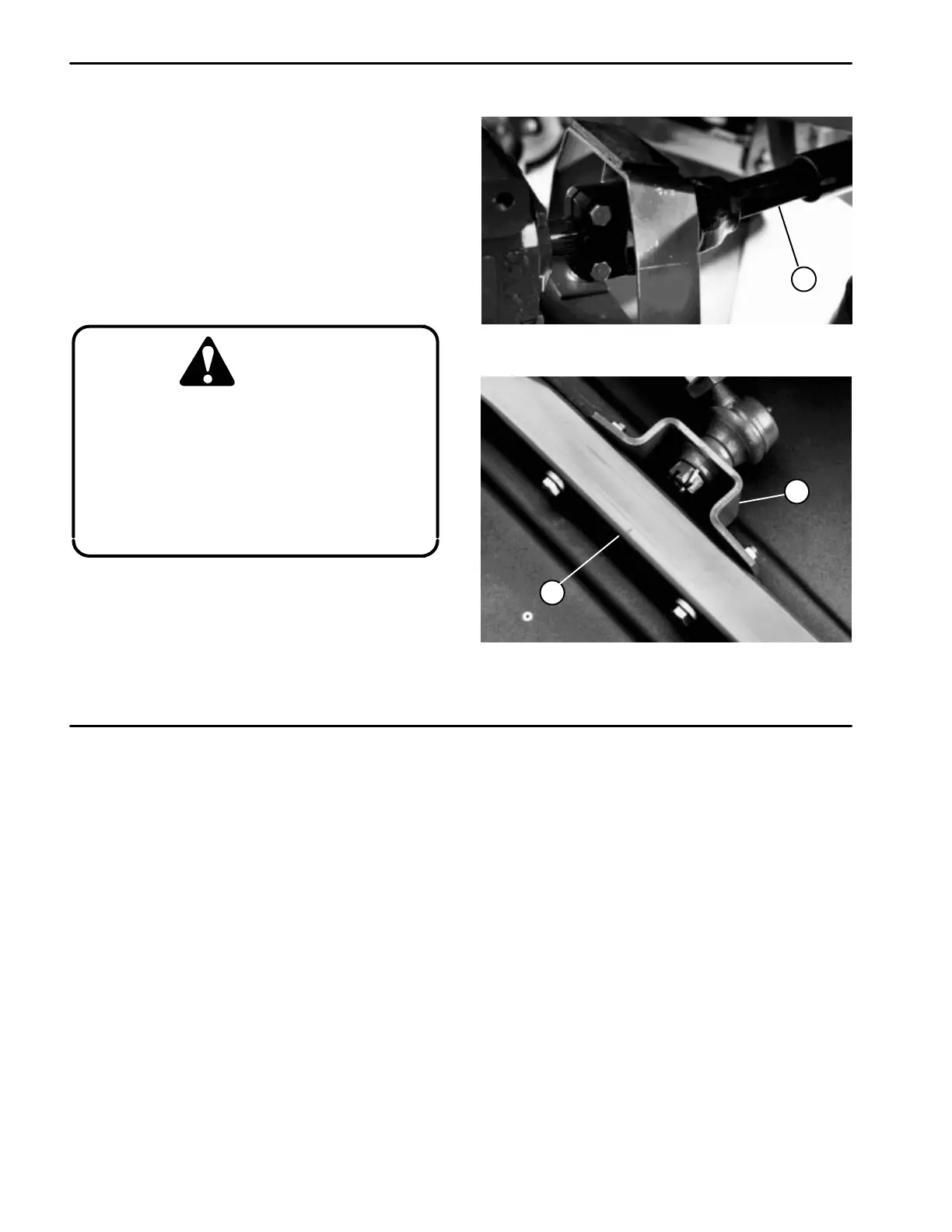

Figure 9
1. PTO Shaft
2
1
Figure 10
1. Castor Arm
2. Ball Joint Mount
4. Move lift lever to FLOAT position. Push lift arms
down until holes in ball joint mounts line up with holes in
castor arms.
5. Secure ball joint mounts to castor arms with caps-
crews, flatwashers and flange nuts. Flatwashers to be
positioned
to outside of castor arm.
Guardian 62 Recycler Cutting Unit
Page 15 – 10
