Toro Groundsmaster 4700-D - Cutting Deck Carrier Frame

Groundsmaster 4500 --D/4700--DCutting Decks Page 8 -- 18

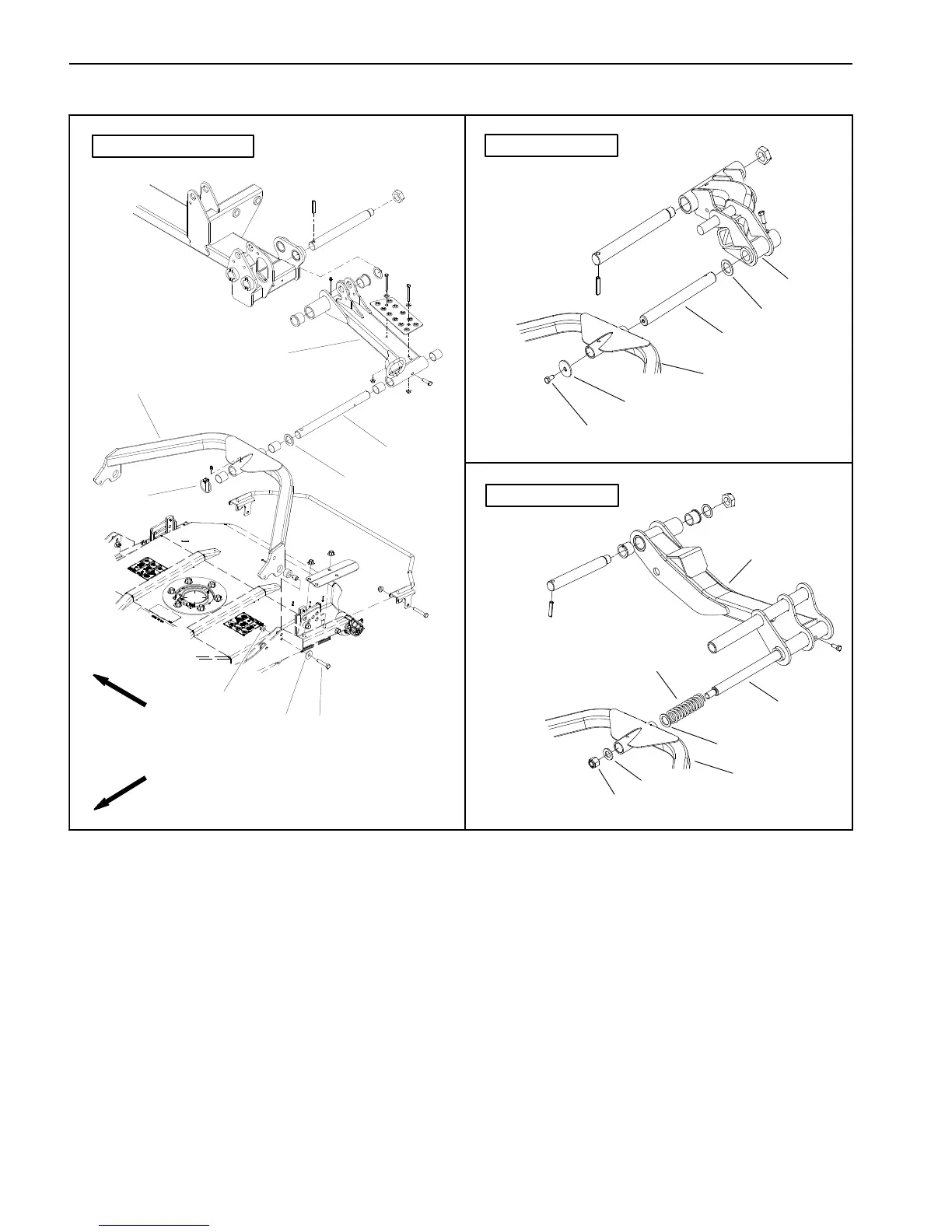

Cutting Deck Carrier Frame
1. Carrier frame
2. Lynch pin
3. Thrust washer
4. Pivot shaft
5. Lift arm (#4 shown)
6. Flange nut (2 used per deck)
7. Hardened washer (2 used per deck)
8. Cap screw (2 used per deck)
9. Cap screw
10. Rebound washer
11. Pivot shaft
12. Lift arm (#2 shown)
13. Lock nut
14. Flat washer
15. Compression spring
16. Pivot shaft
17. Lift arm (#6 shown)
Figure 19
FRONT
RIGHT
Decks#2and#3
Decks#6and#7
Decks #1, #4 and #5
3
1
9
14
12
13
3
1
11
10
2
4
3
1
5
6
7
8
15
16
17
