HYDRO-GEAR TRANSAXLE
TimeCutter

Z Service Manual 4 - 5

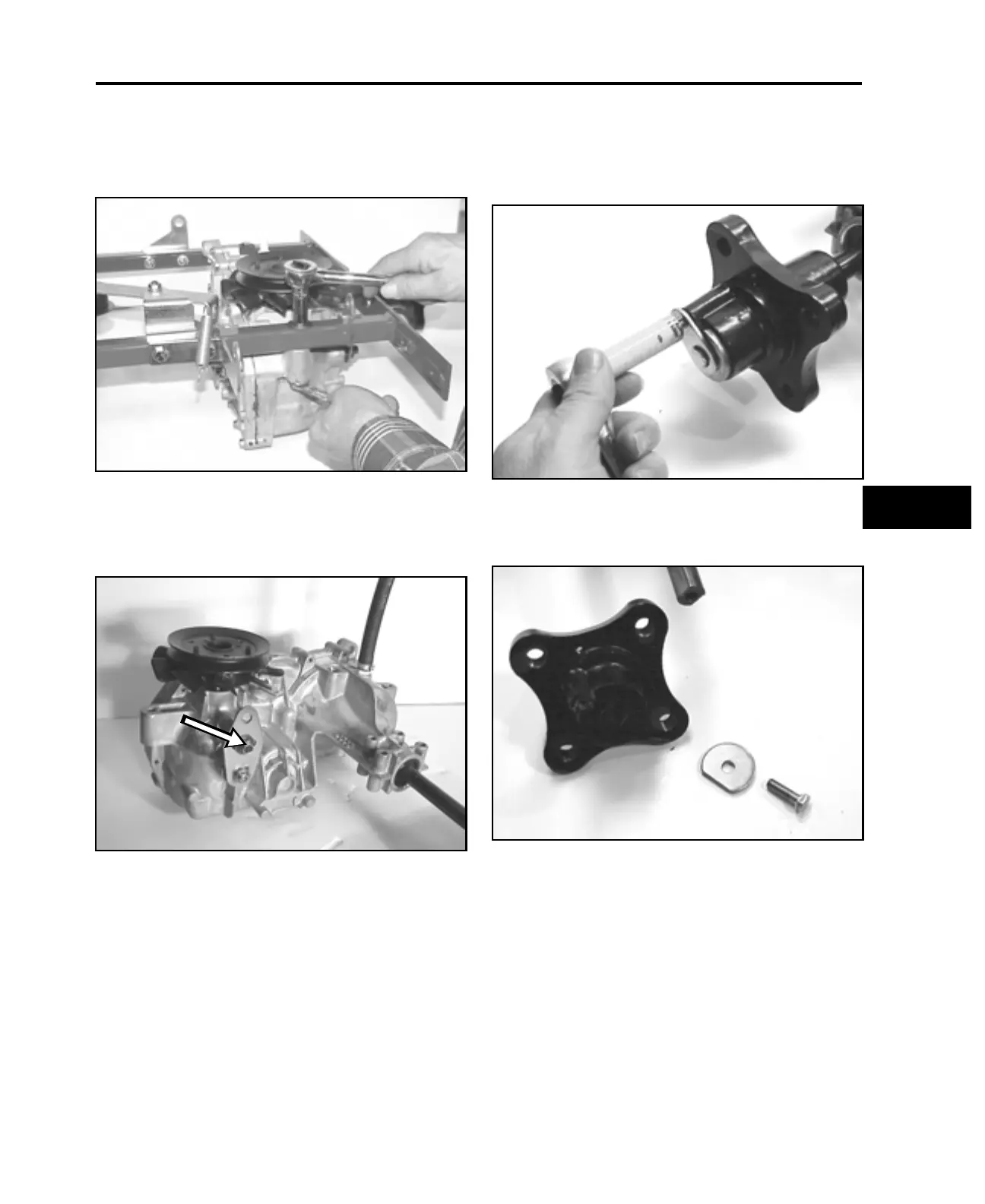

2. Remove the two bolts, washers, and nuts
securing the transaxle to the hydro frame and
remove the transaxle from the hydro frame (Figure
39).
Figure 39
mvc-110
3. NOTE: If you are replacing the transaxle, after
installing the hydro rods, remove the nut and
washer on the cam plate (Figure 40).
Figure 40
mvc-206
Assembly
Reverse the order of removal.
Wheel Hub Removal
1. Remove the bolt holding the locking tab to the hub
(Figure 41).
Figure 41
mvc-111
2. Remove the center hub bolt and washer. Slide
the hub off the axle shaft (Figure 42).
Figure 42
mvc-113
Installation Wheel Hub
Reverse the order of removal. Apply anti-seize
lubricant on the axle and apply Loctite 242 to the
threads of the bolt holding the locking tab and tighten.
