HYDRO-GEAR TRANSAXLE
TimeCutter
Z Service Manual 4 - 7

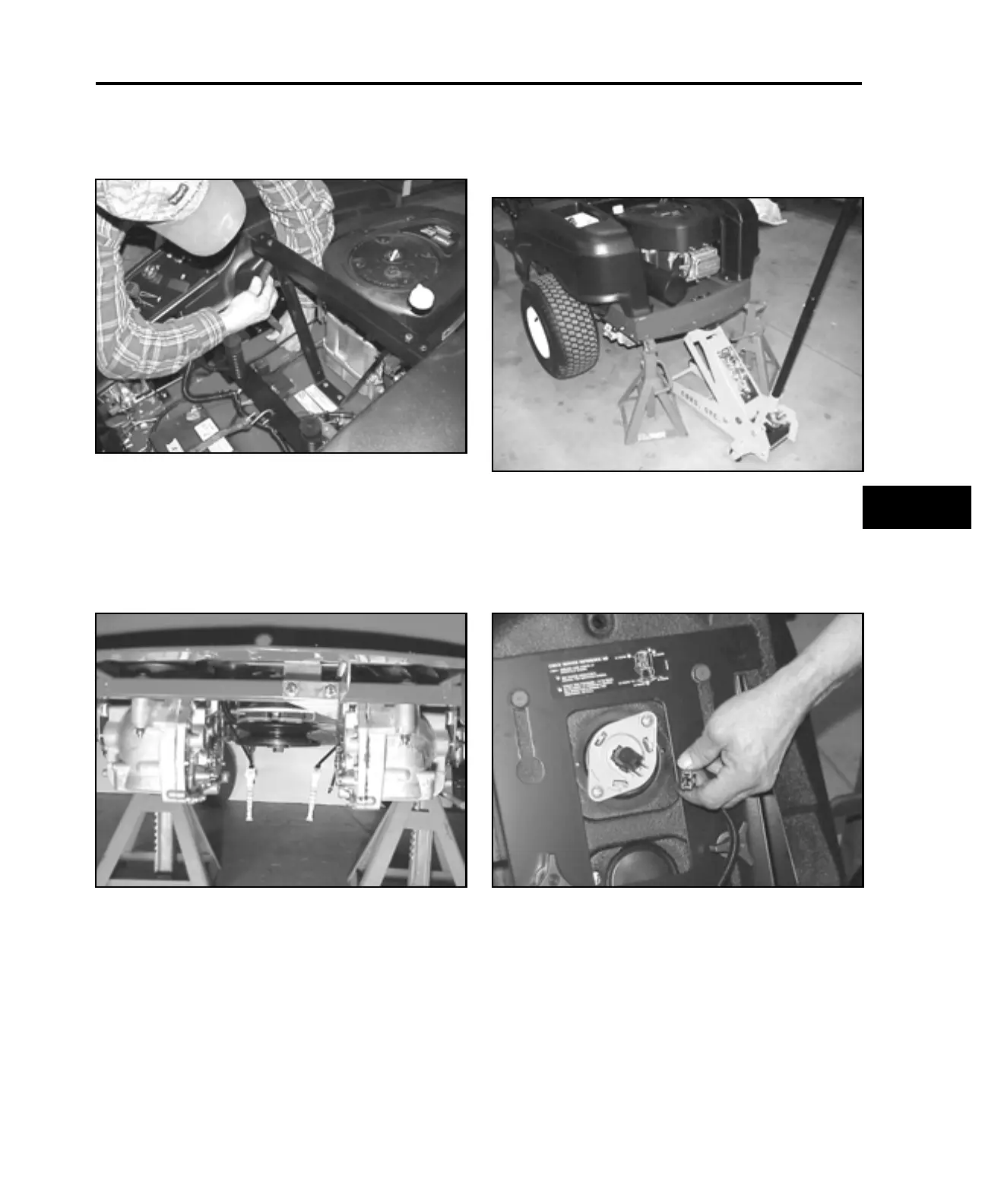

6. Install the transaxle vent tubes to the transaxles.
Make sure the protective caps fit under the rear
bracket support (Figure 47).
Figure 47
mvc-116
7. Install transaxle drive belts. Refer to “Belt
Installation” on page 3 - 8.
8. Leave the two brake arms disconnected from the
transaxles. Make sure the brake arms are clear of
the cog brake discs (Figure 48).
Figure 48
mvc-735
9. Put a floor jack under the frame and raise the unit.
Remove the floor jack stands and install the right
and left rear tires. For stability, position the floor
jack stands at the rear of the unit (Figure 49).
Figure 49
mvc-128
10. Connect the negative battery cable.
11. Unplug the seat switch and temporarily connect a
jumper wire across the plug connector on the
harness (Figure 50).
Figure 50
mvc-130
12. NOTE: When installing a new transaxle in the
machine or if any work was performed internally
on the transaxle or if the oil was changed, make
sure the system is purged prior to doing any
neutral adjustment. Refer to “Purging Procedures
– Hydro-Gear Transaxles” on page 4 - 8.
4
