HYDRO-GEAR TRANSAXLE
TimeCutter
Z Service Manual 4 - 15

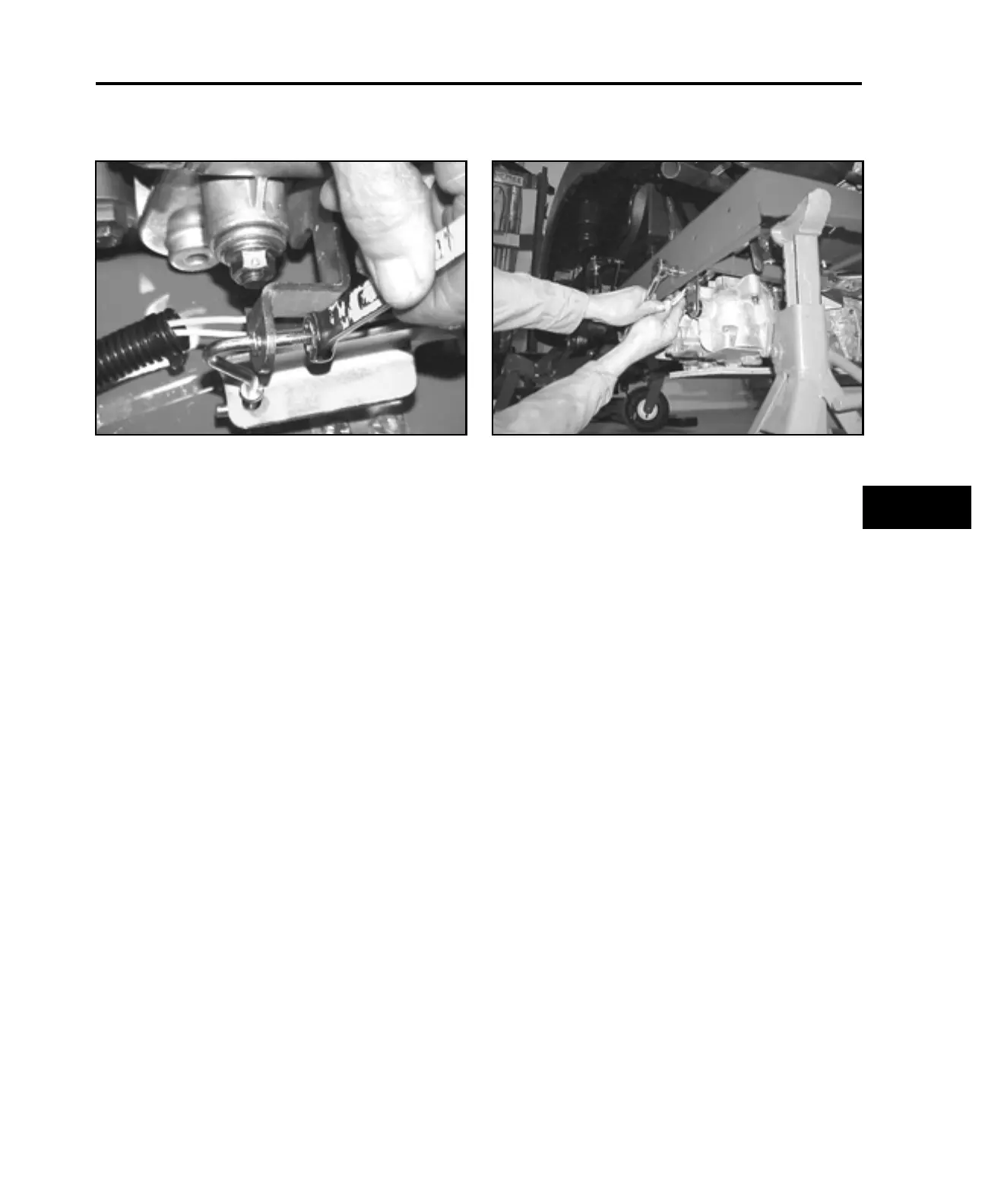

4. Install the brake link to the bellcrank with a nut and
tighten (Figure 75).
Figure 75
mvc-162
5. Connect the rear of the hydro rod to the transaxle
control arm and tighten (Figure 76).
Figure 76
mvc-103
6. Install the hydro rod to the actuator.
4
