Toro Plus Series Satellite User Manual

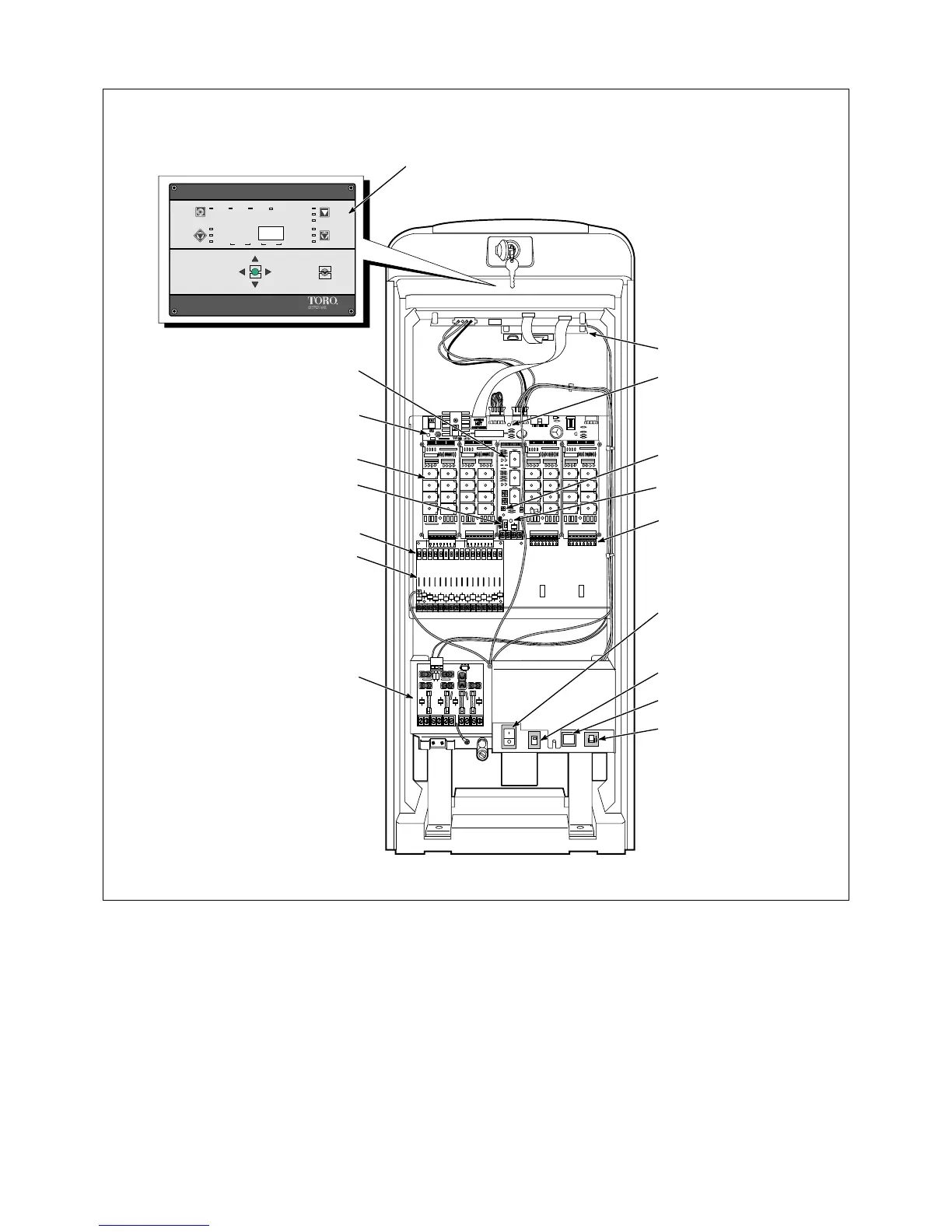

CONTROLLER COMPONENTS
2
Address
% Adjust
Time/Day
Week 1
Central
Stand
Alone
Off
Cycle
Syringe
Multi
Manual
Start
Times
Active
Days
Run
Times
ENTER
START
EXIT
STOP
1 2 3 4 5 6 7
8 9 10 11 12 13 14
Week 2
R
LTC
TM
Tu
Programs
Plus
1. Control Panel Assembly
2. Pump/Common Output Module
3. Power Indicator Lamp – (5V) Control Functions
4. 8-Station Output Module
5. Pump/Master Valve Control Switch
6. Optional Station Output Control Switches
7. Optional Station Output Surge Protection Module
8. Optional Communication & Pump/Common
Surge Protection Module (Optional)
9. Optional Communications Modem
10. Power Indicator Lamp – (28V) Station Output
11. Field Common Engage Push-Button Switch
12. Field Common Indicator Lamp
13. Standard 8-Station Terminal Block
14. Main Power On/Off Switch/1.5A Circuit Breaker
15. Input Voltage Select Switch
16. 3.2A Fuse – Station Output
17. 4.0A Circuit Breaker – Control Functions
(Plastic cabinet model shown)
9
1
3
2
10
11
12
4
5
6
7
8
17
16
15
14
13
